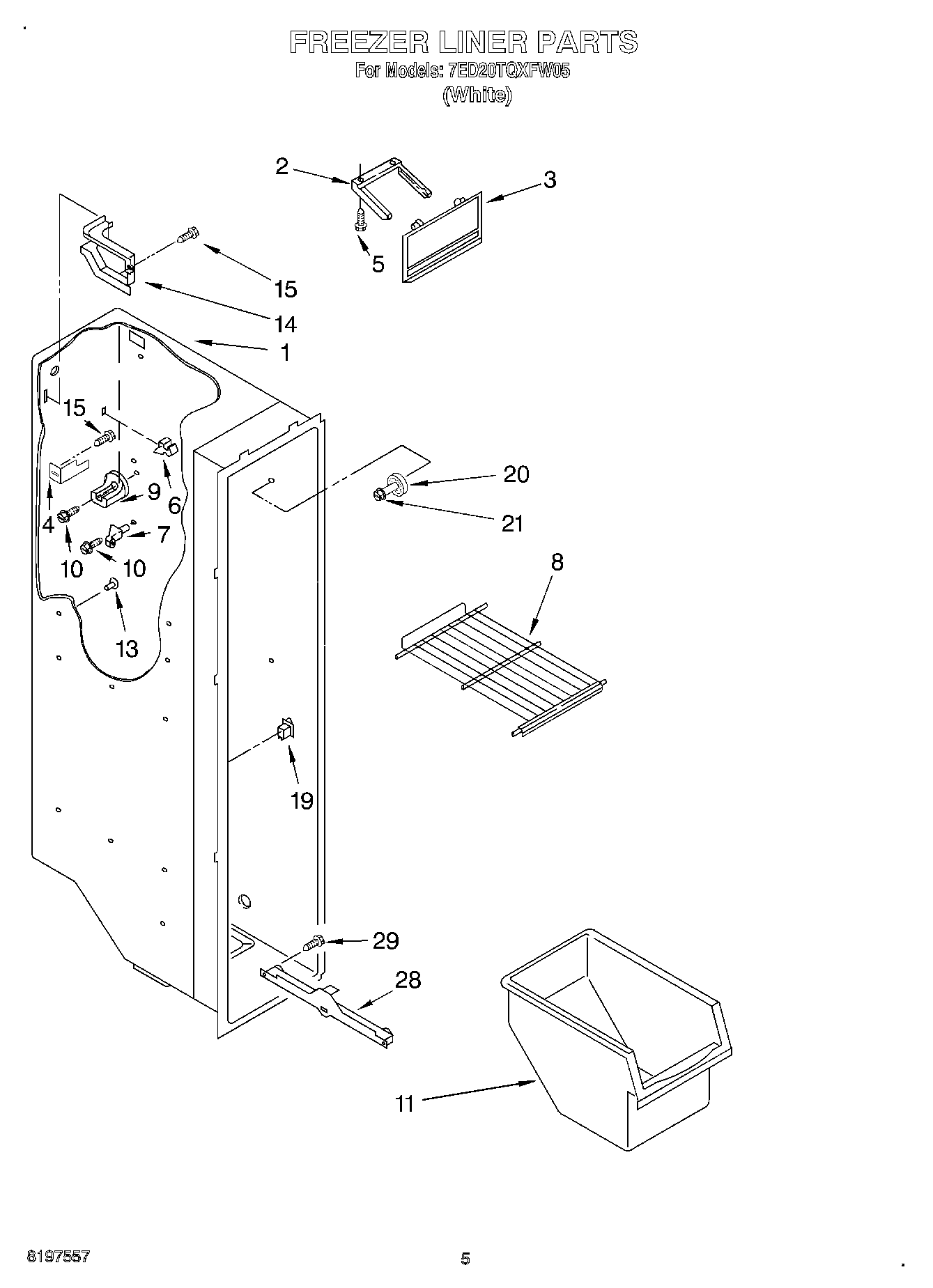

7ED20TQXFW05 03 – FREEZER LINER

7ED20TQXFW05 03 – FREEZER LINER

Written by

in

7ED20TQXFW05 03 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
4Bracket, Fill Tube
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Shelf (2)
8Shelf (1)
9Stud, Rear
10W10142289 Whirlpool Air Conditioner Screw
11Bin, Freezer
13Grommet
14Cover, Wiring
15SCREW
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20WP2196483 Whirlpool Refrigerator Shelf Stud
21WP3400806 Whirlpool Screw
28Slide, Basket (Left Side)
28W10845583 Whirlpool Refrigerator Track
29718257 Whirlpool Dishwasher Screw
