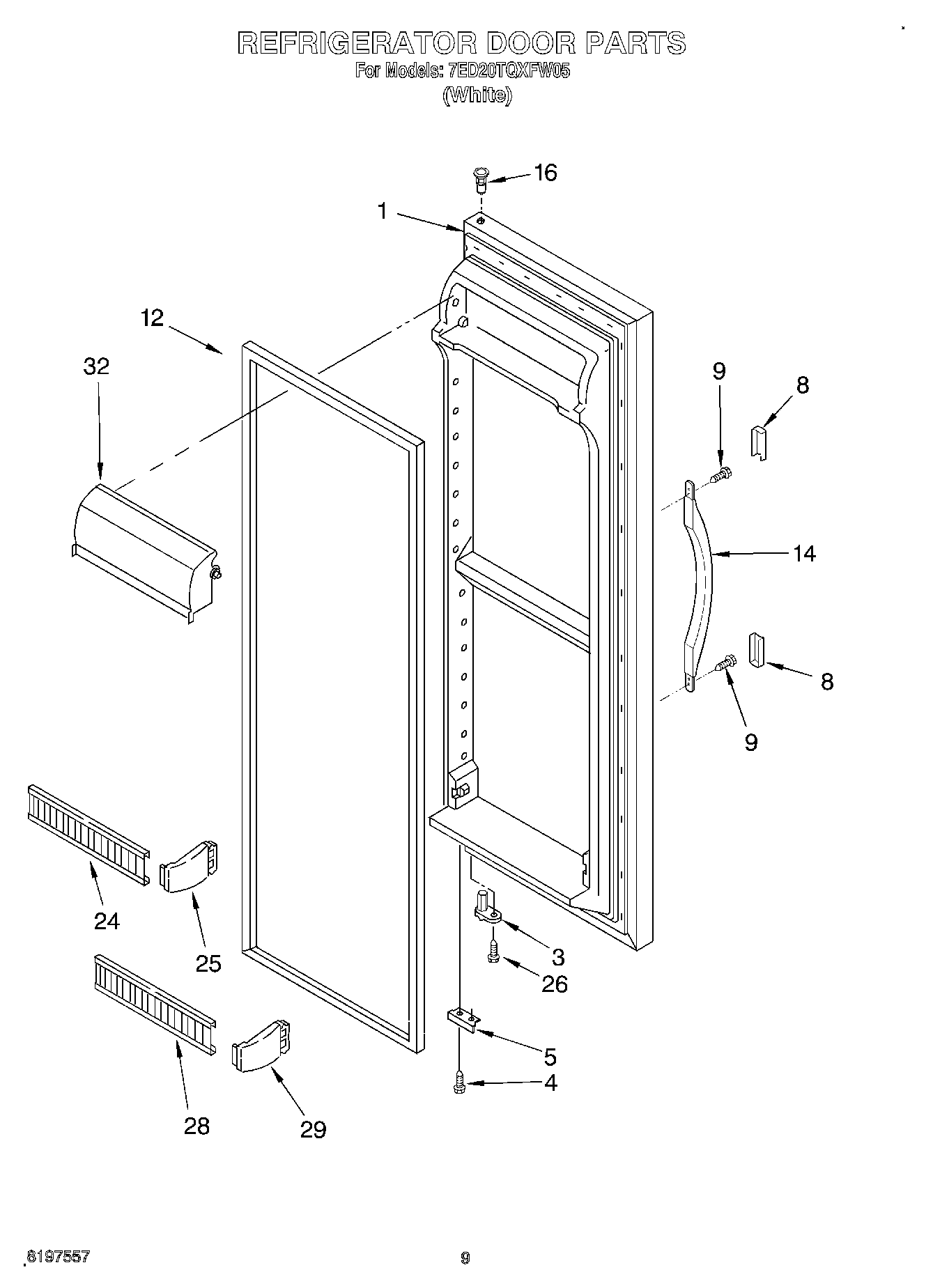

7ED20TQXFW05 06 – REFRIGERATOR DOOR

7ED20TQXFW05 06 – REFRIGERATOR DOOR

Written by

in

7ED20TQXFW05 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (White)
3WP2182179 Whirlpool Cam Closer
4WP489483 Whirlpool Screw
5Bracket, Door Stop (Chrome)
8WP2193353W Whirlpool Refrigerator Trim Handle
9WP489491 Whirlpool Refrigerator Screw
122159073 Whirlpool Refrigerator Door Gasket
14Handle, Center (White)
16WP2182181 Whirlpool Refrigerator Thimble
24Trim, Door (1)
25WP2195915 Whirlpool Door Shelf Support
26WP3400012 Whirlpool Refrigerator Screw
28WP2256010 Whirlpool Door Shelf Trim
29ENDCAP
32WP2256101 Whirlpool Dairy Door
