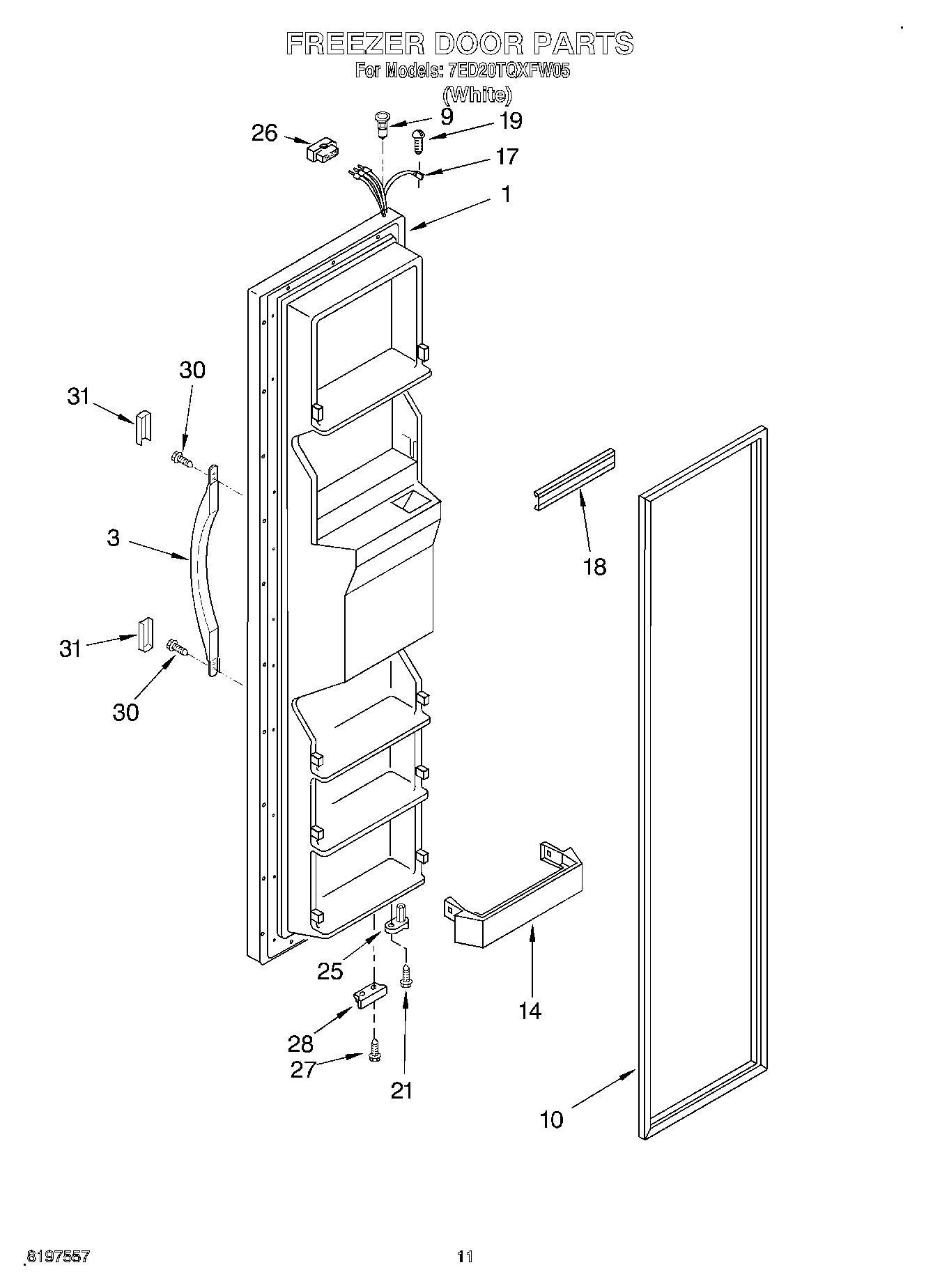

7ED20TQXFW05 07 – FREEZER DOOR

7ED20TQXFW05 07 – FREEZER DOOR

Written by

in

7ED20TQXFW05 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.6 And Dispenser Front Parts) (White)
3Handle, Center (White)
9WP2182181 Whirlpool Refrigerator Thimble
102159072 Whirlpool Refrigerator FIP Gasket
14WP2156021 Whirlpool Refrigerator Door Trim
17Wire Harness
18WPW10307490 Whirlpool Door Trim Assembly
19WP489128 Whirlpool Refrigerator Screw
21WP3400012 Whirlpool Refrigerator Screw
25WP2182179 Whirlpool Cam Closer
26WP2154473 Whirlpool Refrigerator Connector
27WP489483 Whirlpool Screw
28Bracket, Door Stop (Chrome)
30WP489491 Whirlpool Refrigerator Screw
31WP2193353W Whirlpool Refrigerator Trim Handle
