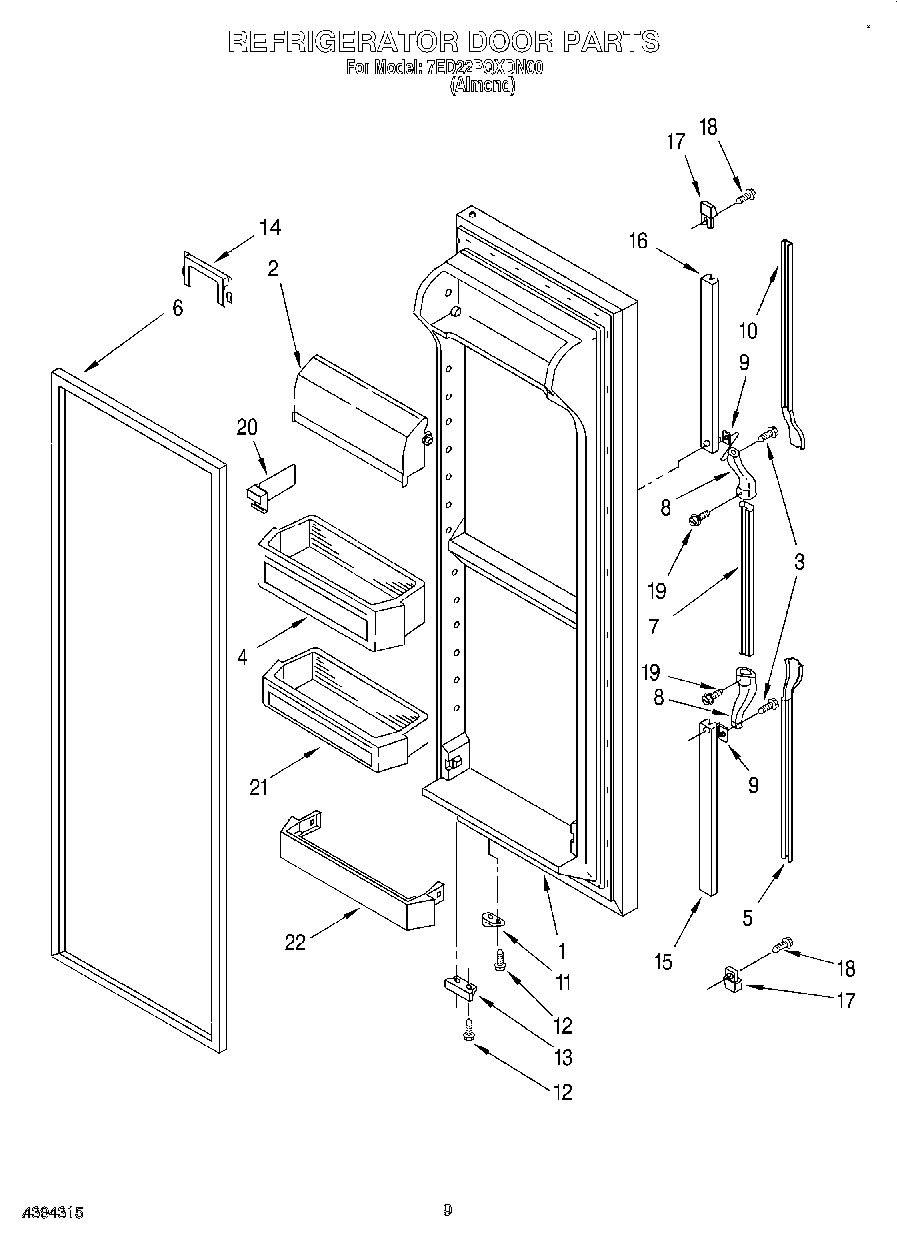

7ED22PQXDN00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item No.8) (Almond)
2	WP2256101 Whirlpool Dairy Door
3	WP489463 Whirlpool Refrigerator Screw
4	Shelf Bin (2)
5	Insert, Handle (Almond)
6	2159073 Whirlpool Refrigerator Door Gasket
7	Handle, Center (Almond)
8	End Cap, Center Handle
9	Shim
10	Insert, Handle (Almond)
11	4318165 Whirlpool Refrigerator Door Closure Cam Kit
12	WP489483 Whirlpool Screw
13	Bracket, Door Stop
14	Retainer, Bottle
15	Retainer, Insert (Bottom)
16	Retainer, Insert
17	End Cap (2)
18	Screw
19	Screw
20	Divider (3)
21	Shelf Bin
22	WP2177962K Whirlpool Refrigerator Door Trim
