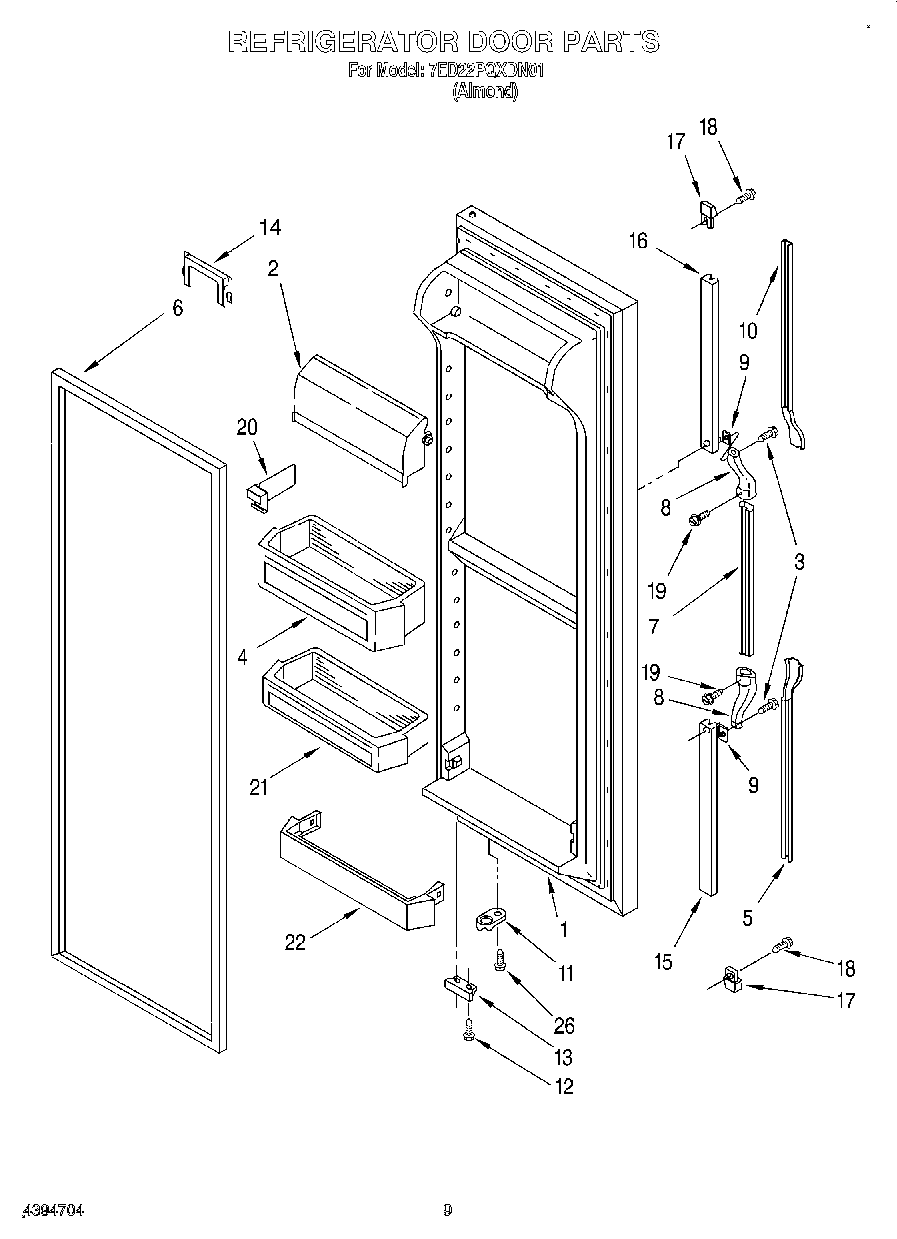

7ED22PQXDN01 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Almond)
2	WP2256101 Whirlpool Dairy Door
3	WP489463 Whirlpool Refrigerator Screw
4	Shelf Bin (2)
5	Insert, Bottom (Almond)
6	2159073 Whirlpool Refrigerator Door Gasket
7	Handle, Center (Almond)
8	End Cap, Center Handle
9	Shim
10	Insert, Top (Almond)
11	4318165 Whirlpool Refrigerator Door Closure Cam Kit
12	WP489483 Whirlpool Screw
13	Bracket, Door Stop (Chrome)
14	Retainer, Bottle
15	Retainer, Bottom
16	Insert Retainer (Top)
17	End Cap (2)
18	Screw
19	Screw
20	Divider
21	Shelf Bin
22	WP2177962K Whirlpool Refrigerator Door Trim
26	WP3400012 Whirlpool Refrigerator Screw
