7ED22PQXDN01 12 – CONTROL, LIT/OPTIONAL

7ED22PQXDN01 12 – CONTROL, LIT/OPTIONAL

Written by

in

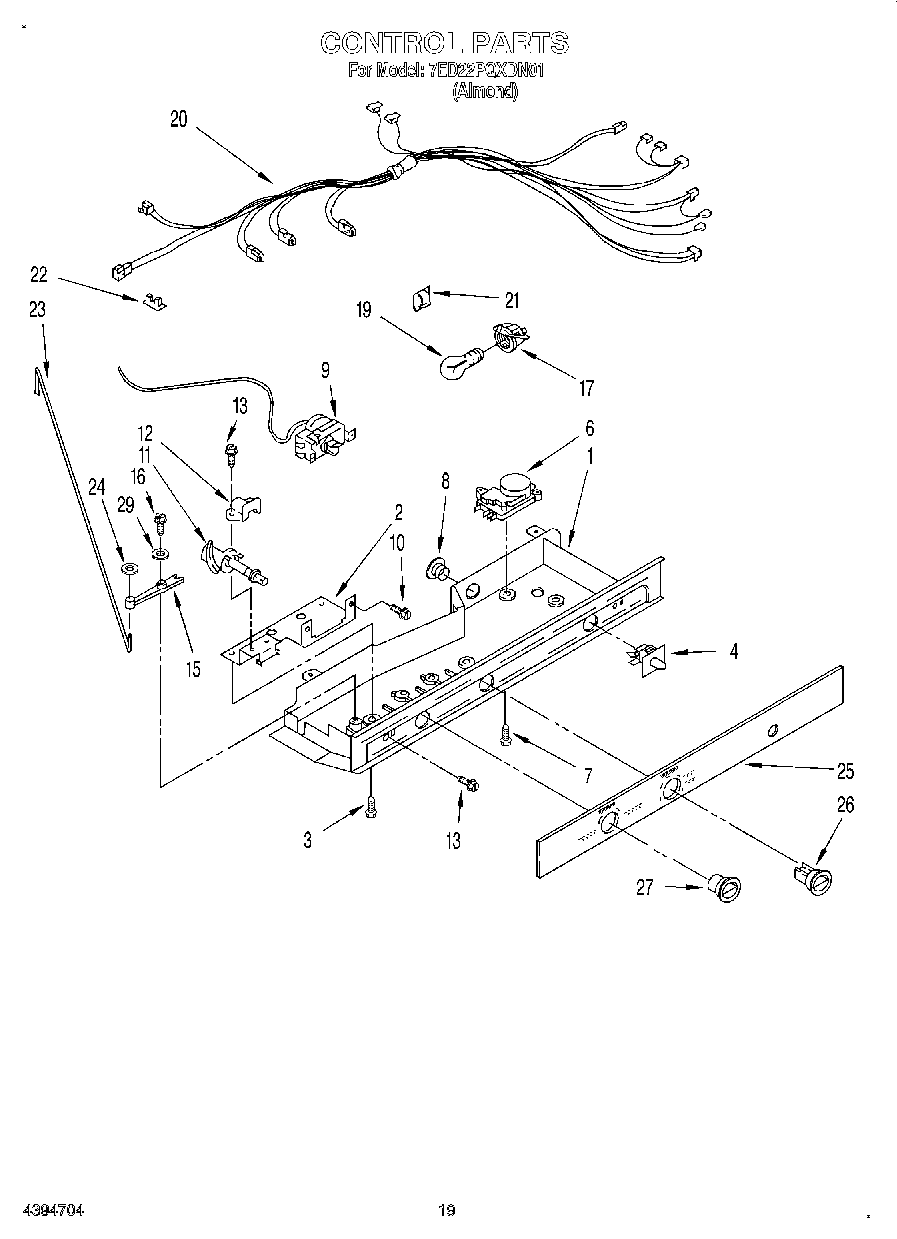

7ED22PQXDN01 12 – CONTROL, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2182559
WPL LIT2176838
WPL LIT2195052
Modular Icemaker Service Sheet
Torx Key
1Control Box
2Mounting Bracket
3Screw (2)
4WP2149705 Whirlpool Refrigerator Door Switch
6Defrost Timer (10 Hr.)
7489392 Whirlpool Refrigerator Screw
8940014 Whirlpool Refrigerator Primary Button Plug
9WP2196003 Whirlpool Refrigerator Bar Riser
10WP965173 Whirlpool Dishwasher Screw
11Cam Assembly
121110560 Whirlpool Refrigerator Bearing
13WP489478 Whirlpool Refrigerator Screw
15Pivot Arm
16627068 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
19RANGE ONLY 40W 120V APPL BULB
20Control Box Harness
21WP1115374 Whirlpool Refrigerator Clip
22CLIP, WIRING
23Connecting Rod
24Fastener, Push-On
25Escutcheon, Control Box
262182111 Whirlpool Refrigerator Thermal Knob
27Knob, Air Control
29Almond (Uncut)
29Enamel, Black (1 Qt. Uncut)
29350930 Whirlpool White Spray Paint
29WPW10312301 Whirlpool Refrigerator Ice Container
29WP72107 Whirlpool Touchup
29799344 Whirlpool Refrigerator Paint
2972017 Whirlpool Appliance Touch-Up Paint White
29350956 Whirlpool Spray Assembly
29212643 Whirlpool Refrigerator Permagum Sealer
29350942 Whirlpool Spray Paint
29511873 Whirlpool Refrigerator Paint
29WPL 799833
29WPL 876029
29CEMENT, ALUMILASTIC (1 1/4 OZ.)
29TAPE, VINYL (3/4 X 108“)
29285006 Whirlpool Spray
2972032 Whirlpool Touch Up Paint Black
29WP542638 Whirlpool Refrigerator Grease
29WP505587 Whirlpool Refrigerator Sealer
29WP503695 Whirlpool Refrigerator Sealer
29876370 Whirlpool Refrigerator Insulation
29833938 Whirlpool Refrigerator Terminal
29606755 Whirlpool Refrigerator Bag
29489203 Whirlpool Refrigerator Washer
