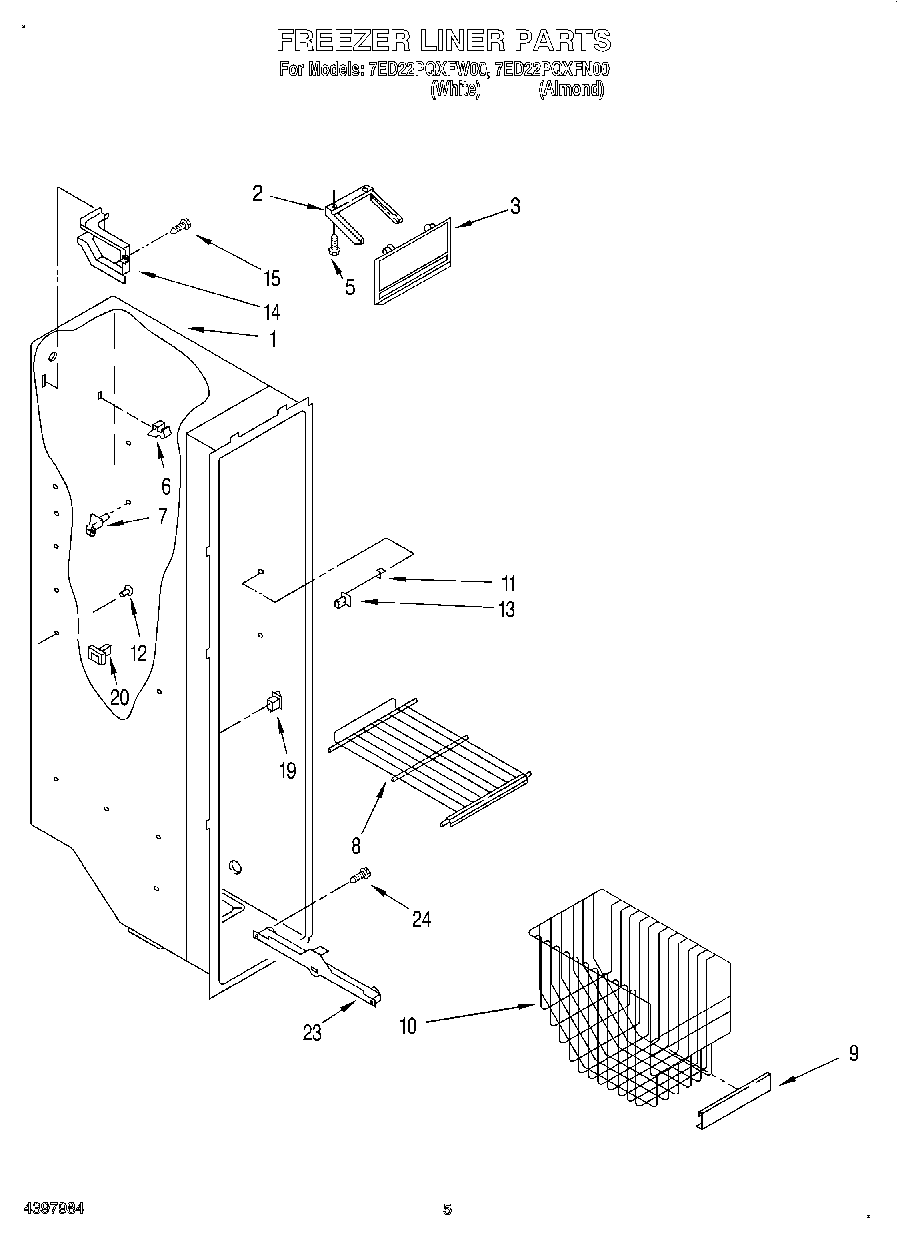

7ED22PQXFN00 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Ice Door
3	2171712 Whirlpool Refrigerator Ice Door
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Shelf (2)
8	WP2174249K Whirlpool Refrigerator Wire Shelf
9	2195904K Whirlpool Refrigerator Basket Trim
10	Freezer Bin
11	Stud, Support
12	Grommet
13	Stud, Front R.S.
14	Cover, Wiring
15	SCREW
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	Stud, Rear R.S.
23	Slide, Basket (Right Side (2))
23	Slide, Basket (Left Side (2))
24	W11693756 Whirlpool Screw Assembly
