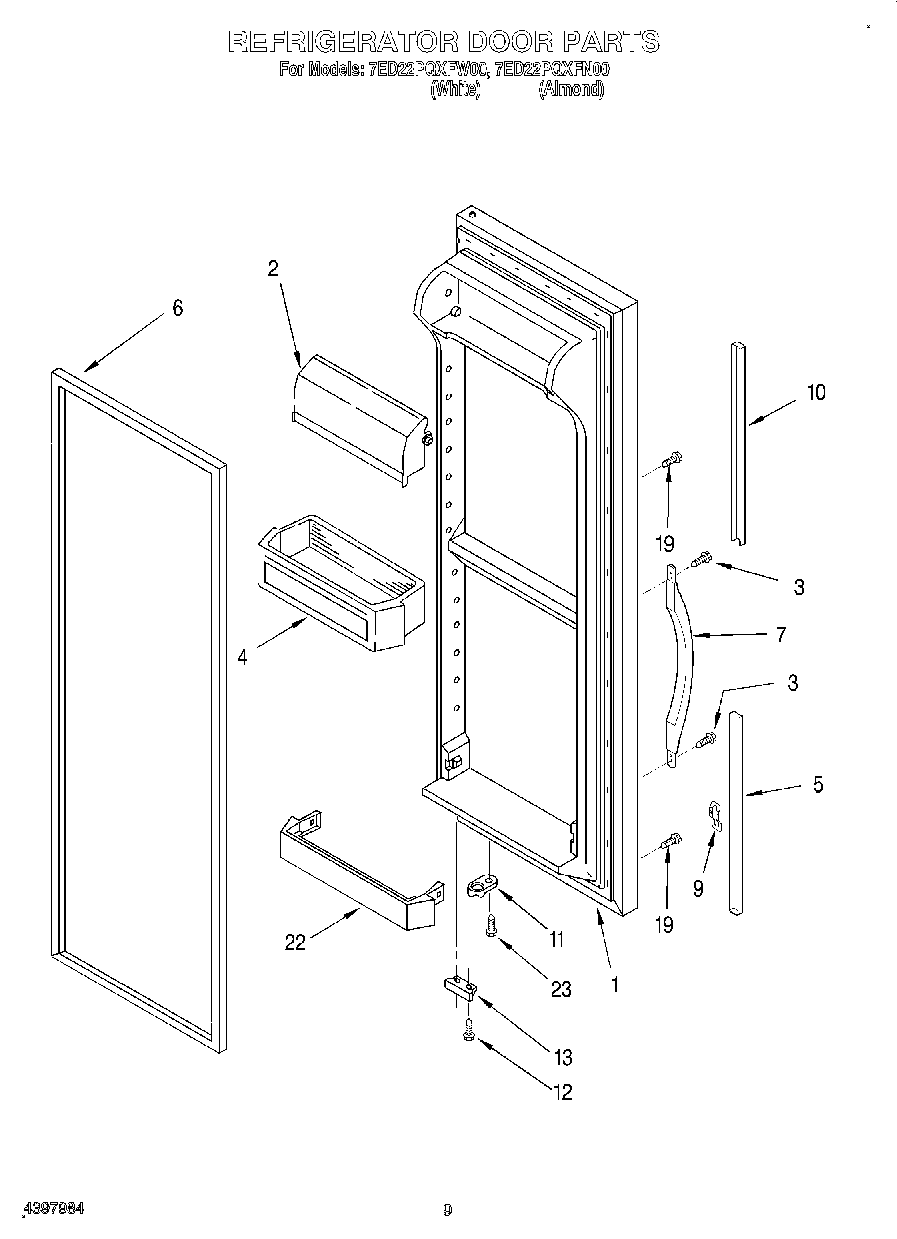

7ED22PQXFN00 07 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (White)
1Refrigerator Door (Includes Item 6) (Almond)
2WP2256101 Whirlpool Dairy Door
3WP489491 Whirlpool Refrigerator Screw
4Shelf Bin (3)
5Extension, Bottom (Almond)
5Extension, Bottom (White)
62159073 Whirlpool Refrigerator Door Gasket
7Handle, Center (Almond)
7Handle, Center (White)
9WP2195327 Whirlpool Refrigerator Clip
10Extension, Top (Almond)
10Extension, Top (White)
114318165 Whirlpool Refrigerator Door Closure Cam Kit
12WP489483 Whirlpool Screw
13Bracket, Door Stop (Chrome)
19WP3400852 Whirlpool Refrigerator Screw
22WP2177962K Whirlpool Refrigerator Door Trim
23WP3400012 Whirlpool Refrigerator Screw
