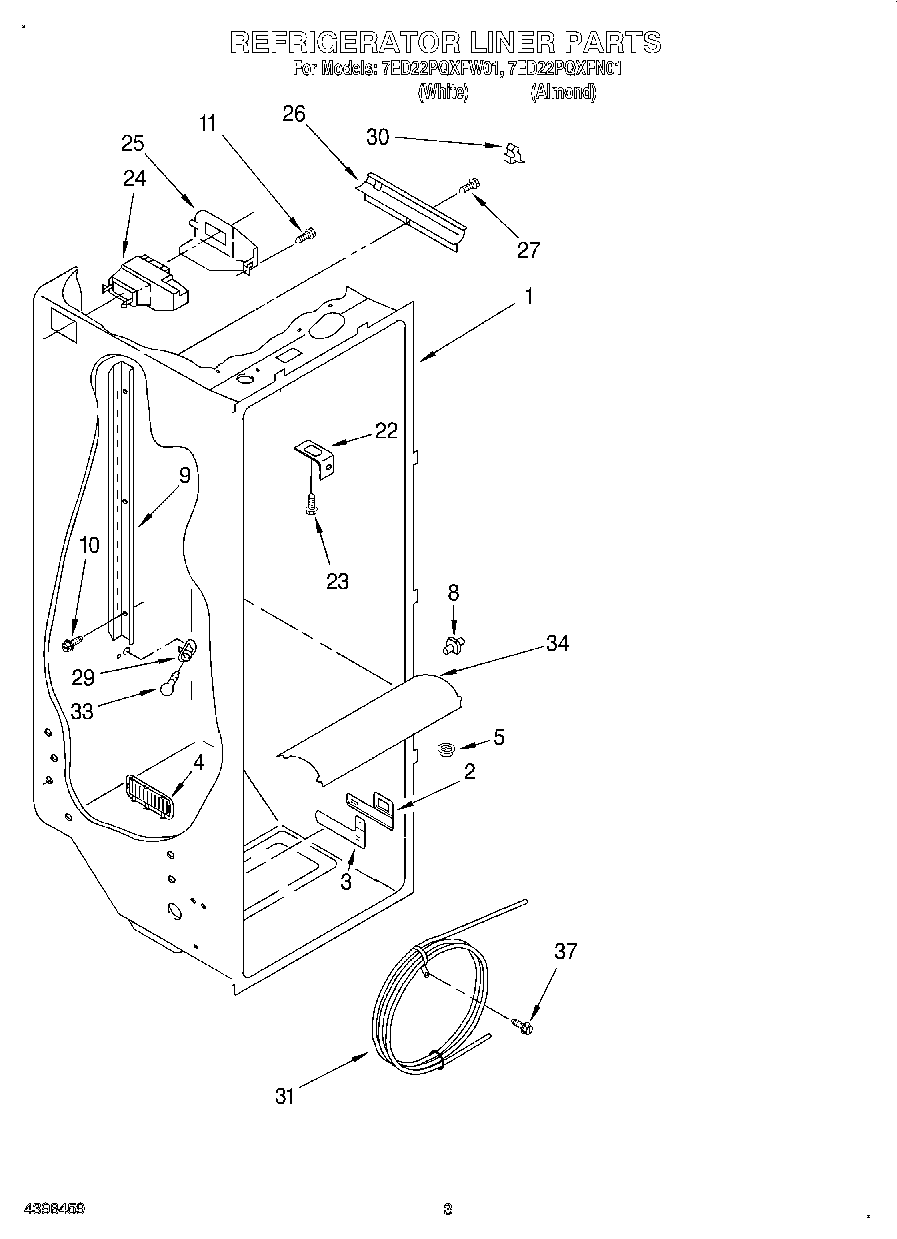

7ED22PQXFN01 02 – REFRIGERATOR LINER

7ED22PQXFN01 02 – REFRIGERATOR LINER

Written by

in

7ED22PQXFN01 02 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
52171846 Whirlpool Refrigerator Release Valve
84388538 Whirlpool Refrigerator Stud Shelf Kit (White)
9Ladder, Shelf
10WP488729 Whirlpool Refrigerator Door Screw
11WP489478 Whirlpool Refrigerator Screw
22WP2256085 Whirlpool Refrigerator Retainer
23WP488488 Whirlpool Refrigerator Screw
24WPW10151374 Whirlpool Refrigerator Diffuser
252152019 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
27W10759522 Whirlpool Screw
294387478 Whirlpool Refrigerator Light Socket
302215823 Whirlpool Refrigerator Clip
31WP2256126 Whirlpool Refrigerator Reservoir
33RANGE ONLY 40W 120V APPL BULB
34Light Lens
37Screw (2)
