7ED22PQXFN01 07 – REFRIGERATOR DOOR

7ED22PQXFN01 07 – REFRIGERATOR DOOR

Written by

in

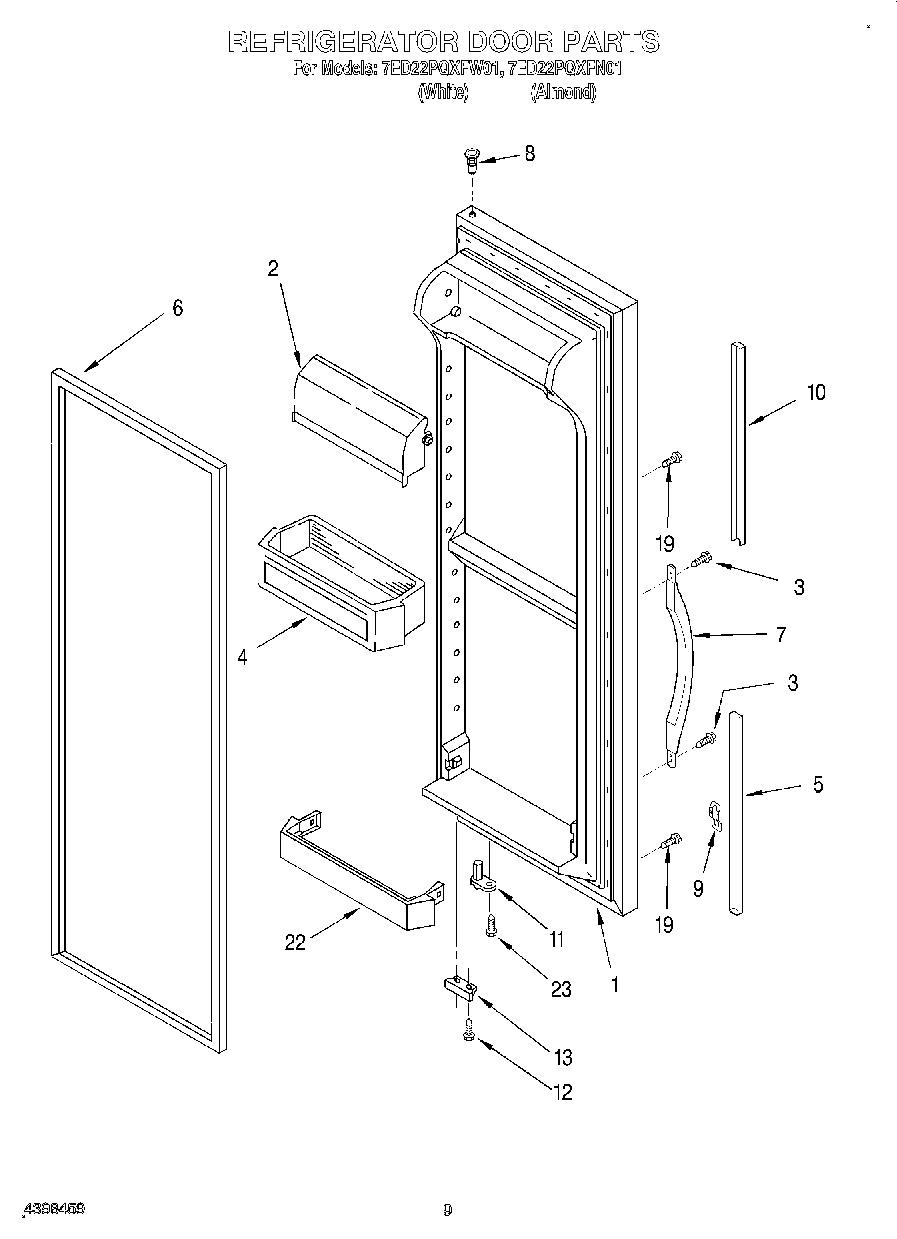

7ED22PQXFN01 07 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (White)
1Refrigerator Door (Includes Item 6) (Almond)
2WP2256101 Whirlpool Dairy Door
3WP489491 Whirlpool Refrigerator Screw
4WP2187172 Whirlpool Refrigerator Door Shelf Bin
5Extension, Bottom (Almond)
5Extension, Bottom (White)
62159073 Whirlpool Refrigerator Door Gasket
7Handle, Center (Almond)
7Handle, Center (White)
8WP2182181 Whirlpool Refrigerator Thimble
9WP2195327 Whirlpool Refrigerator Clip
10Extension, Top (White)
10Extension, Top (Almond)
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13Bracket, Door Stop (Chrome)
19WP3400852 Whirlpool Refrigerator Screw
22WP2177962K Whirlpool Refrigerator Door Trim
23WP3400012 Whirlpool Refrigerator Screw
