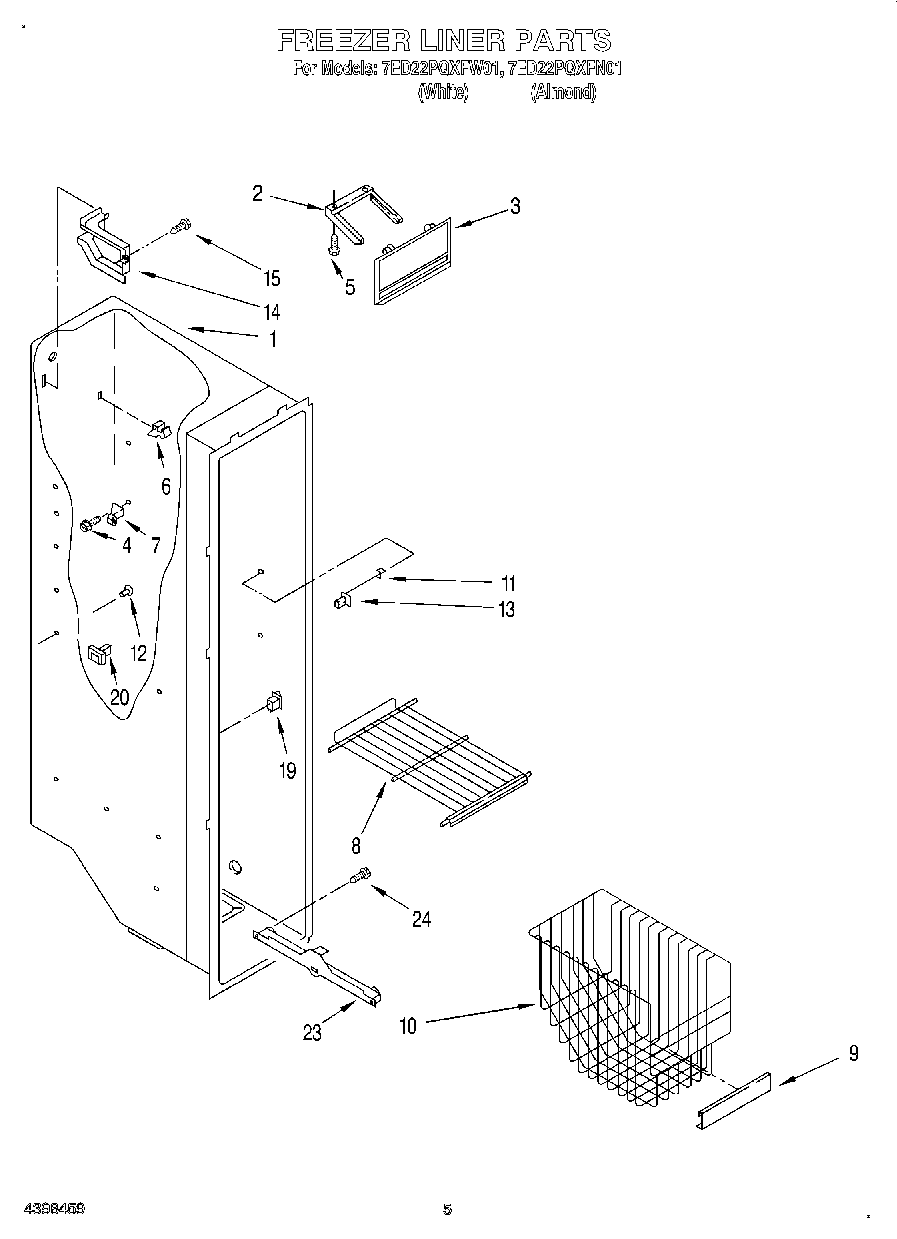

7ED22PQXFW01 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
4W10142289 Whirlpool Air Conditioner Screw
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Shelf (2)
8WP2174249K Whirlpool Refrigerator Wire Shelf
92195904K Whirlpool Refrigerator Basket Trim
10Freezer Bin
11Stud, Support
12Grommet
13Stud, Front R.S.
14Cover, Wiring
15SCREW
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20Stud, Rear R.S.
23Slide, Basket (Right Side (2))
23Slide, Basket (Left Side (2))
24W10759522 Whirlpool Screw
