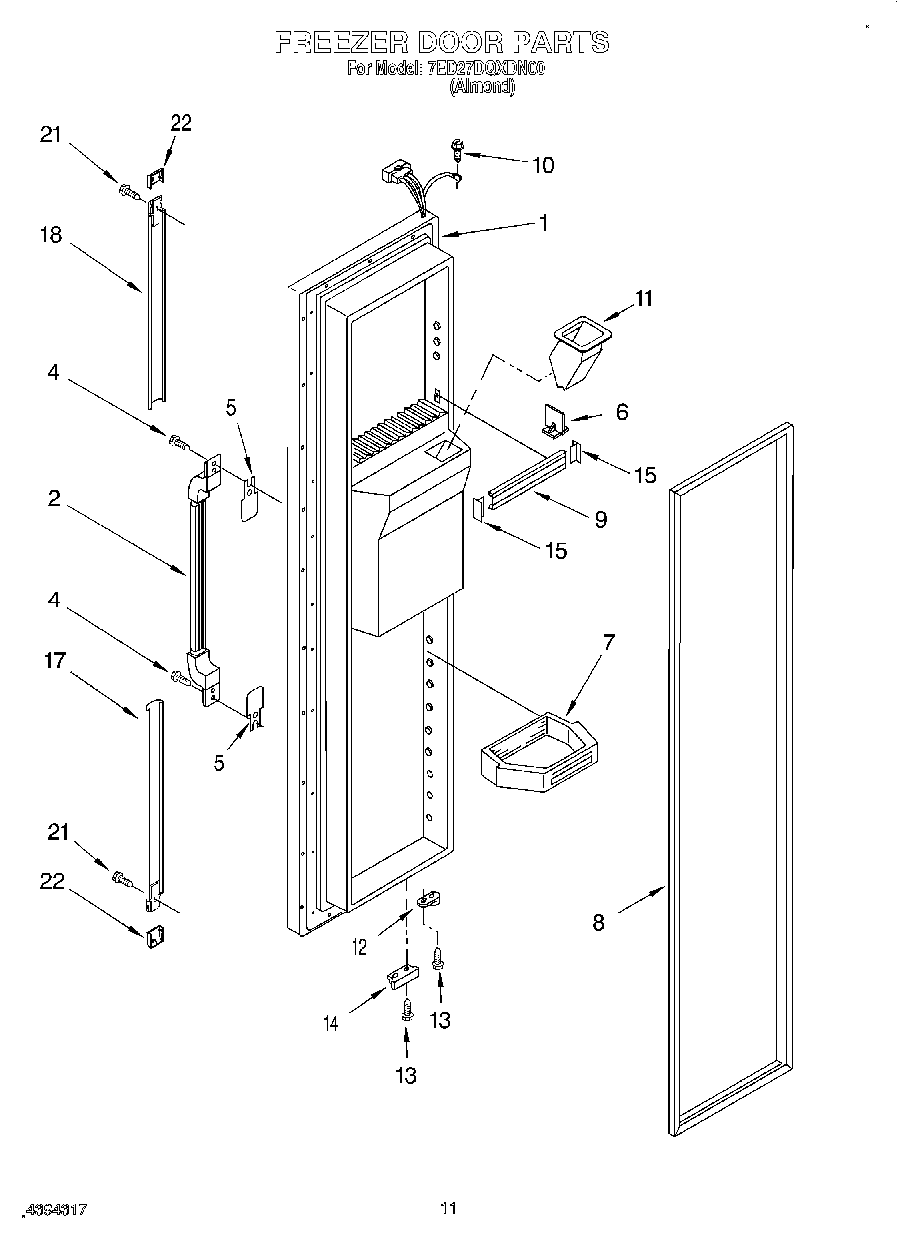

7ED27DQXDN00 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Almond)
2	Handle, Center (Almond)
4	WP489463 Whirlpool Refrigerator Screw
5	Shim
6	Divider-Door
7	Shelf Bin (4)
8	2159074 Whirlpool Door Gasket Seal
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP488234 Whirlpool Air Conditioner Screw
11	Chute, Ice
12	4318165 Whirlpool Refrigerator Door Closure Cam Kit
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Chrome)
15	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
17	Extension, Bottom (Almond)
18	Extension, Top (Almond)
22	Cover, End Cap (Almond)
