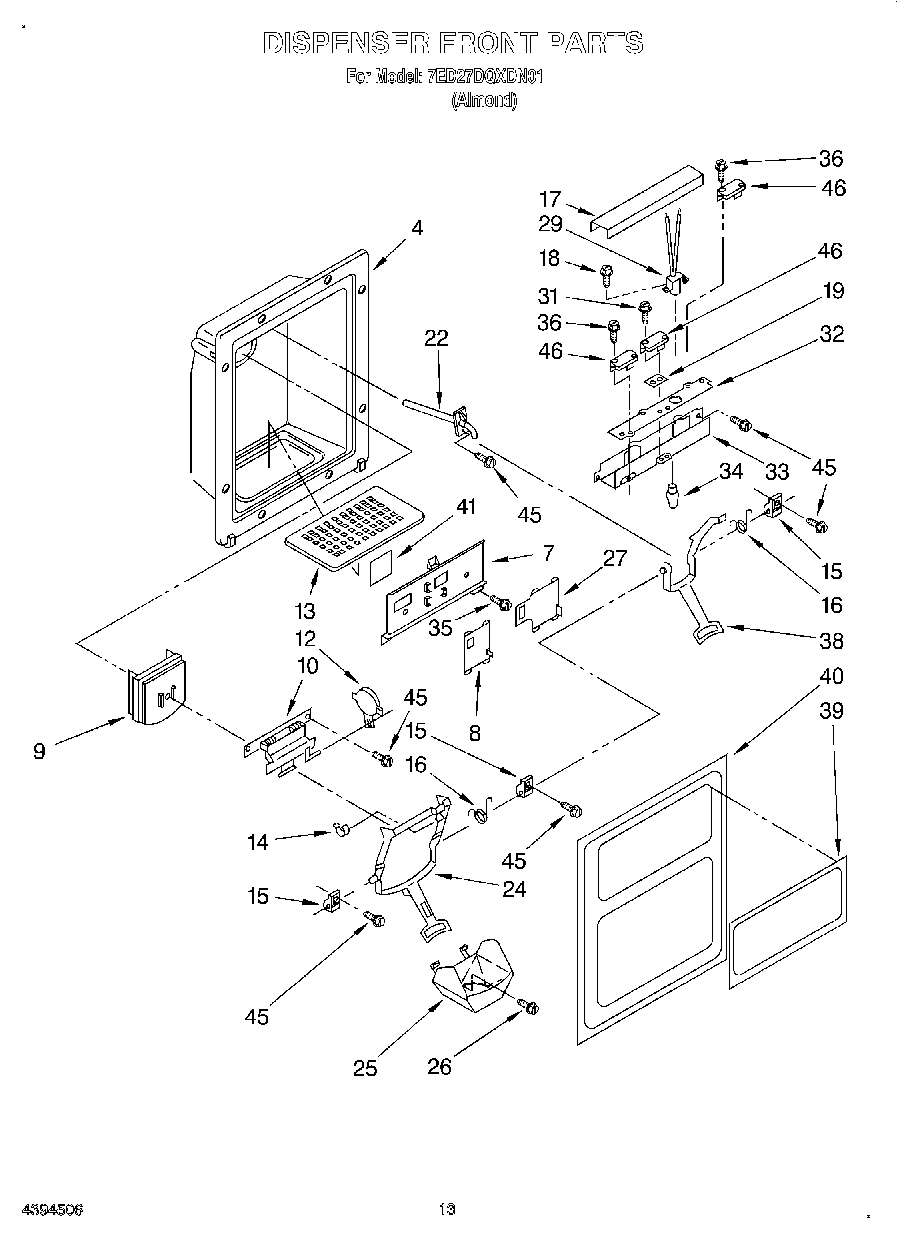

7ED27DQXDN01 08 – DISPENSER FRONT

Products

PositionProduct
4Housing, Dispenser (Not a Serviceable Part)
7Frame, Slides (Almond)
8Slide, Cube/Crush Switch (Almond)
9WP2180353 Whirlpool Dispenser Door
10Door Mechanism Assembly
12WP1120581 Whirlpool Refrigerator Mechanism
13Grille, Overflow (Almond)
14Clip, Bearing (2)
15Bearing, Lever (3)
16Spring, Lever (2)
17Shield, Wiring
18WP489128 Whirlpool Refrigerator Screw
19Spacer, Switch (2)
22WP4388152 Whirlpool Refrigerator Fitting
24Lever, Ice Dispenser (Almond)
25Guide, Ice (Almond)
26Screw
27Slide, Light Switch (Almond)
29Lamp Holder
31Screw, 4-40 x 1
32Insulator, Control Bracket
33Bracket, Control
34WP22002263 Whirlpool Dryer 10W Light Bulb
35WP489069 Whirlpool Compactor Screw
36Screw,
38Lever, Water Dispenser (Almond)
39Plaque, Front Cover (Almond)
40WPL 2179202
41Heat Shield, Frame
45WP3400906 Whirlpool Refrigerator Screw
46WP2162361 Whirlpool Switch
