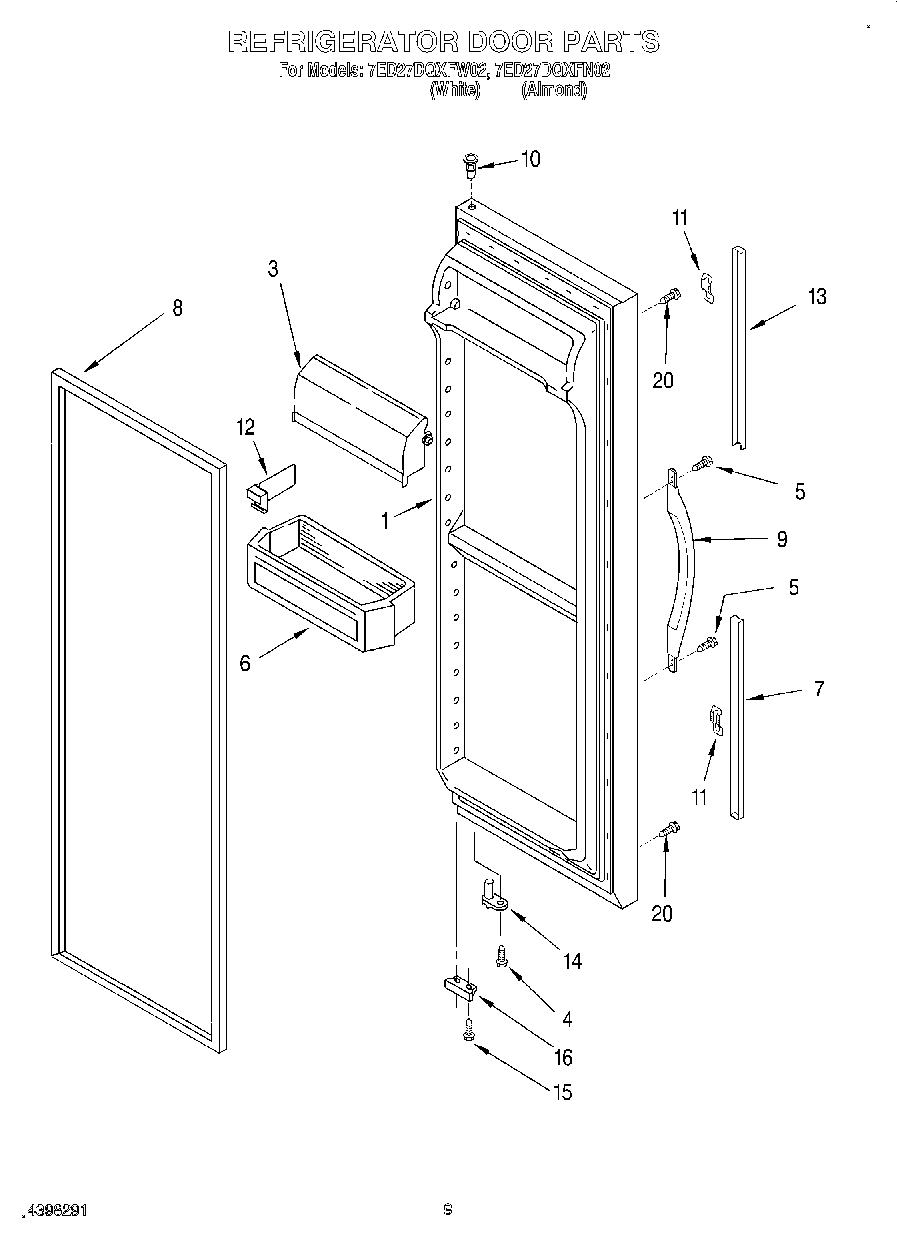

7ED27DQXFW02 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item No.8) (White)
1	Refrigerator Door (Includes Item No.8) (Almond)
3	WP2256101 Whirlpool Dairy Door
4	WP3400012 Whirlpool Refrigerator Screw
5	WP489491 Whirlpool Refrigerator Screw
6	WP2203872 Whirlpool Refrigerator Cantilever Bin
7	Extension, Bottom (Almond)
7	Extension, Bottom (White)
8	2159075 Whirlpool Door Gasket Seal
9	Handle, Center (Almond)
9	Handle, Center (White)
10	WP2182181 Whirlpool Refrigerator Thimble
11	WP2195327 Whirlpool Refrigerator Clip
12	Divider, Bin
13	Extension, Top (Almond)
13	WP2194973W Whirlpool Door Trim
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Chrome)
20	WP3400852 Whirlpool Refrigerator Screw
