7ED2GTQXPL01 09 – UNIT PARTS
Written by
in

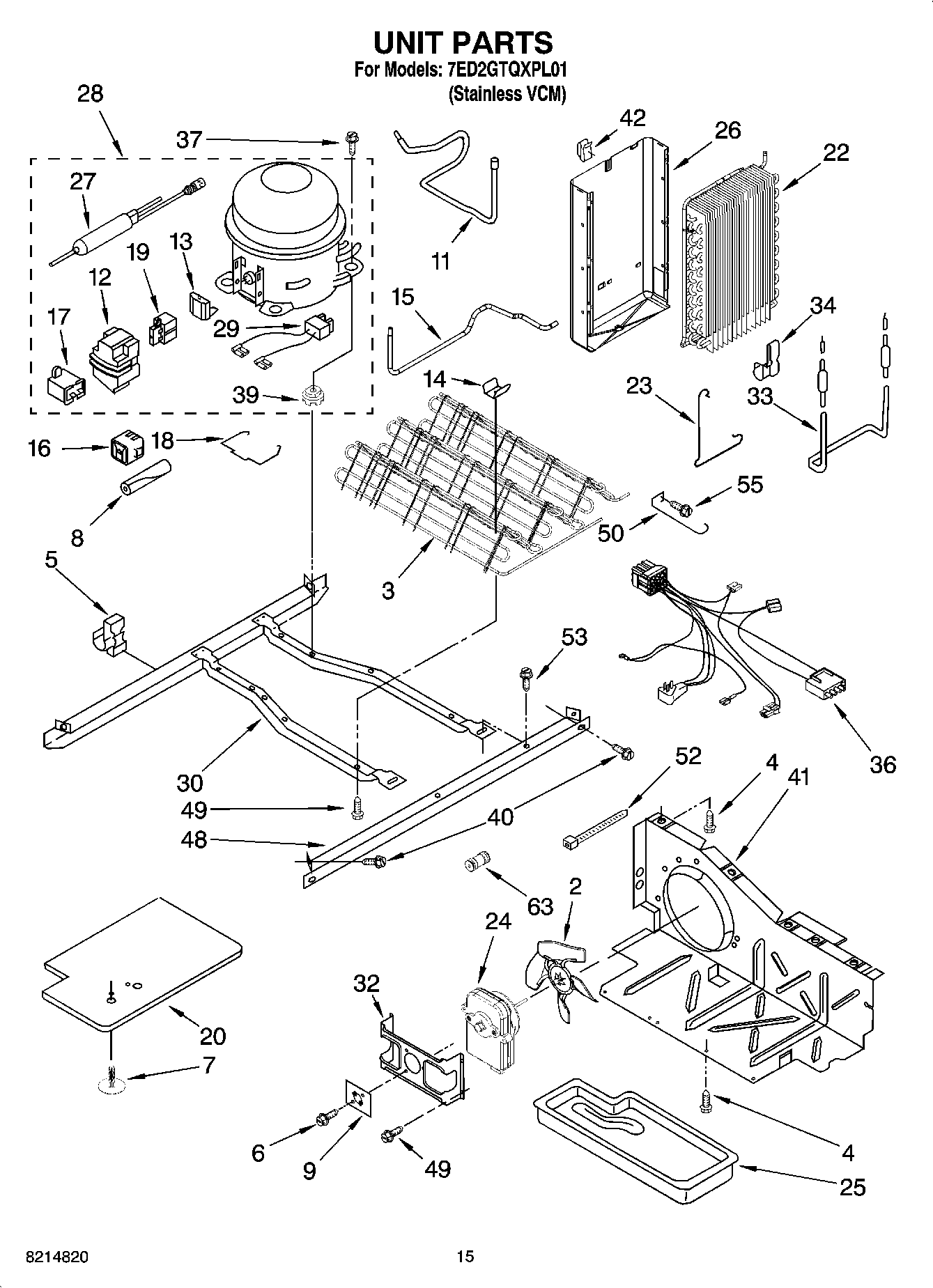

7ED2GTQXPL01 09 – UNIT PARTS
Products
Position
Product
2
W11458267 Whirlpool Refrigerator Fan Blade
3
2324712 Whirlpool Refrigerator Condenser
4
WP489464 Whirlpool Refrigerator Screw
5
Clip, Wire & Tube
6
8281160 Whirlpool Screw
7
489396 Whirlpool Refrigerator Clip
8
SLEEVE
9
Insert, Bracket
11
2220642 Whirlpool Refrigerator Tube
12
WP2162358 Whirlpool Refrigerator Terminal Cover
13
WP2187145 Whirlpool Refrigerator Overload
14
W10683556 Whirlpool Refrigerator Clip
15
2261599 Whirlpool Refrigerator Tube
16
WP2188831 Whirlpool Refrigerator Start Device
17
WP65889-4 Whirlpool Refrigerator Capacitor
17
WPW10662129 Whirlpool Refrigerator Run Capacitor
18
2255009 Whirlpool Retainer
19
W10920279 Whirlpool Refrigerator Start Relay
20
Unit Cover, Bottom
22
WP2188822 Whirlpool Refrigerator Evaporator
23
Clamp
24
W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25
WPW10614158 Whirlpool Refrigerator Evaporator Tray
26
Heat Shield
27
W10843121 Whirlpool Refrigerator Tube
28
W10309990 Whirlpool Refrigerator Compressor
29
WP2172890 Whirlpool Refrigerator Wire
30
2304903 Whirlpool Refrigerator Frame
32
WP2181929 Whirlpool Refrigerator Bracket
33
WP2323197 Whirlpool Refrigerator Heater
34
W11623163 Whirlpool Refrigerator Clip
36
WP2187605 Whirlpool Wire Harness
39
WP4387558 Whirlpool Refrigerator Compressor Grommet
39
876811 Whirlpool Grommet
40
489340 Whirlpool Refrigerator Screw
41
W10896764 Whirlpool Refrigerator Air Baffle
42
Clip, Heat Shield
48
Unit Mounting Rail
49
W11544659 Whirlpool Refrigerator Screw
50
1105612 Whirlpool Fan Guard
52
WPW10339879 Whirlpool Wire Tie
53
WP489427 Whirlpool Refrigerator Screw
55
WPW10141625 Whirlpool Refrigerator Screw Assembly
63
and Optional Parts Not Included
63
978026 Whirlpool Refrigerator Primary Valve
63
Following Parts Not Illustrated
63
876764 Whirlpool Refrigerator Primary Valve
63
978027 Whirlpool Refrigerator Primary Valve
63
978030 Whirlpool Refrigerator Valve
63
WP978025 Whirlpool Refrigerator Valve
63
WP4373559 Whirlpool Fitting
63
VALVE, ACCESS (1/2“)
63
VALVE, ACCESS (5/8“)
63
REFRIGER
←
