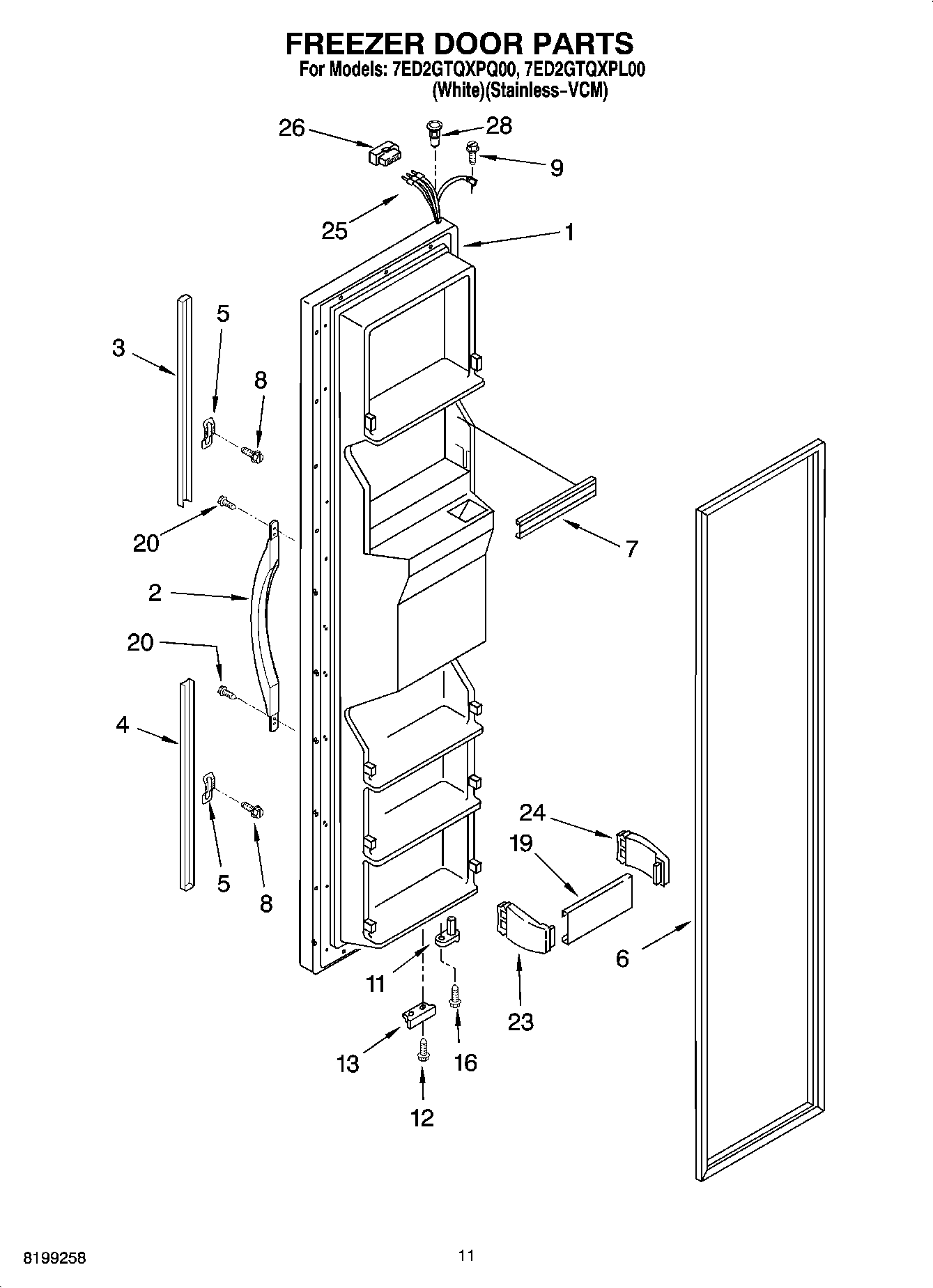

7ED2GTQXPQ00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Stainless-VCM (Includes Item 6 And Dispenser Front Parts))
1	Freezer Door (Includes Item 7 And Dispenser Front Parts) (White)
2	Handle, Center (White)
2	WP2186649B Whirlpool Refrigerator Handle
3	Extension, Top (White)
3	WP2194971B Whirlpool Refrigerator Handle Trim
4	Extension, Bottom (White)
4	WP2194969B Whirlpool Refrigerator Handle Trim
5	WP2195327 Whirlpool Refrigerator Clip
6	2159072 Whirlpool Refrigerator FIP Gasket
6	2159080 Whirlpool Refrigerator Door Gasket
7	WPW10307490 Whirlpool Door Trim Assembly
8	WP3400852 Whirlpool Refrigerator Screw
9	WP489128 Whirlpool Refrigerator Screw
11	WP2182179 Whirlpool Cam Closer
12	WP489483 Whirlpool Screw
13	WP2206629B Whirlpool Refrigerator Bracket
16	WP3400012 Whirlpool Refrigerator Screw
19	Trim, Shelf (4)
20	WP489491 Whirlpool Refrigerator Screw
23	WP2195917K Whirlpool Refrigerator Endcap
24	ENDCAP
25	2311642 Whirlpool Refrigerator Wire Harness
26	WP2154473 Whirlpool Refrigerator Connector
28	WP2182181 Whirlpool Refrigerator Thimble
