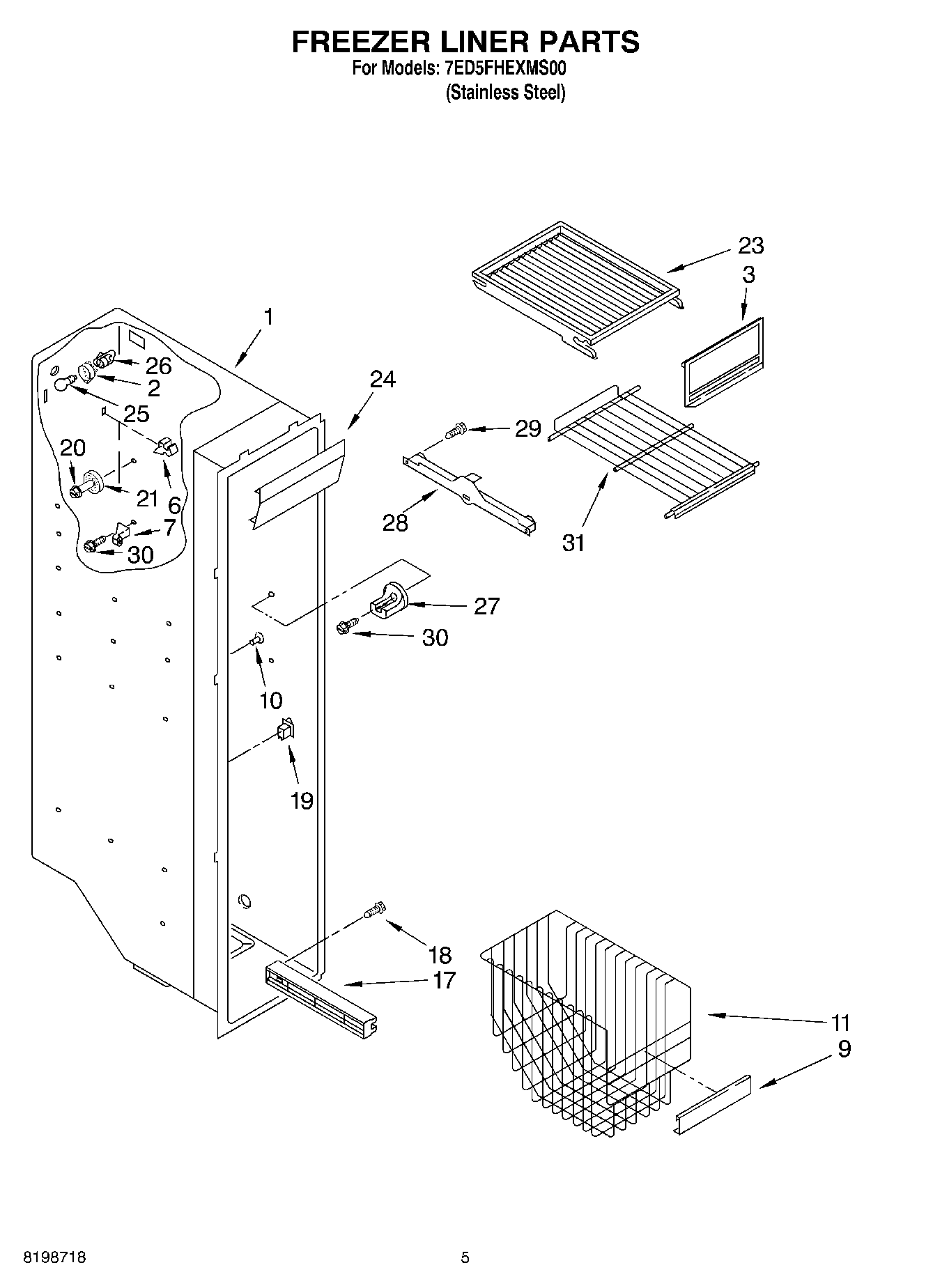

7ED5FHEXMS00 04 – FREEZER LINER PARTS

7ED5FHEXMS00 04 – FREEZER LINER PARTS

Written by

in

7ED5FHEXMS00 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
2WP2175210 Whirlpool Refrigerator Shroud
3Door, Ice Compartment
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
9Trim, Basket
10Grommet
11Basket, Sloped
17Slide, Basket (Left Side)
17WP2261449 Whirlpool Refrigerator Track
18W10759522 Whirlpool Screw
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20WP3400806 Whirlpool Screw
21WP2196483 Whirlpool Refrigerator Shelf Stud
23Shelf, Top Compartment
242171705 Whirlpool Refrigerator Light Lens
25RANGE ONLY 40W 120V APPL BULB
264387478 Whirlpool Refrigerator Light Socket
27Stud, Rear
28W10845585 Whirlpool Refrigerator Track
28W10845583 Whirlpool Refrigerator Track
29718257 Whirlpool Dishwasher Screw
30W10142289 Whirlpool Air Conditioner Screw
31Shelf (2)
31WP2174267 Whirlpool Refrigerator Wire Shelf
