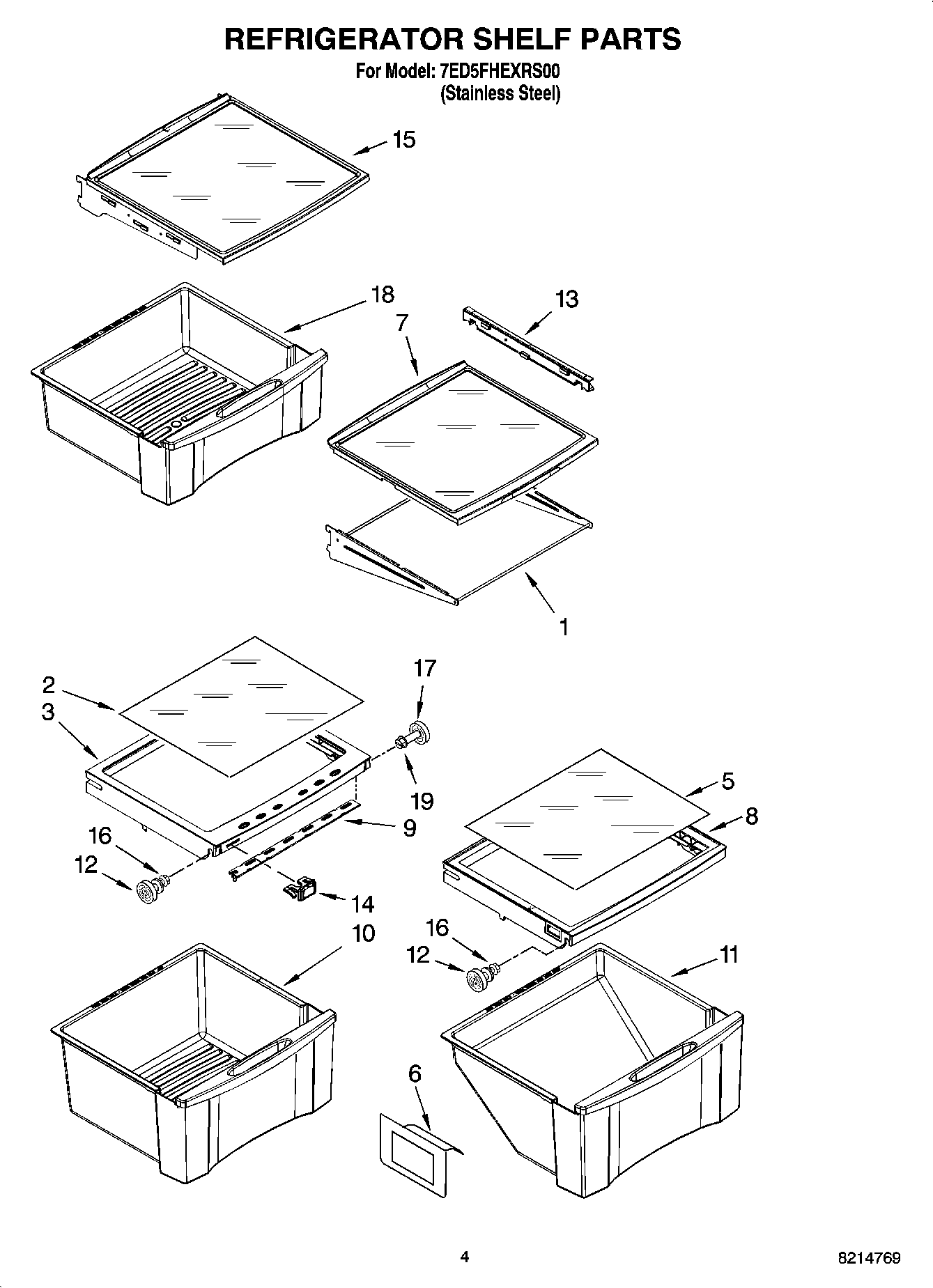

7ED5FHEXRS00 03 – REFRIGERATOR SHELF PARTS

7ED5FHEXRS00 03 – REFRIGERATOR SHELF PARTS

Written by

in

7ED5FHEXRS00 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Frame Assembly (2)
2WP2223591 Whirlpool Refrigerator Glass Shelf
3Cover, Crisper
5Glass, Meat Cover
62179350 Whirlpool Refrigerator Deflector
7Shelf, Slide Out (2)
8WP2223242 Whirlpool Refrigerator Cover
92223308 Whirlpool Refrigerator Slide
10WPW10233488 Whirlpool Refrigerator Crisper Pan
11Meat Pan Assembly
12W11223328 Whirlpool Refrigerator Shelf Stud
13WP2223320 Whirlpool Slide Track Pan
14Knob, Humidity Control
15WP2223288 Whirlpool Refrigerator Cantilever Shelf
16WP3-24004-109 Whirlpool Refrigerator Screw
17WP2196483 Whirlpool Refrigerator Shelf Stud
18Snack Bin Asm
19WP3400806 Whirlpool Screw
