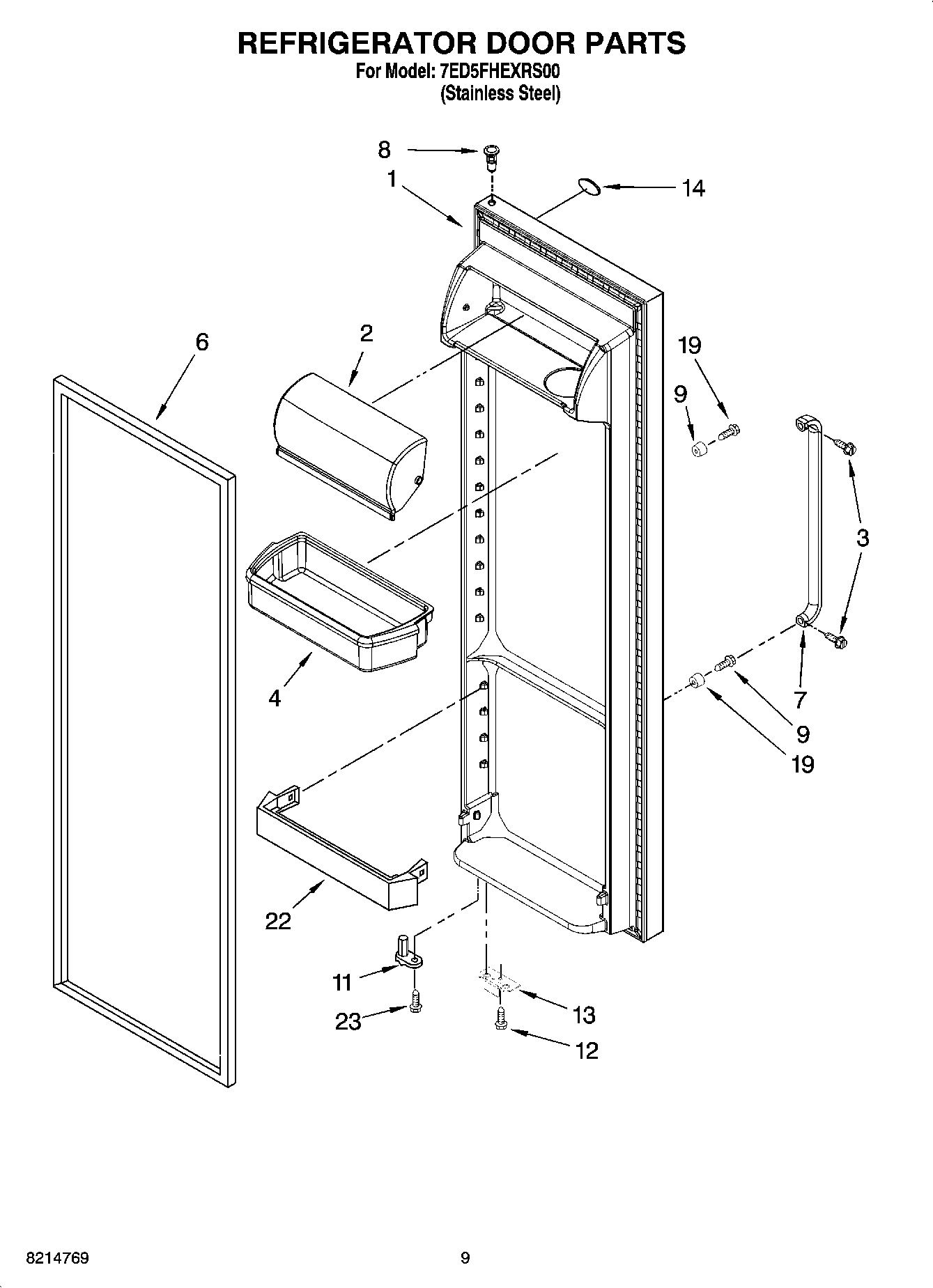

7ED5FHEXRS00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 8) (Stainless Steel)
2WP2256101 Whirlpool Dairy Door
3Screw
4Door Bin (3)
62159083 Whirlpool Gasket Door
7Handle, Center (Stainless)
8Thimble, Top (For Stainless Steel Models)
9WPW10170540 Whirlpool Screw
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13WP2206629B Whirlpool Refrigerator Bracket
14WP2213265 Whirlpool Refrigerator Nameplate
19WP488163 Whirlpool Refrigerator Screw
22WP2318736 Whirlpool Refrigerator Door Trim
23WP3400012 Whirlpool Refrigerator Screw
