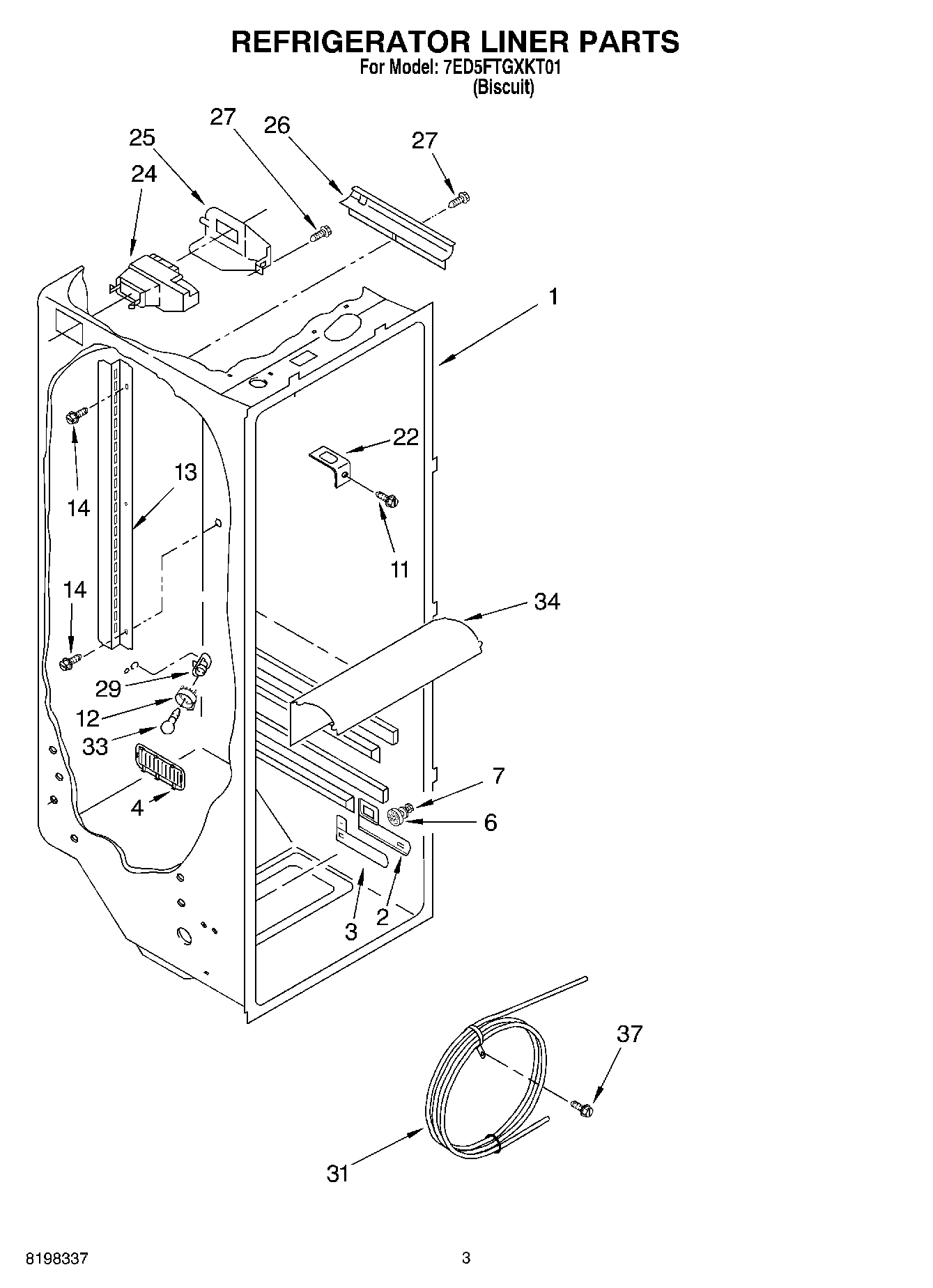

7ED5FTGXKT01 02 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
6W11223328 Whirlpool Refrigerator Shelf Stud
7WP3-24004-109 Whirlpool Refrigerator Screw
11WP488488 Whirlpool Refrigerator Screw
12WP2175210 Whirlpool Refrigerator Shroud
13Ladder, Shelf
14WP488729 Whirlpool Refrigerator Door Screw
22WP2256085 Whirlpool Refrigerator Retainer
24WPW10151374 Whirlpool Refrigerator Diffuser
252152019 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
27W10759522 Whirlpool Screw
294387478 Whirlpool Refrigerator Light Socket
31WP2256126 Whirlpool Refrigerator Reservoir
33RANGE ONLY 40W 120V APPL BULB
34Light Lens
37Screw (2)
