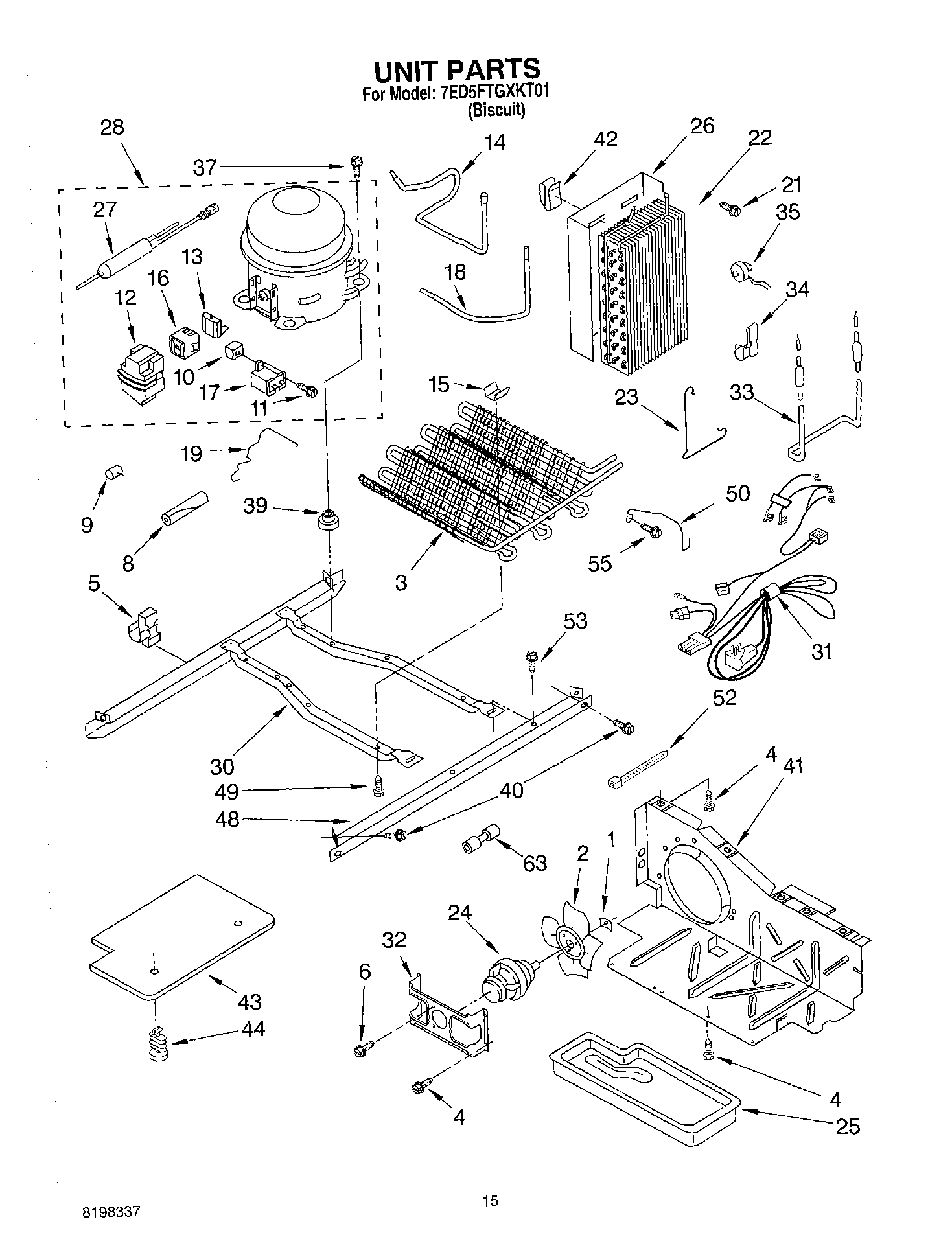

7ED5FTGXKT01 09 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	681390 Whirlpool Refrigerator Screw
8	SLEEVE
9	WP2158826 Whirlpool Refrigerator Dampener
10	Screw Grommet
11	W11693756 Whirlpool Screw Assembly
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP4387835 Whirlpool Refrigerator Overload
14	WP2205765 Whirlpool Refrigerator Tube
15	W10683556 Whirlpool Refrigerator Clip
16	8201786 Whirlpool Relay and Overload Start Kit
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
17	WP4387764 Whirlpool Run Capacitor
18	Tube, Condenser to Heat Loop
19	2223314 Whirlpool Refrigerator Clip
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	W10822259 Whirlpool Refrigerator Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Heat Shield
27	W10843121 Whirlpool Refrigerator Tube
28	W10309994 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
30	2304904 Whirlpool Frame Assembly
31	8201633 Whirlpool Wire Harness
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323198 Whirlpool Refrigerator Heater
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37	SCREW
39	W11661108 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
43	Unit Cover, Bottom
44	489396 Whirlpool Refrigerator Clip
48	2305374 Whirlpool Refrigerator Unit Rail
49	W11544659 Whirlpool Refrigerator Screw
50	Guard, Fan
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
63	VALVE, ACCESS (5/8“)
63	876764 Whirlpool Refrigerator Primary Valve
63	978026 Whirlpool Refrigerator Primary Valve
63	WP4373559 Whirlpool Fitting
63	VALVE, ACCESS (1/2“)
63	978027 Whirlpool Refrigerator Primary Valve
63	WP978025 Whirlpool Refrigerator Valve
63	978030 Whirlpool Refrigerator Valve
