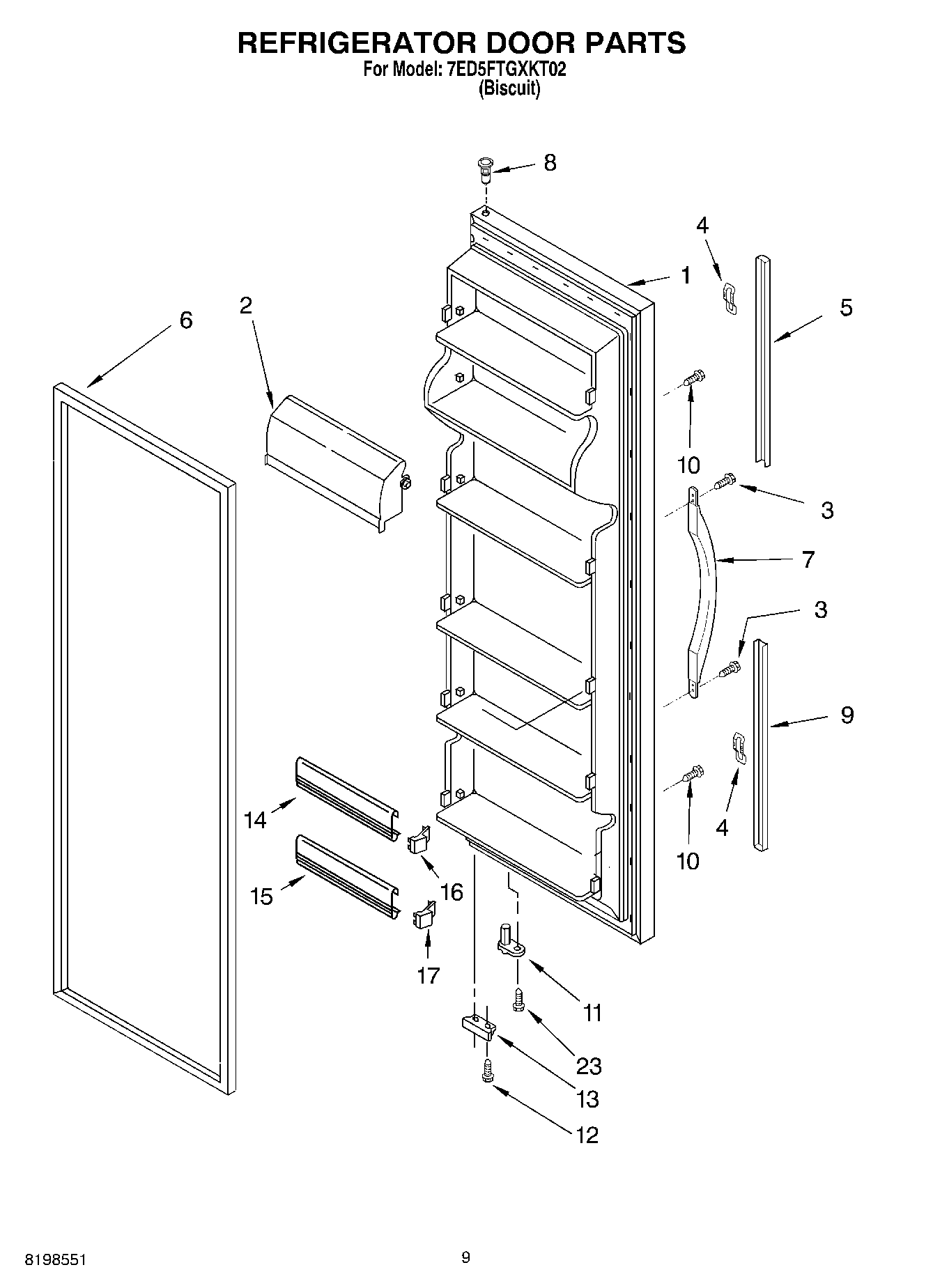

7ED5FTGXKT02 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Biscuit)
2	WP2256101 Whirlpool Dairy Door
3	WP489491 Whirlpool Refrigerator Screw
4	WP2195327 Whirlpool Refrigerator Clip
5	Extension, Top (Biscuit)
6	2159075 Whirlpool Door Gasket Seal
7	Handle, Center (Biscuit)
8	WP2182181 Whirlpool Refrigerator Thimble
9	Extension, Bottom (Biscuit)
10	WP3400852 Whirlpool Refrigerator Screw
11	WP2182179 Whirlpool Cam Closer
12	WP489483 Whirlpool Screw
13	WP2206629B Whirlpool Refrigerator Bracket
14	Trim, Door Shelf
15	WP2256010 Whirlpool Door Shelf Trim
16	WP2195915 Whirlpool Door Shelf Support
17	ENDCAP
23	WP3400012 Whirlpool Refrigerator Screw
