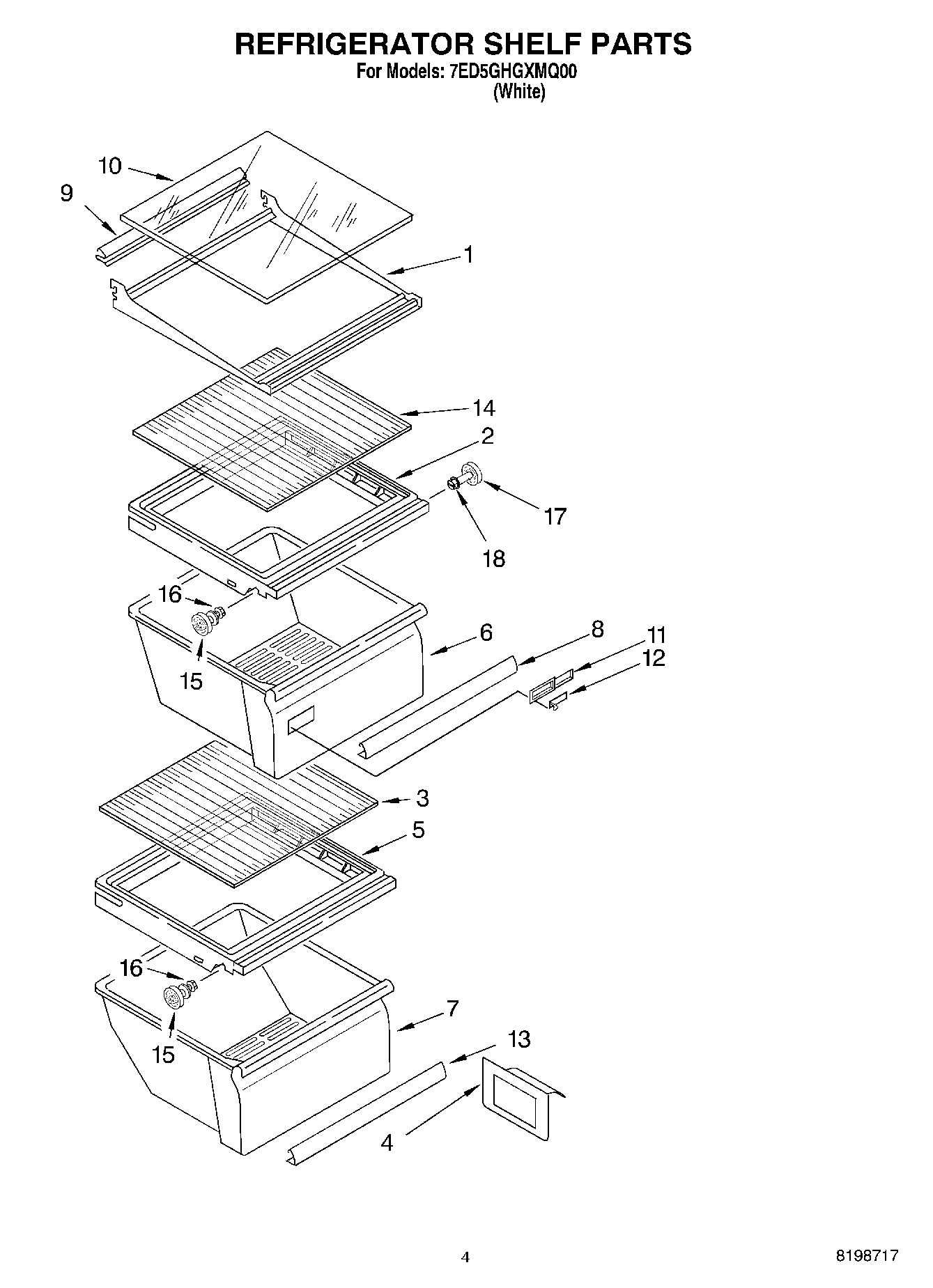

7ED5GHGXMQ00 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Shelf, Cantilever (3)
2	W10508993 Whirlpool Refrigerator Cover Pan
4	2179350 Whirlpool Refrigerator Deflector
5	Cover, Meat Pan
6	PAN-CRISPR
7	WP2188664 Whirlpool Dishwasher Meat Crisper Pan
9	Retainer
10	Glass (3)
11	WP2179343 Whirlpool Refrigerator Control Body
12	WP2179342 Whirlpool Refrigerator Slide
13	WP2179234 Whirlpool Refrigerator Pan Trim
14	W10864399 Whirlpool Glass Shelf
15	W11223328 Whirlpool Refrigerator Shelf Stud
16	WP3-24004-109 Whirlpool Refrigerator Screw
17	WP2196483 Whirlpool Refrigerator Shelf Stud
18	WP3400806 Whirlpool Screw
