7ED7FHGXKQ00 03 – REFRIGERATOR SHELF
Written by
in

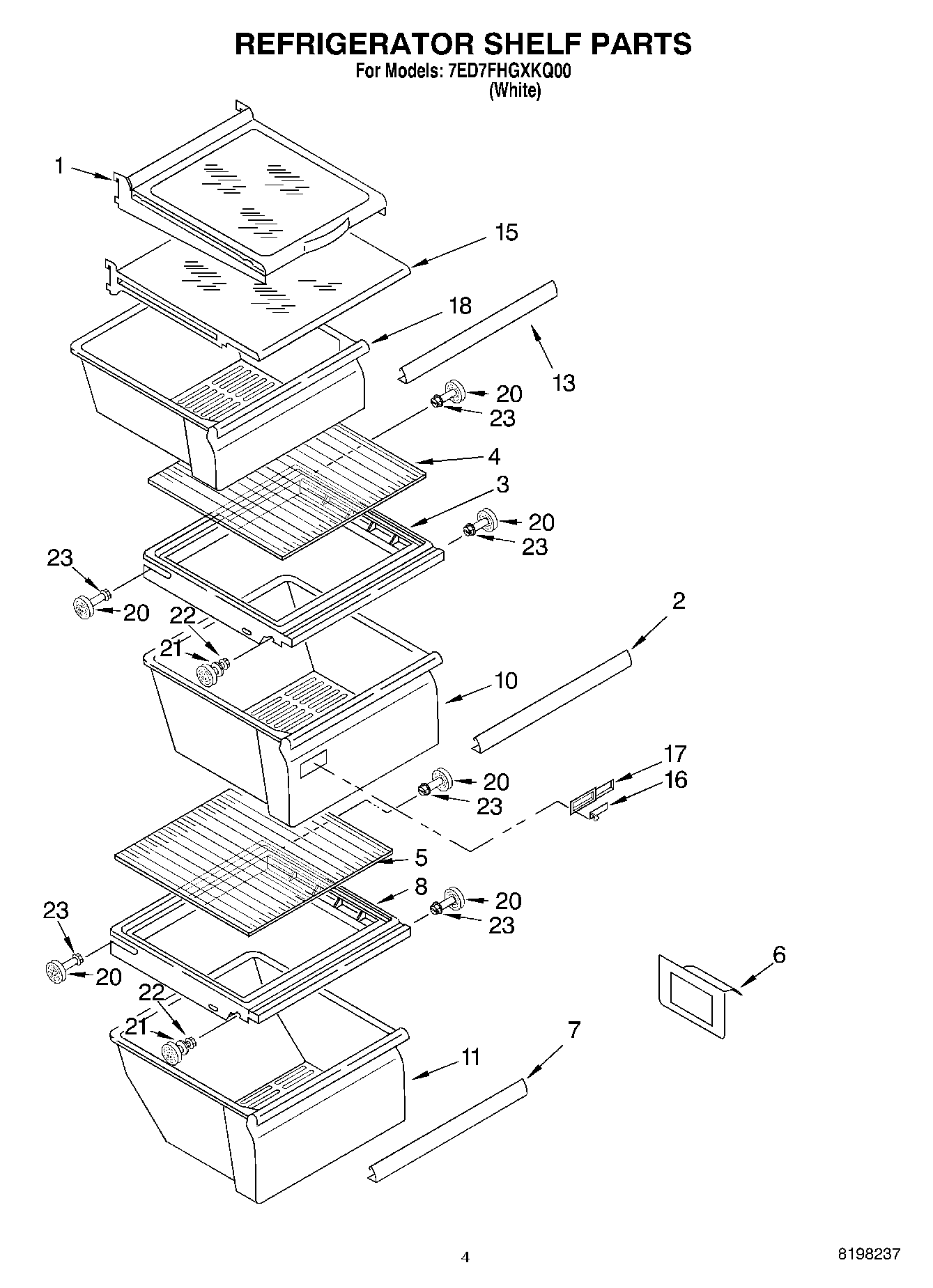

7ED7FHGXKQ00 03 – REFRIGERATOR SHELF
Products
Position
Product
1
Shelf Assembly, Cantilever (2)
3
W10508993 Whirlpool Refrigerator Cover Pan
4
W10864399 Whirlpool Glass Shelf
6
2179350 Whirlpool Refrigerator Deflector
7
WP2179234 Whirlpool Refrigerator Pan Trim
8
Cover, Meat Pan
10
PAN-CRISPR
11
WP2188664 Whirlpool Dishwasher Meat Crisper Pan
13
WP2179243 Whirlpool Refrigerator Pan Trim
15
Shelf, Snack Bin
16
WP2179342 Whirlpool Refrigerator Slide
17
WP2179343 Whirlpool Refrigerator Control Body
18
W11497323 Whirlpool Snack Pan
20
WP2196483 Whirlpool Refrigerator Shelf Stud
21
W11223328 Whirlpool Refrigerator Shelf Stud
22
WP3-24004-109 Whirlpool Refrigerator Screw
23
WP3400806 Whirlpool Screw
←
