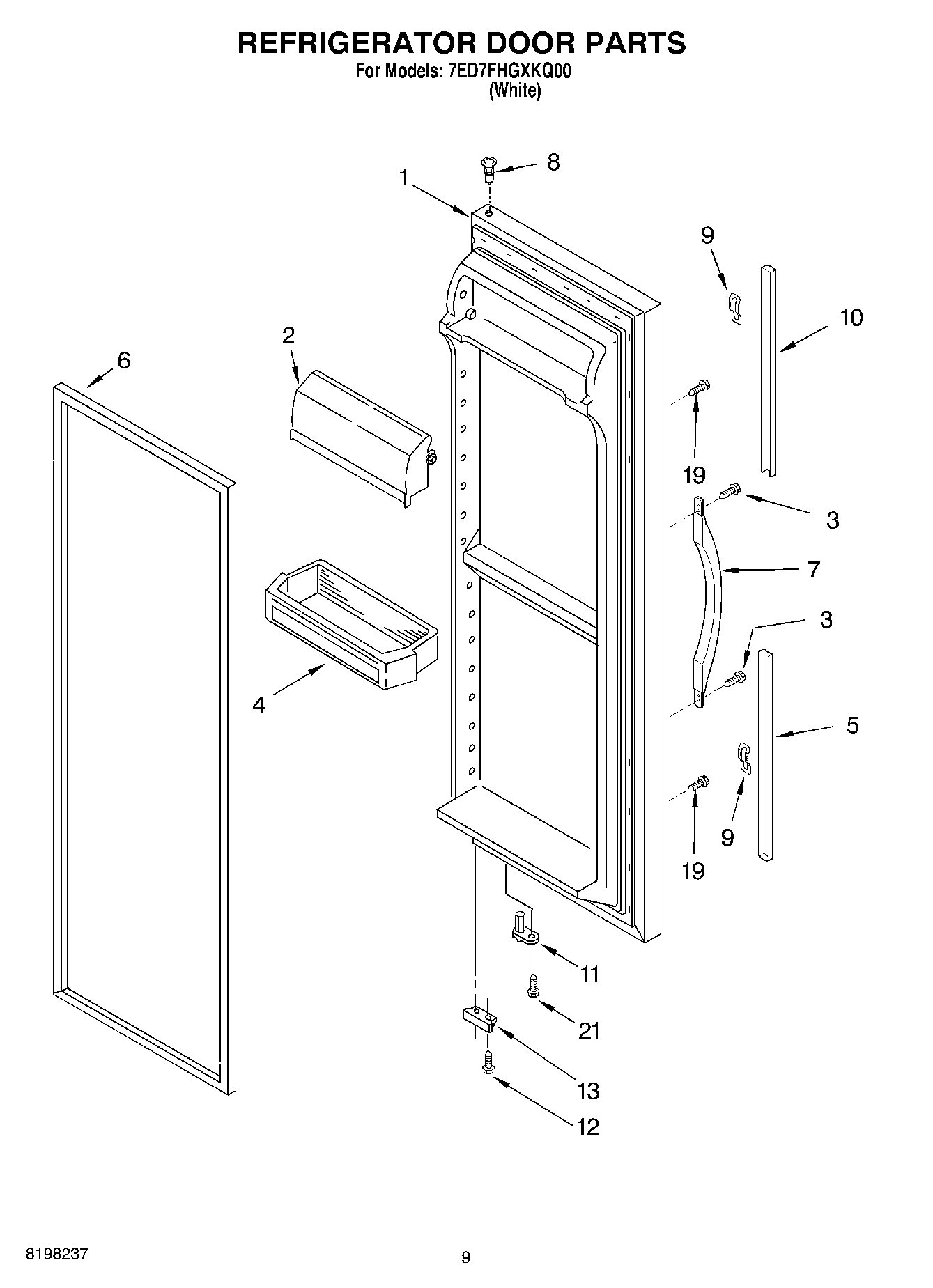

7ED7FHGXKQ00 06 – REFRIGERATOR DOOR

7ED7FHGXKQ00 06 – REFRIGERATOR DOOR

Written by

in

7ED7FHGXKQ00 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (White)
2WP2256101 Whirlpool Dairy Door
3WP489491 Whirlpool Refrigerator Screw
4WP2203872 Whirlpool Refrigerator Cantilever Bin
5Extension, Bottom (White)
62159075 Whirlpool Door Gasket Seal
7Handle, Center (White)
8WP2182181 Whirlpool Refrigerator Thimble
9WP2195327 Whirlpool Refrigerator Clip
10WP2194973W Whirlpool Door Trim
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13Bracket, Door Stop
19WP3400852 Whirlpool Refrigerator Screw
21WP3400012 Whirlpool Refrigerator Screw
