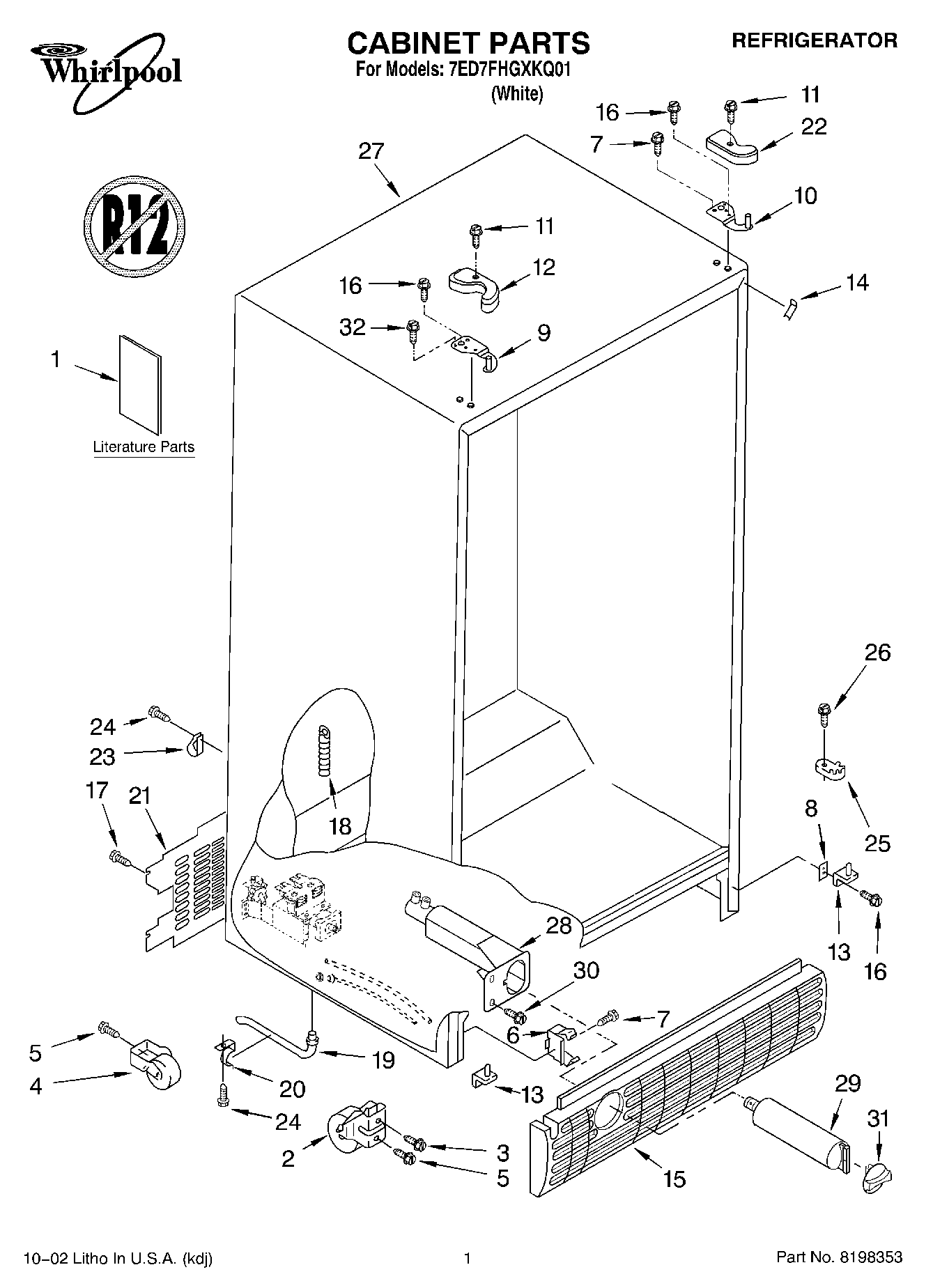

7ED7FHGXKQ01 01 – CABINET, LITERATURE

Products

Position	Product
	Energy Label
	LITERATURE PARTS (Service & Wiring Sheet)
	Modular Icemaker Service Sheet
1	LITERATURE PARTS (Owner`s Manual)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489128 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2203770 Whirlpool Refrigerator Door Hinge
10	WP2203771 Whirlpool Refrigerator Door Hinge
11	WP8281227 Whirlpool Screw
12	WP2203407W Whirlpool Refrigerator Cover
13	8201707 Whirlpool Door Hinge
14	Filler, Wrapper (White)
15	W10803964 Whirlpool Grille Assembly
16	WP489497 Whirlpool Screw
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	WP1108438 Whirlpool Refrigerator Extension
20	WP1108439 Whirlpool Refrigerator Clip
21	Cover, Unit
22	WP2203408W Whirlpool Refrigerator Cover
23	489348 Whirlpool Refrigerator Tube Clamp
24	W11693756 Whirlpool Screw Assembly
25	WPW10329686 Whirlpool Door Cam Black
26	WP489483 Whirlpool Screw
27	Cabinet (Not A Serviceable Part)
28	WP2186443 Whirlpool Water Filter Housing
29	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
30	WP489500 Whirlpool Refrigerator Screw
31	WP2186494W Whirlpool Water Filter Cap
32	W10853301 Whirlpool Refrigerator Screw
