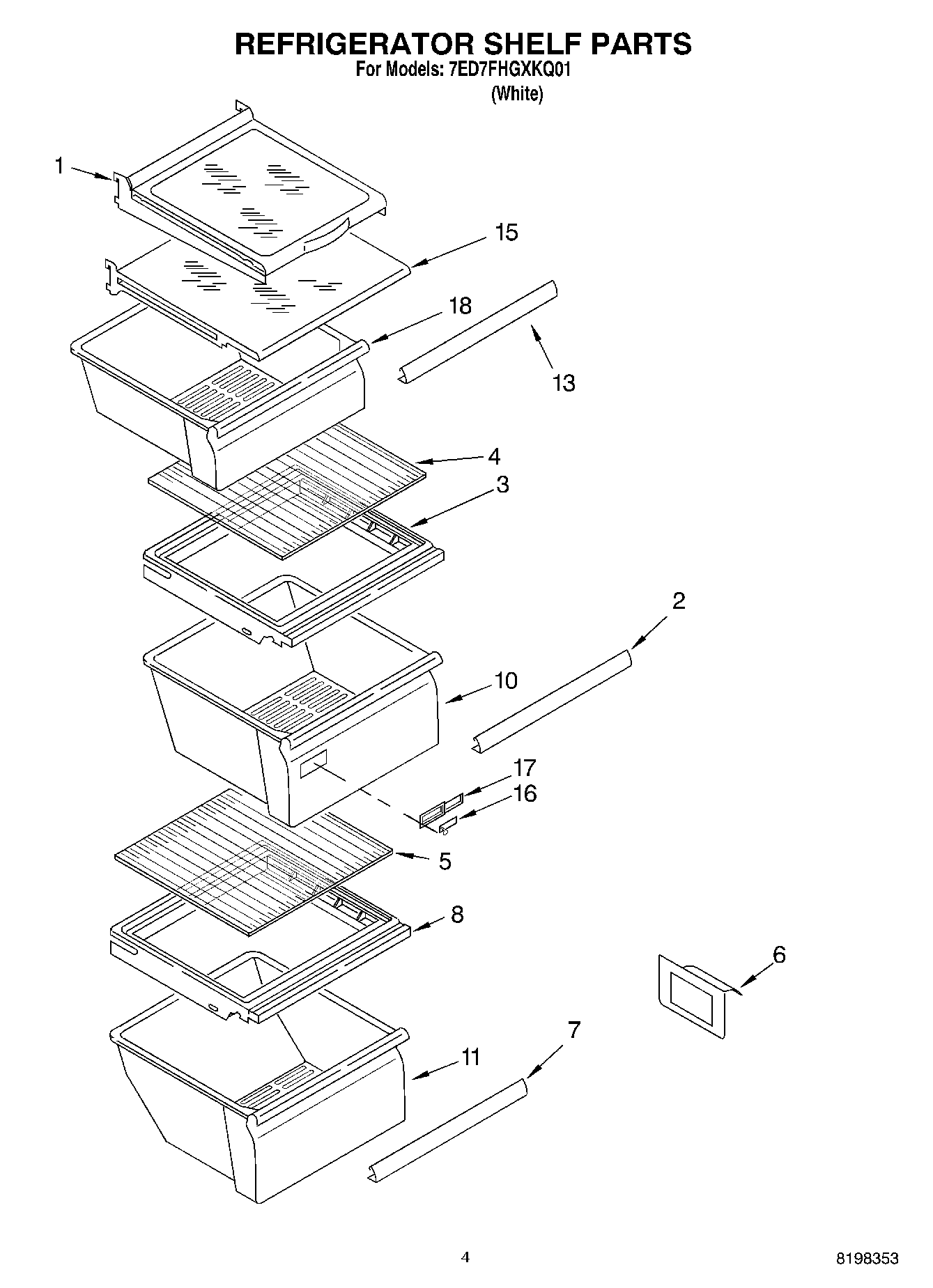

7ED7FHGXKQ01 03 – REFRIGERATOR SHELF

7ED7FHGXKQ01 03 – REFRIGERATOR SHELF

Written by

in

7ED7FHGXKQ01 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Cantilever (2)
3W10508993 Whirlpool Refrigerator Cover Pan
4W10864399 Whirlpool Glass Shelf
62179350 Whirlpool Refrigerator Deflector
7WP2179234 Whirlpool Refrigerator Pan Trim
8Cover, Meat Pan
10PAN-CRISPR
11WP2188664 Whirlpool Dishwasher Meat Crisper Pan
13WP2179243 Whirlpool Refrigerator Pan Trim
15Shelf, Snack Bin
16WP2179342 Whirlpool Refrigerator Slide
17WP2179343 Whirlpool Refrigerator Control Body
18W11497323 Whirlpool Snack Pan
