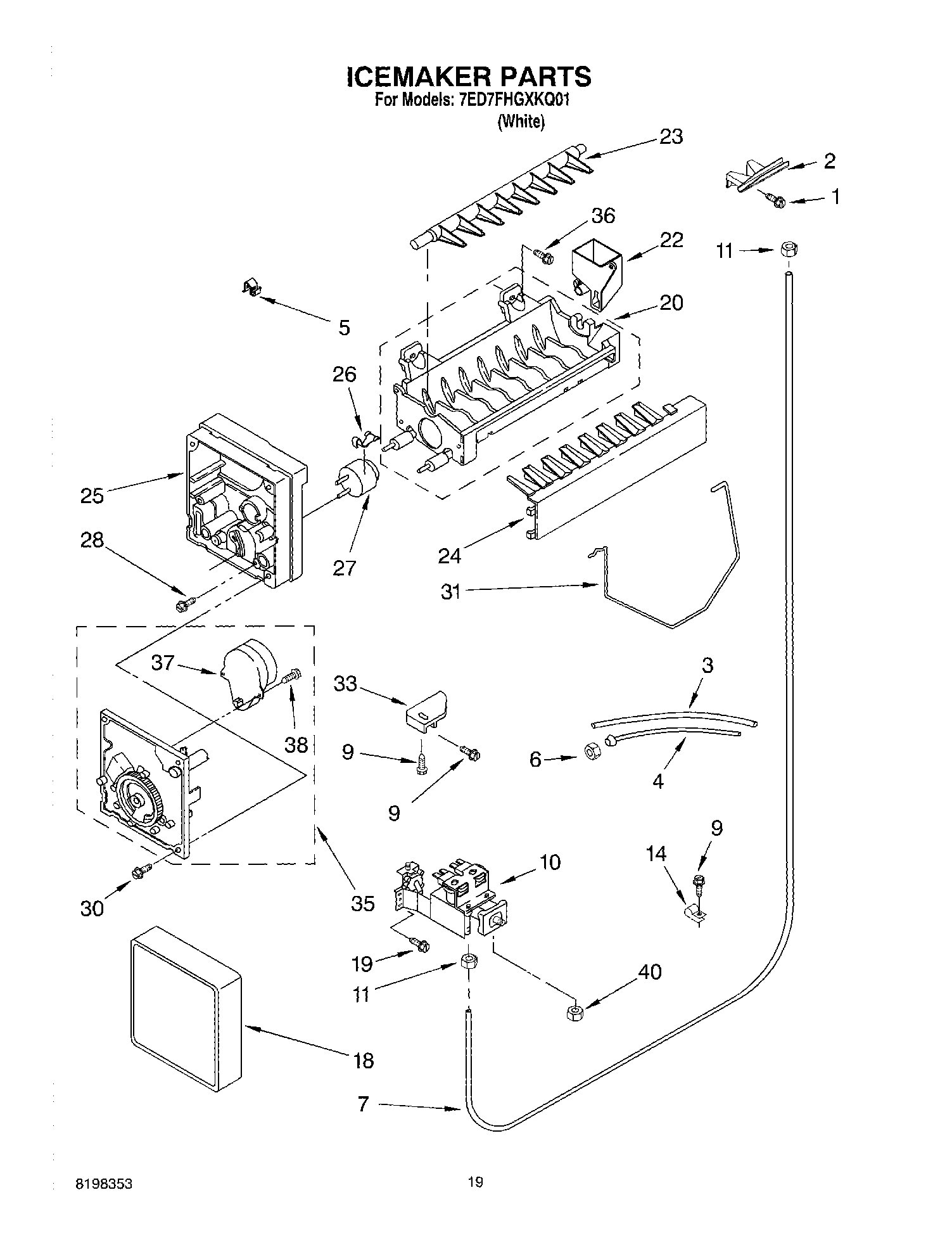

7ED7FHGXKQ01 12 – ICE MAKER, OPTIONAL

7ED7FHGXKQ01 12 – ICE MAKER, OPTIONAL

Written by

in

7ED7FHGXKQ01 12 – ICE MAKER, OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL 799833
	Enamel, Black (1 Qt. Uncut)
	4317943 Whirlpool Refrigerator Ice Maker Assembly
	212643 Whirlpool Refrigerator Permagum Sealer
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	TAPE, VINYL (3/4 X 108“)
	350942 Whirlpool Spray Paint
	511873 Whirlpool Refrigerator Paint
	606755 Whirlpool Refrigerator Bag
	Torx Key
	876370 Whirlpool Refrigerator Insulation
	WP503695 Whirlpool Refrigerator Sealer
	WP505587 Whirlpool Refrigerator Sealer
	WPL 876029
	WP542638 Whirlpool Refrigerator Grease
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	833938 Whirlpool Refrigerator Terminal
	72017 Whirlpool Appliance Touch-Up Paint White
	WPW10312300 Whirlpool Refrigerator Ice Container
	350956 Whirlpool Spray Assembly
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
2	W11505385 Whirlpool Refrigerator Chute
3	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
4	W11496481 Whirlpool Refrigerator Water Tube
5	WP628379 Whirlpool Refrigerator Clip
6	Nut, Compression
7	W10823511 Whirlpool Refrigerator Water Tube
9	WP489478 Whirlpool Refrigerator Screw
10	W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
11	WP627018 Whirlpool Refrigerator Nut
14	WP488366 Whirlpool Refrigerator Clamp
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
27	Cement Alumilastic)
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
33	W11500948 Whirlpool Refrigerator Bracket
36	WP488163 Whirlpool Refrigerator Screw
37	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38	489136 Whirlpool Refrigerator Screw
40	Nut, Compression
