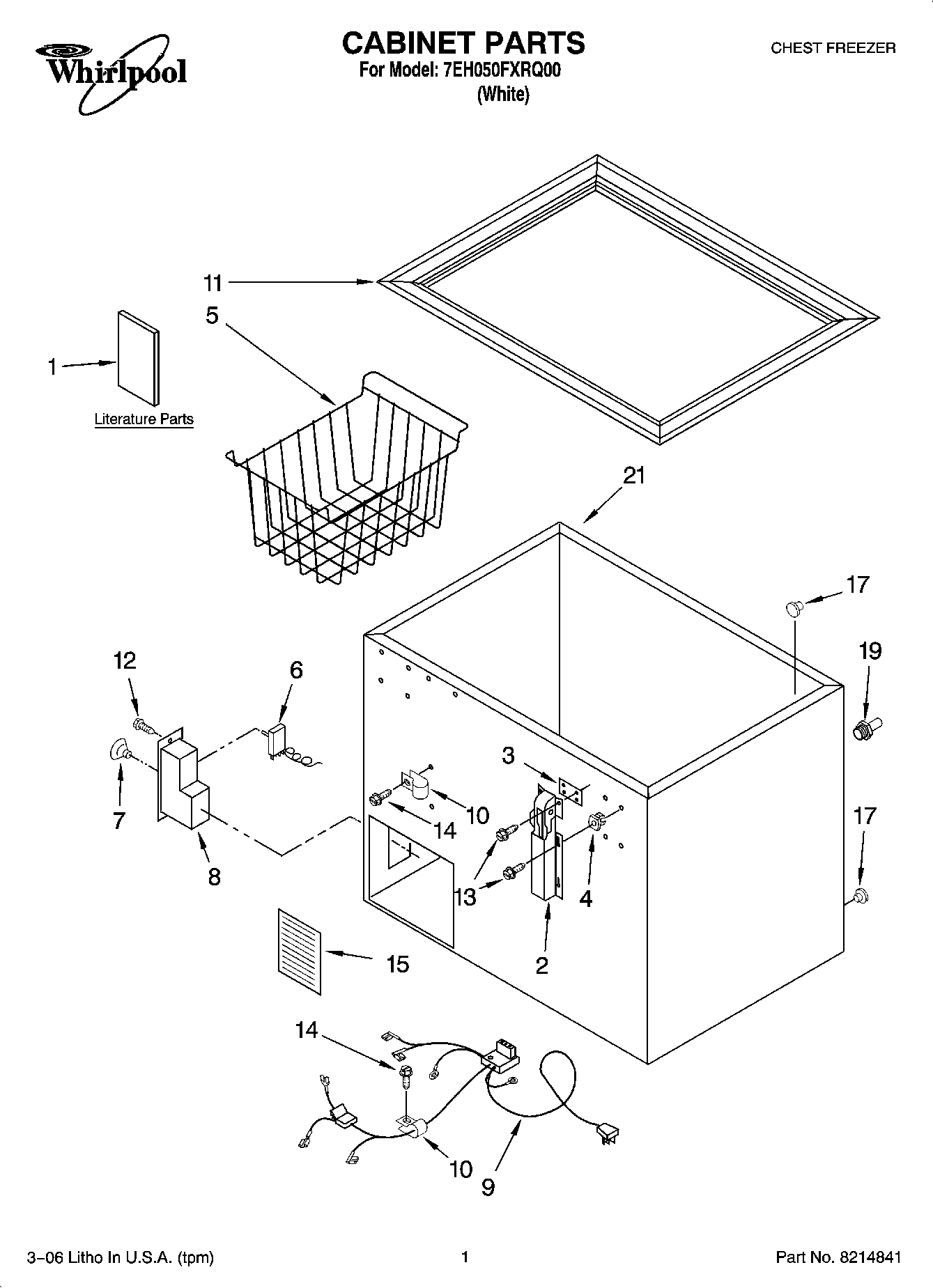

7EH050FXRQ00 01 – CABINET PARTS

7EH050FXRQ00 01 – CABINET PARTS

Written by

in

7EH050FXRQ00 01 – CABINET PARTS

Products

PositionProduct
1Energy Guide/Tag
1Owners Manual
24356490 Whirlpool Refrigerator Door Hinge
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
5Wire Basket
6WP4-35940-001 Whirlpool Refrigerator Thermostat
7Thermostat, Knob
8W10682894 Whirlpool Refrigerator Control Box
94-35130-004 Whirlpool Refrigerator Harness
10488946 Whirlpool Air Conditioner Clamp
11Breaker Strip
123-24004-049 Whirlpool Screw
134356491 Whirlpool Refrigerator Screw
14SCREW
15Access Panel
17Drain, Cap
19W11663505 Whirlpool Hose Adapter
21Cabinet, (Not A Serviceable Part)
