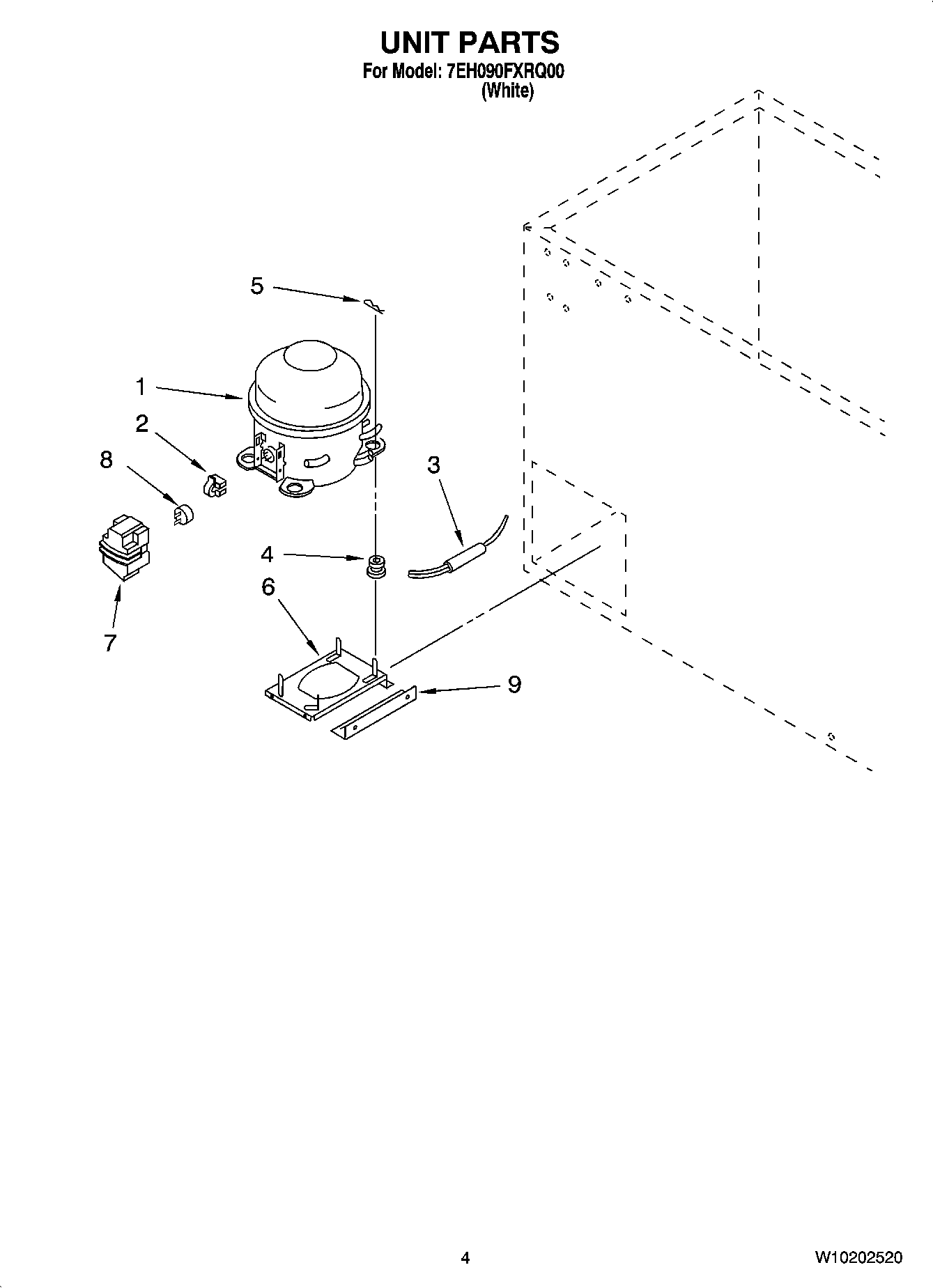

7EH090FXRQ00 03 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Customer Touch-Up Material
	Parts Not Illustrated and Optional Parts (Not Included)
	Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
	Rivet Kit (60)
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
1	Compressor (Includes Items 2, 3, 4, 5, 8 & 9)
2	4356716 Whirlpool Refrigerator Start Relay
3	W10843121 Whirlpool Refrigerator Tube
4	Grommet, Mounting Compressor
5	COMPRESSOR, HITCH PIN
6	Base, Compressor
7	WP2162358 Whirlpool Refrigerator Terminal Cover
8	2264602 Whirlpool Refrigerator Overload
9	REFRIGERANT CHARGE 4.5 oz. (R-134A)
9	3-81556-001 Whirlpool Brace
