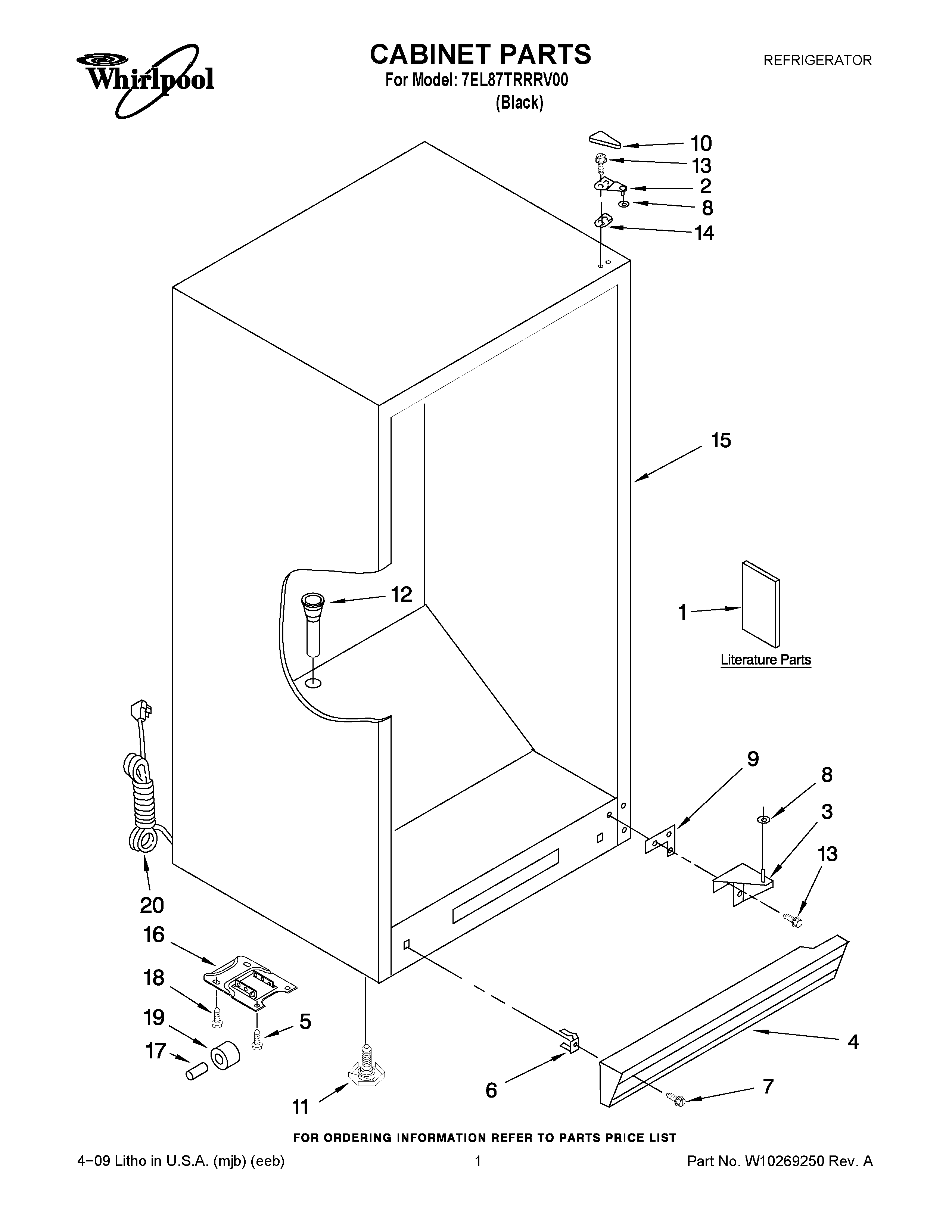

7EL87TRRRV00 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
1	Energy Guide/Tag
2	8210251 Whirlpool Refrigerator Door Hinge
3	Bottom Hinge (Black)
4	Grille (Includes 6 & 7) (Black)
5	WP3-24838-048 Whirlpool Refrigerator Screw
6	Clip, Grille
7	Screw
8	W10851331 Whirlpool Refrigerator Washer
10	Hinge Cover (Black)
11	W11117769 Whirlpool Refrigerator Leveler
12	Drain Hose
13	WP8204624 Whirlpool Bolt
14	4390489 Whirlpool Refrigerator Shim
15	Cabinet, (Not A Serviceable Part)
16	Bracket, Roller
17	Axle
18	SCREW
19	Roller, Front
20	Power Cord
