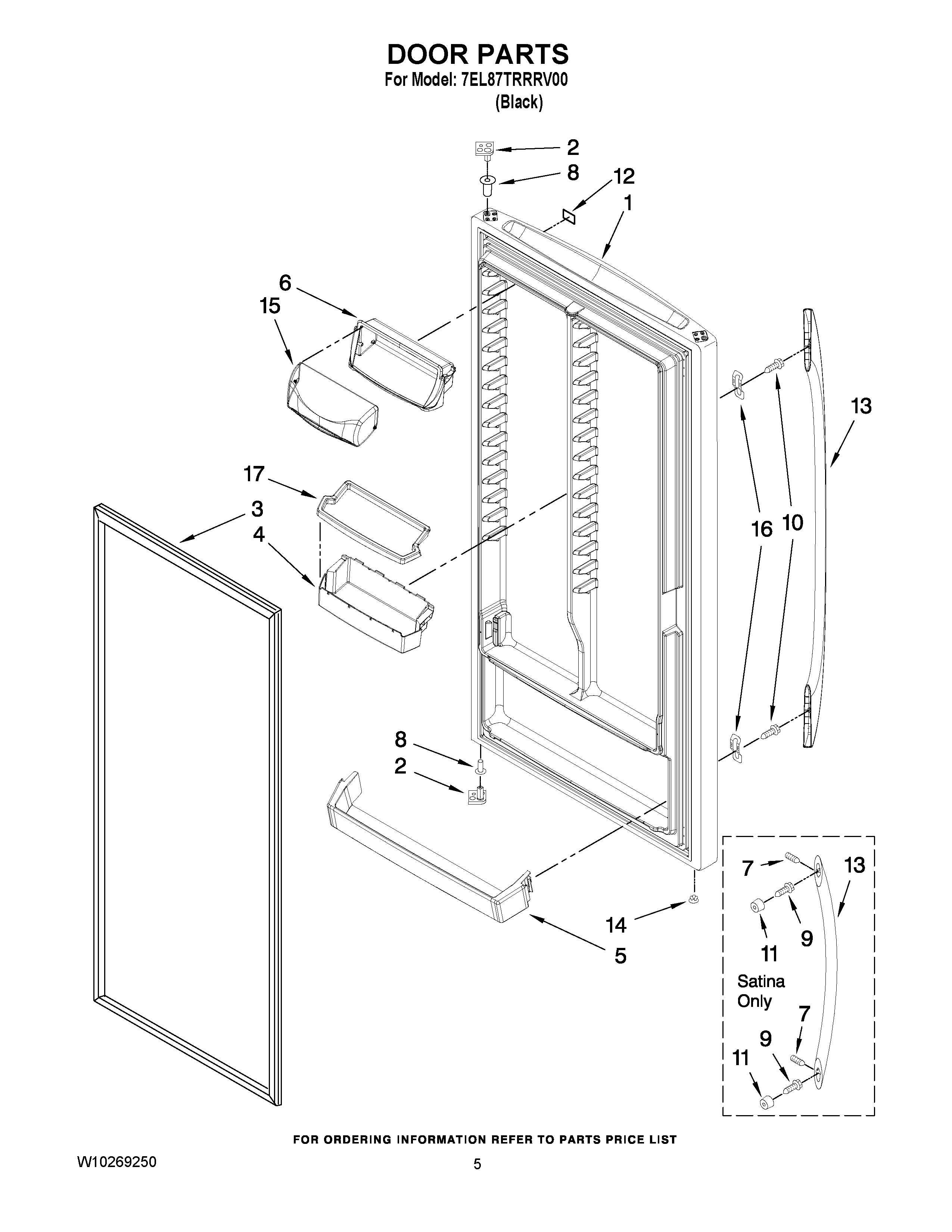

7EL87TRRRV00 03 – DOOR PARTS

Products

Position	Product
1	Exterior Door (Includes Interior Liner) (Satina)
2	STOP, DOOR (TOP) (WHITE)
3	GASKET-DOR (DW1)
4	Bin, Door
5	4-65449-001 Whirlpool Refrigerator Door Trim
6	WP4-65430-001 Whirlpool Refrigerator Housing
7	Screw
8	Bushing (Black)
9	WP488163 Whirlpool Refrigerator Screw
10	WP489491 Whirlpool Refrigerator Screw
11	WPW10170540 Whirlpool Screw
12	WP2213265 Whirlpool Refrigerator Nameplate
13	Handle (Brushed Aluminum (Includes Item 8))
14	3-24898-007 Whirlpool Refrigerator Vent Plug
15	WP4-65429-001 Whirlpool Refrigerator Door Compressor
16	WP2255411 Whirlpool Refrigerator Clip
17	Cover, Bin
