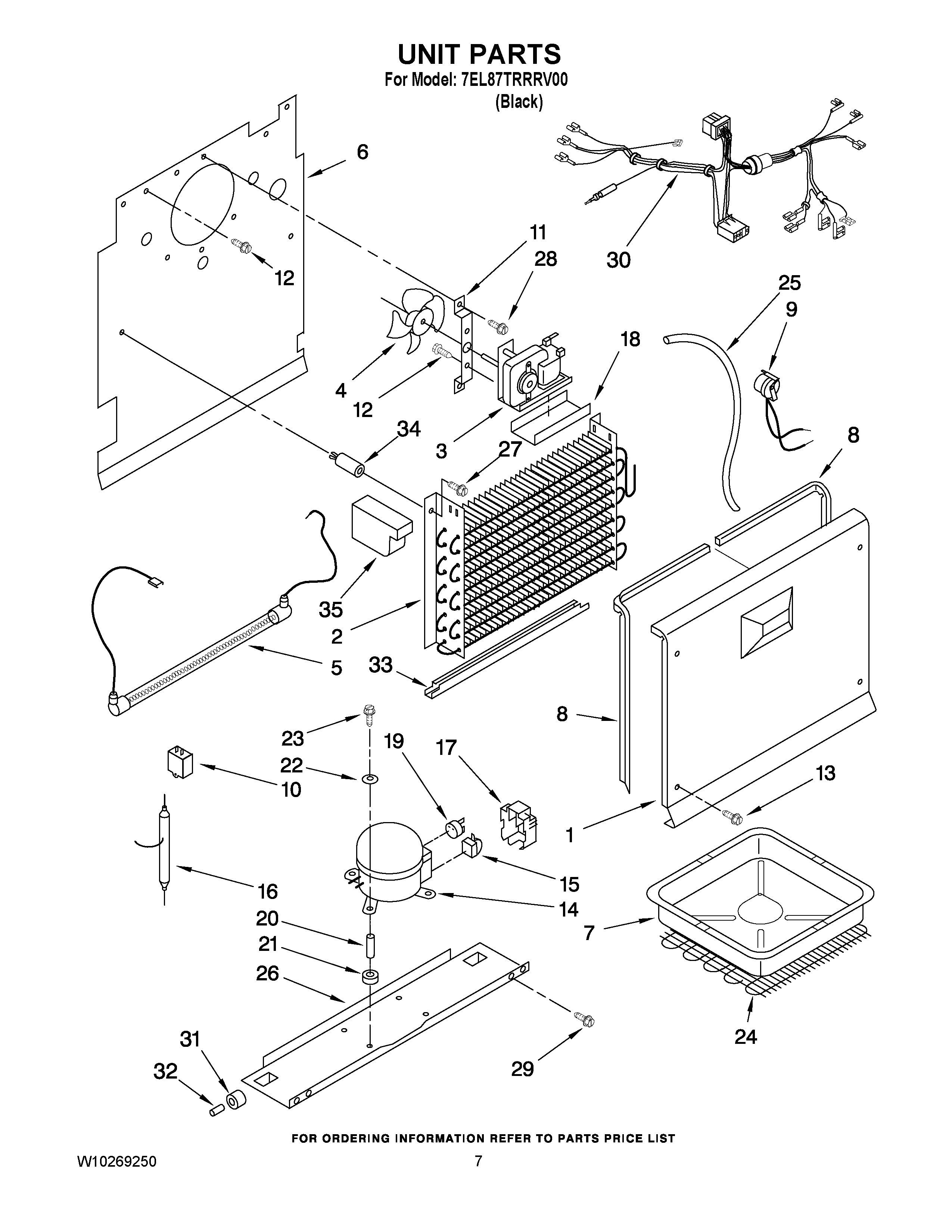

7EL87TRRRV00 04 – UNIT PARTS

Products

Position	Product
NI	REFRIGERANT CHARGE 4.107 oz. (R-134A)
1	Cover, Evaporator
2	Evaporator
3	Fan Motor
4	BLADE-FAN
5	W11175809 Whirlpool Refrigerator Heater
6	Plate, Evaporator Mount
7	Drain Pan
8	4390664 Whirlpool Refrigerator Gasket
8	4390663 Whirlpool Refrigerator Gasket
9	WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10	8210239 Whirlpool Refrigerator Capacitor
11	2-80028-101 Whirlpool Refrigerator Motor Bracket
12	60001022 Whirlpool Oven Screw
13	WP3-24004-109 Whirlpool Refrigerator Screw
14	W10237328 Whirlpool Refrigerator Compressor
15	Relay
16	W10843121 Whirlpool Refrigerator Tube
17	Cover
18	4357128 Whirlpool Refrigerator Motor Bracket
19	Overload
20	4356846 Whirlpool Refrigerator Sleeve
21	Grommet, Mounting Compressor
22	Washer
23	8210220 Whirlpool Bolt
24	CONDENSER
25	WP4357245 Whirlpool Refrigerator Exchanger
26	Compressor Pan
27	WP489491 Whirlpool Refrigerator Screw
28	WP3400094 Whirlpool Screw
29	WP3-24838-048 Whirlpool Refrigerator Screw
30	Harness, Unit
31	3-60315-001 Whirlpool Refrigerator CAB Roller
32	Axle
33	Shield Heater
34	Grommet
35	1-80252-101 Whirlpool Refrigerator Evaporator Block
