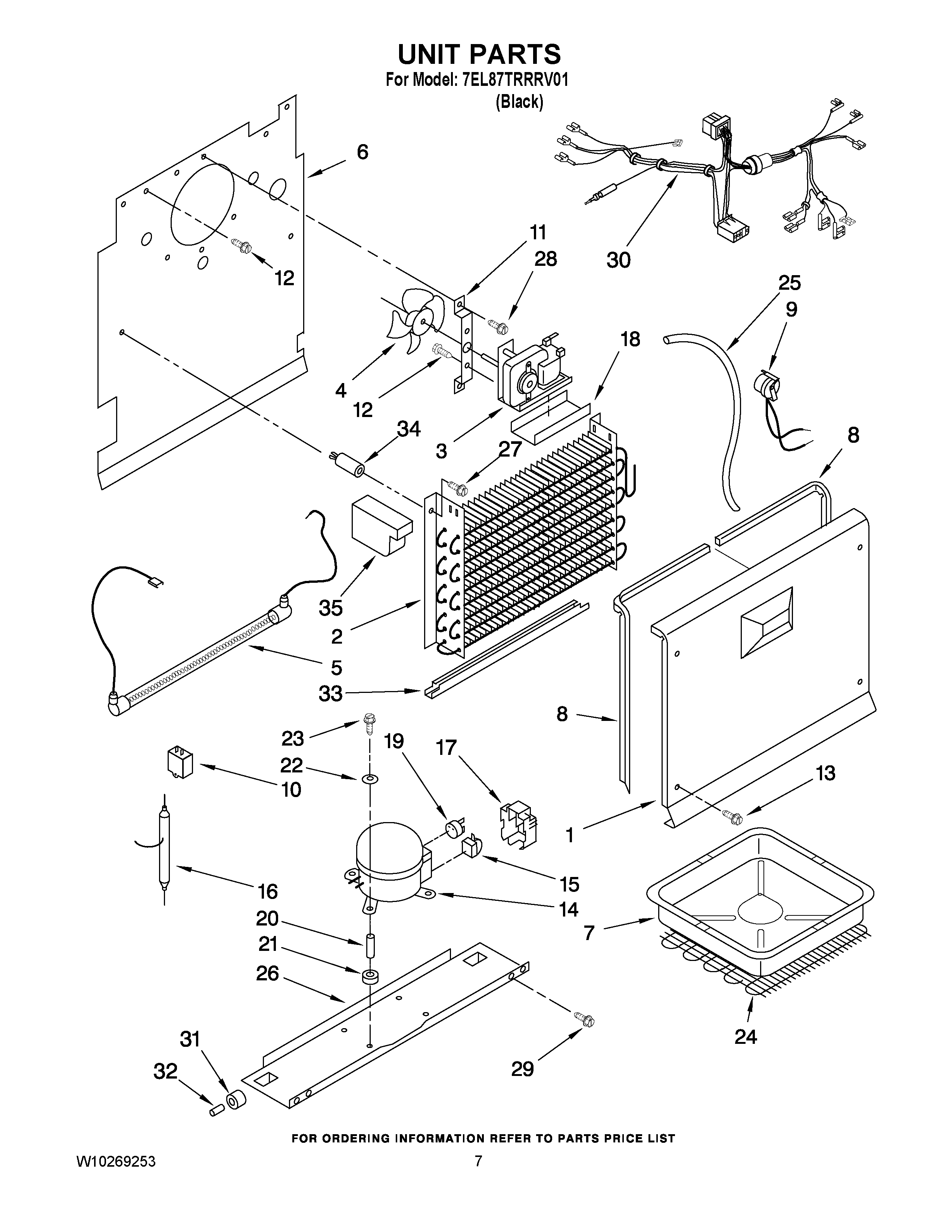

7EL87TRRRV01 04 – UNIT PARTS
Written by
in
7EL87TRRRV01 04 – UNIT PARTS
Products
Position
Product
NI
REFRIGERANT CHARGE 4.107 oz. (R-134A)
1
Cover, Evaporator
2
Evaporator
3
Fan Motor
4
BLADE-FAN
5
W11175809 Whirlpool Refrigerator Heater
6
Plate, Evaporator Mount
7
WP4390675 Whirlpool Refrigerator Drip Pan
8
4390663 Whirlpool Refrigerator Gasket
8
4390664 Whirlpool Refrigerator Gasket
9
WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10
8210239 Whirlpool Refrigerator Capacitor
11
2-80028-101 Whirlpool Refrigerator Motor Bracket
12
60001022 Whirlpool Oven Screw
13
WP3-24004-109 Whirlpool Refrigerator Screw
14
W10237328 Whirlpool Refrigerator Compressor
15
Relay
16
W10843121 Whirlpool Refrigerator Tube
17
Cover
18
4357128 Whirlpool Refrigerator Motor Bracket
19
Overload
20
4356846 Whirlpool Refrigerator Sleeve
21
Grommet, Mounting Compressor
22
Washer
23
8210220 Whirlpool Bolt
24
W10451951 Whirlpool Refrigerator Condenser
25
WP4357245 Whirlpool Refrigerator Exchanger
26
Compressor Pan
27
WP489491 Whirlpool Refrigerator Screw
28
WP3400094 Whirlpool Screw
29
WP3-24838-048 Whirlpool Refrigerator Screw
30
Harness, Unit
31
3-60315-001 Whirlpool Refrigerator CAB Roller
32
Axle
33
Shield, Heater
34
Grommet
35
1-80252-101 Whirlpool Refrigerator Evaporator Block
←
