7EL87TRRRV03 01 – CABINET PARTS

7EL87TRRRV03 01 – CABINET PARTS

Written by

in

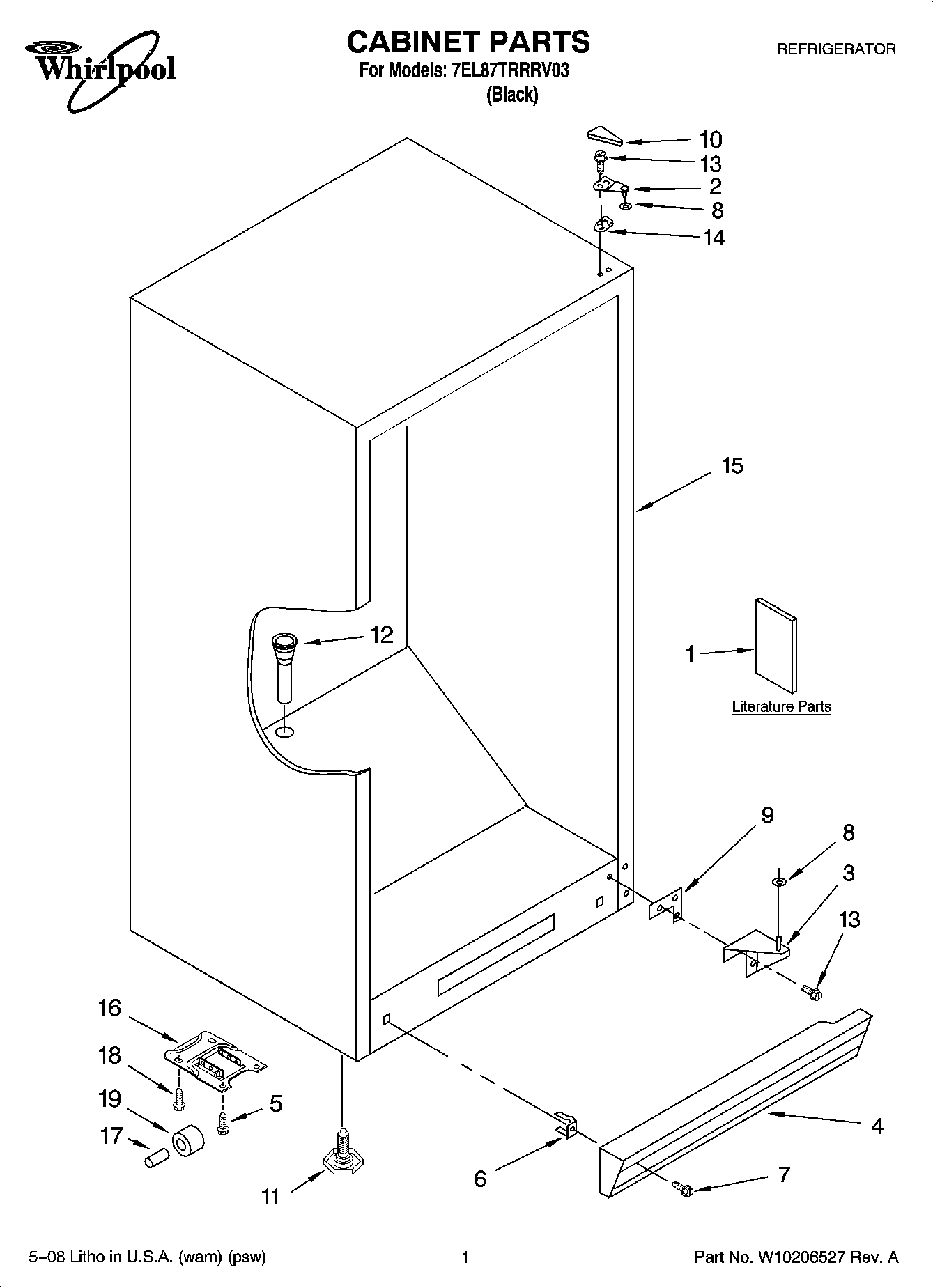

7EL87TRRRV03 01 – CABINET PARTS

Products

PositionProduct
1Energy Guide/Tag
1Owners Manual
28210251 Whirlpool Refrigerator Door Hinge
38210235 Whirlpool Refrigerator Door Hinge
4Grille (Includes 6 & 7) (Black)
5WP3-24838-048 Whirlpool Refrigerator Screw
6Clip, Grille
7Screw
8W10851331 Whirlpool Refrigerator Washer
10Hinge Cover (Black)
11W11117769 Whirlpool Refrigerator Leveler
12Grommet, Drain
13WP8204624 Whirlpool Bolt
144390489 Whirlpool Refrigerator Shim
15Cabinet, (Not A Serviceable Part)
16Bracket, Roller
17Axle
18SCREW
193-60315-001 Whirlpool Refrigerator CAB Roller
