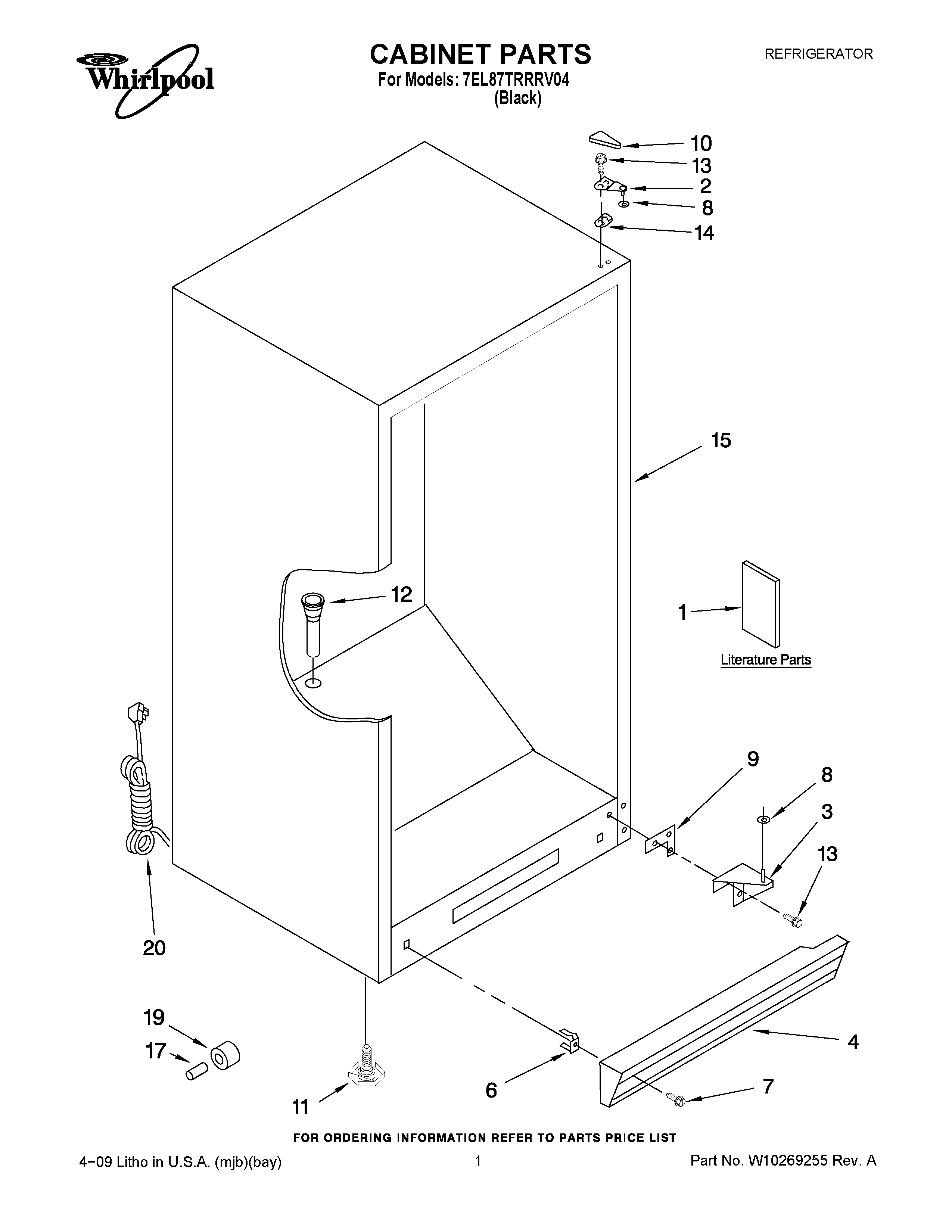

7EL87TRRRV04 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide/Tag
1	Owners Manual
2	8210251 Whirlpool Refrigerator Door Hinge
3	8210235 Whirlpool Refrigerator Door Hinge
4	Grille (Includes 6 & 7) (Black)
6	Clip, Grille
7	Screw
8	W10851331 Whirlpool Refrigerator Washer
10	Hinge Cover (Black)
11	W11117769 Whirlpool Refrigerator Leveler
12	Grommet, Drain
13	Screw
14	4390489 Whirlpool Refrigerator Shim
15	Cabinet, (Not A Serviceable Part)
17	Axle
19	3-60315-001 Whirlpool Refrigerator CAB Roller
20	Power Cord
