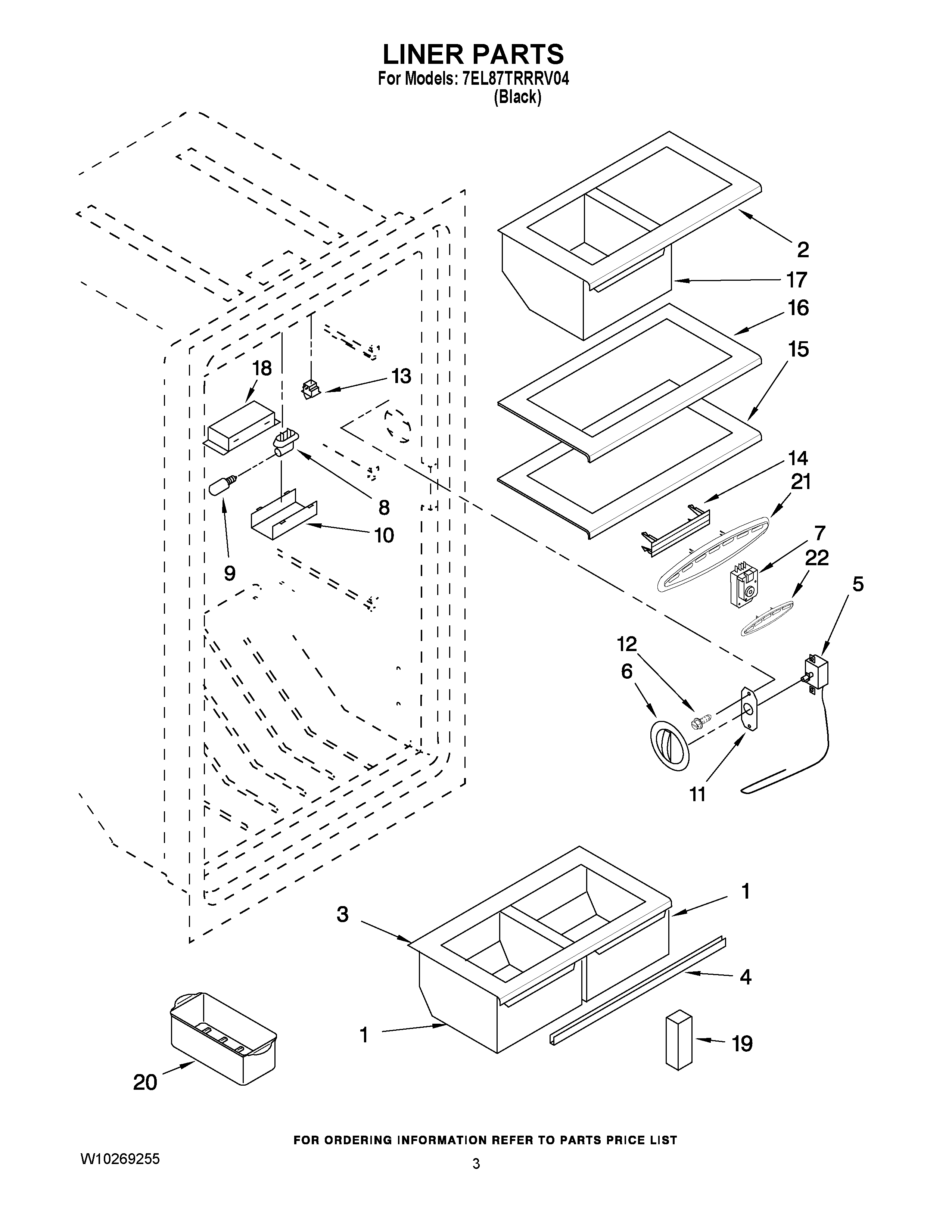

7EL87TRRRV04 02 – LINER PARTS

Products

Position	Product
1	Pan, Crisper
2	Shelf, Crisper (Upper)
3	Shelf, Crisper (Lower)
4	2-33516-003 Whirlpool Refrigerator Center Rail
5	WPW10424991 Whirlpool Refrigerator Thermostat
6	Control Knob
7	WP3-81329 Whirlpool Refrigerator Defrost Timer
8	WP3-82393-001 Whirlpool Refrigerator Socket
9	RANGE ONLY 40W 120V APPL BULB
10	Light Shield
11	1-81154 Whirlpool Plate
12	WPW10068250 Whirlpool Dishwasher Screw
13	W11384469 Whirlpool Door Switch
14	WP3-80414-103 Whirlpool Refrigerator Vent Plug
15	Shelf, Middle
16	Shelf, Top
17	WP4-60040-004 Whirlpool Crisper Drawer Upper
18	Bracket, Light
19	3-34715-004 Whirlpool Refrigerator Support
20	W10136387A Whirlpool Refrigerator Egg Container
21	4-82556-002 Whirlpool Refrigerator Diffuser
22	4-82573-002 Whirlpool Diffuser
