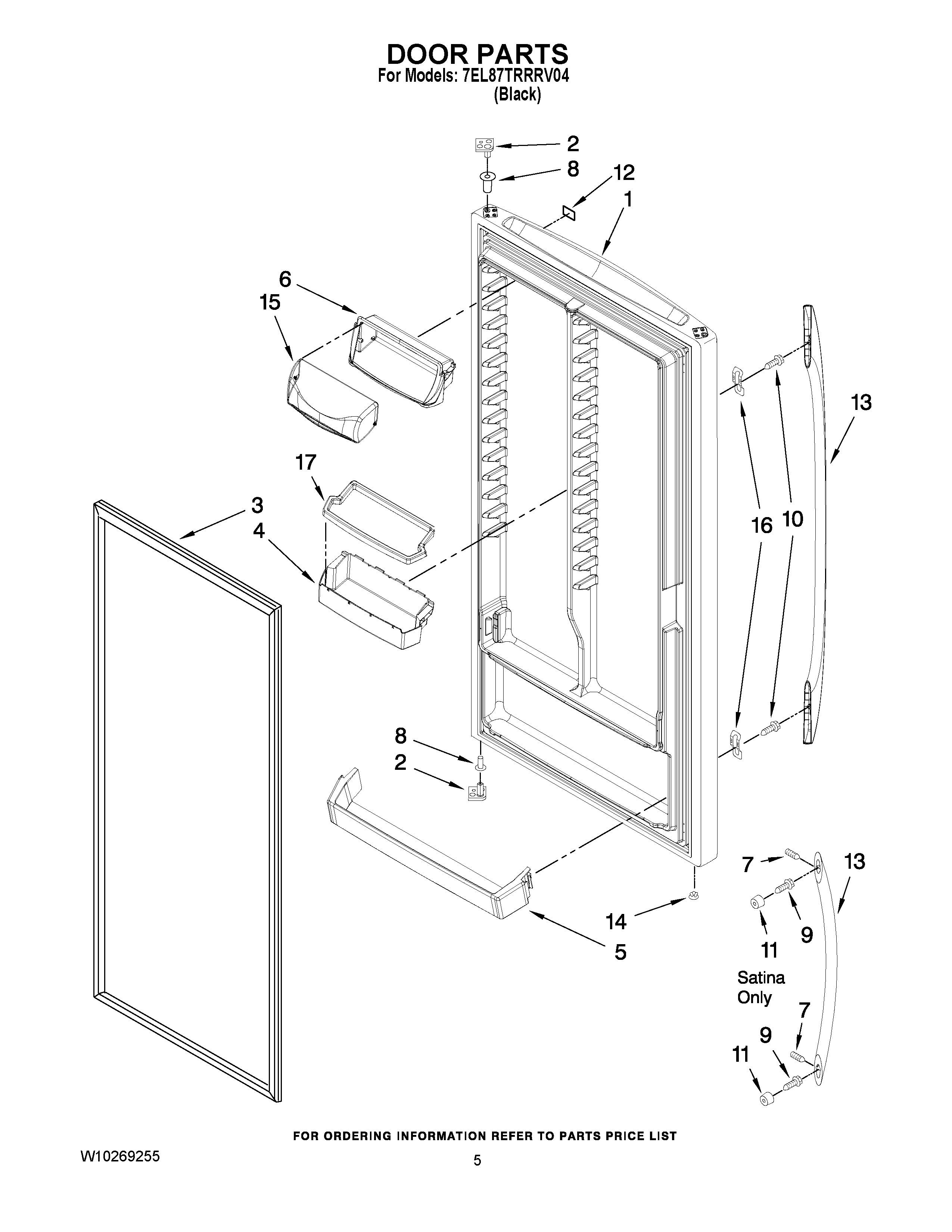

7EL87TRRRV04 03 – DOOR PARTS

Products

PositionProduct
1Exterior Door (Includes Interior Liner) (Satina)
2STOP, DOOR (TOP) (WHITE)
3GASKET-DOR (DW1)
4Bin, Door
54-65449-001 Whirlpool Refrigerator Door Trim
6WP4-65430-001 Whirlpool Refrigerator Housing
7Screw
8Bushing (Black)
9WP488163 Whirlpool Refrigerator Screw
10WP489491 Whirlpool Refrigerator Screw
11WPW10170540 Whirlpool Screw
12WP2213265 Whirlpool Refrigerator Nameplate
13Handle (Includes Item 8) (Brushed Aluminum)
143-24898-007 Whirlpool Refrigerator Vent Plug
15WP4-65429-001 Whirlpool Refrigerator Door Compressor
16WP2255411 Whirlpool Refrigerator Clip
17Cover, Bin
