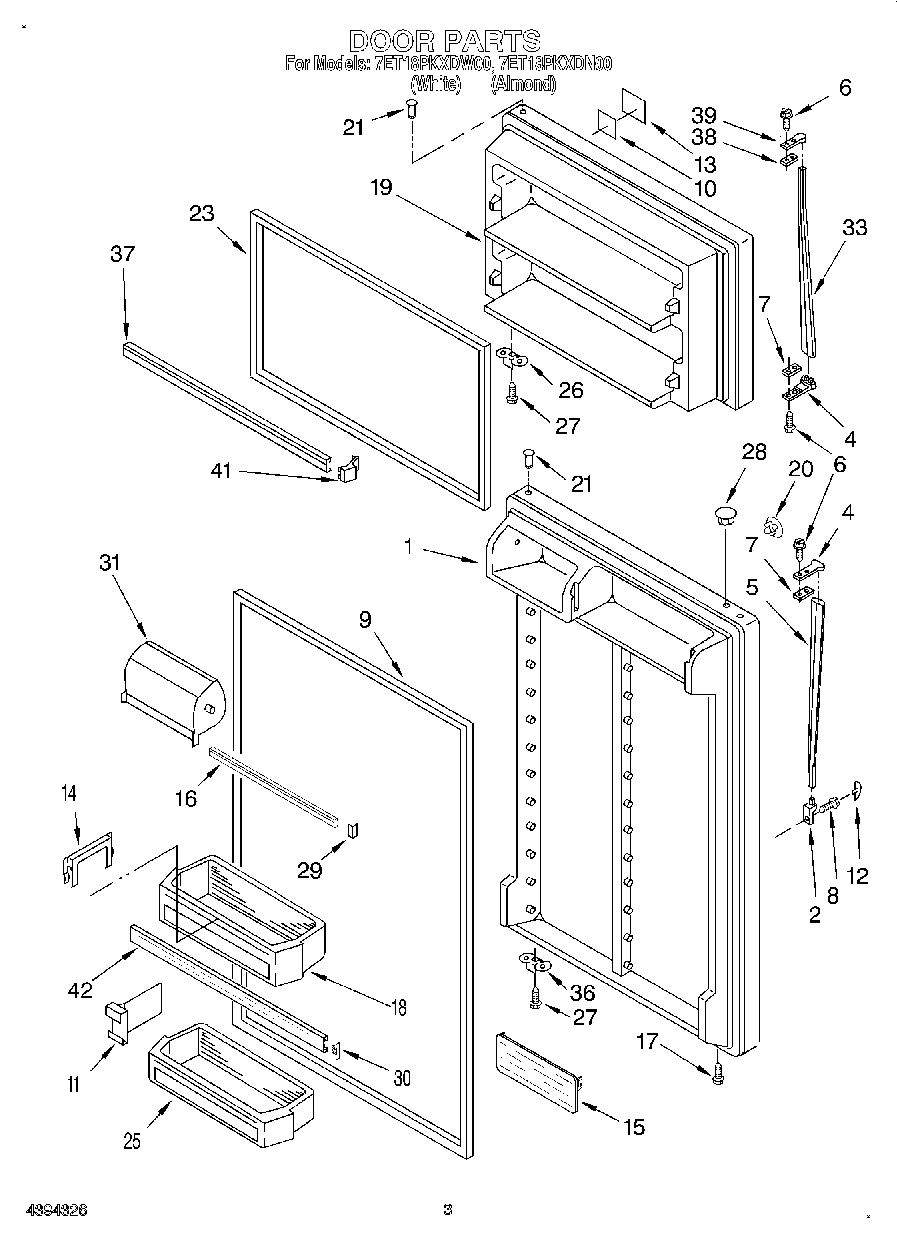

7ET18PKXDN00 02 – DOOR

Products

Position	Product
1	Refrigerator Door Panel (Almond)
1	Refrigerator Door Panel (White)
2	819342 Whirlpool Refrigerator Endcap Kit
5	Handle, Center (Almond)
5	WP2162555 Whirlpool Refrigerator White Door Handle
6	WP488920 Whirlpool Refrigerator Screw
7	Spa
8	WP488729 Whirlpool Refrigerator Door Screw
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
10	Tape Strip
11	Divider (3)
12	Cover, Screw (White)
12	Cover, Screw (Almond)
13	Nameplate (White Model)
13	Nameplate (Almond Model)
14	Retainer, Bottle
15	WP2188234 Whirlpool Shelf
16	Trim, Door Shelf
17	WP8281206 Whirlpool Refrigerator Screw
18	Door Bin, Wide (2)
19	Freezer Door (Includes Illus. 4, 17 & 18) (White)
19	Freezer Door (Includes No.22 & No.23) (Almond)
20	Hole Plug, Handle (Almond)
20	WP2189000 Whirlpool Refrigerator Handle Plug
21	WP2183003 Whirlpool Thimble
23	2159327 Whirlpool Refrigerator Door Gasket
25	Door Bin, Narrow (2)
26	Bracket, Door Stop
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28	Hole Plug (Almond)
29	ENDCAP-TRM
30	Plug, Trim (2)
31	WP2218113 Whirlpool Dairy Door
33	Handle, F.C. (Almond)
36	Bracket, Door Stop
37	Trim-Door (2)
38	Shim, Handle
41	ENDCAP
42	Trim, Door
