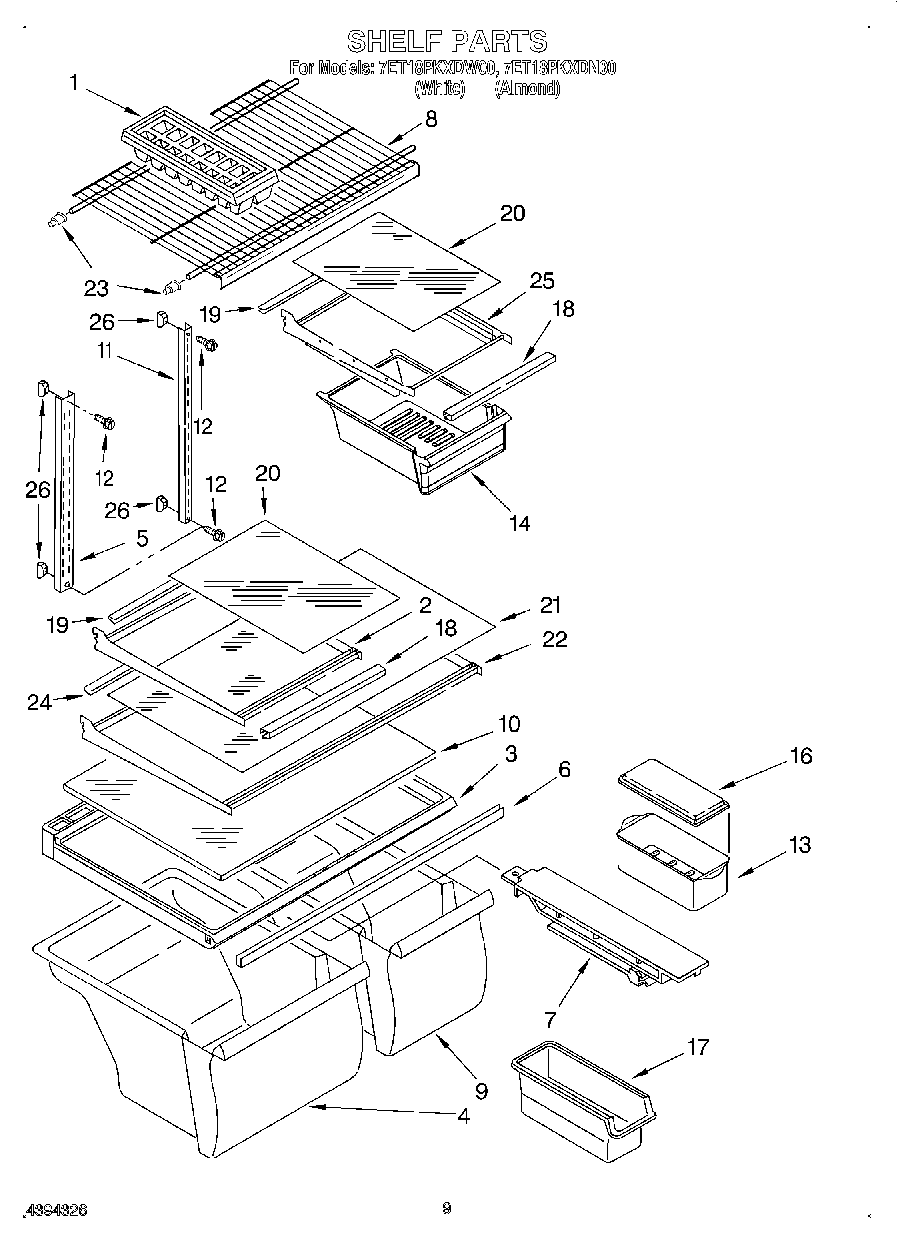

7ET18PKXDN00 05 – SHELF, LIT/OPTIONAL

7ET18PKXDN00 05 – SHELF, LIT/OPTIONAL

Written by

in

7ET18PKXDN00 05 – SHELF, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2193016
Torx Key
Literature Parts (Do-It-Yourself Manual Ref./Frz.)
WPL LIT677971
WPL LIT2180435
WPL LIT2172667
1WP841180A Whirlpool Microwave Glass Turntable Tray
2Shelf, Cantilever
3WP2314548 Whirlpool Refrigerator Cover
4W10854037 Whirlpool Refrigerator Crisper Pan
5Shelf, Ladder (2)
6WP2172748 Whirlpool Drawer Support
7WP2163835 Whirlpool Track Assembly
8WP2176275 Whirlpool Refrigerator Wire Shelf
9W10856580 Whirlpool Crisper Pan
10WP2169921 Whirlpool Refrigerator Glass Shelf
11Shelf, Ladder Center
12W11544659 Whirlpool Refrigerator Screw
13W10136387A Whirlpool Refrigerator Egg Container
14PAN-MEAT
16Cover
17WP982704 Whirlpool Refrigerator Container
18Trim, Shelf
19Retainer, Glass
20Glass, Meat Cover
21Glass, Full Shelf
22Shelf, Full Cantilever
232163762 Whirlpool Refrigerator Cup Assembly
24Trim, Shelf Rear
25Pan Shelf, Cantilever
26Almond (Uncut)
26Door Reversal Instructions
26WP72107 Whirlpool Touchup
26799344 Whirlpool Refrigerator Paint
2672017 Whirlpool Appliance Touch-Up Paint White
26212643 Whirlpool Refrigerator Permagum Sealer
26350956 Whirlpool Spray Assembly
26350930 Whirlpool White Spray Paint
26350942 Whirlpool Spray Paint
26511873 Whirlpool Refrigerator Paint
26WPL 799832
26CEMENT, ALUMILASTIC (1 1/4 OZ.)
26TAPE, VINYL (3/4 X 108“)
26WP542638 Whirlpool Refrigerator Grease
26WP505587 Whirlpool Refrigerator Sealer
26285006 Whirlpool Spray
2672032 Whirlpool Touch Up Paint Black
26WP503695 Whirlpool Refrigerator Sealer
26876370 Whirlpool Refrigerator Insulation
26WPL 876029
26833938 Whirlpool Refrigerator Terminal
26520965 Whirlpool Refrigerator Support
26606755 Whirlpool Refrigerator Bag
26WPL 799833
