7ET18PKXDN01 05 – SHELF, LIT/OPTIONAL

7ET18PKXDN01 05 – SHELF, LIT/OPTIONAL

Written by

in

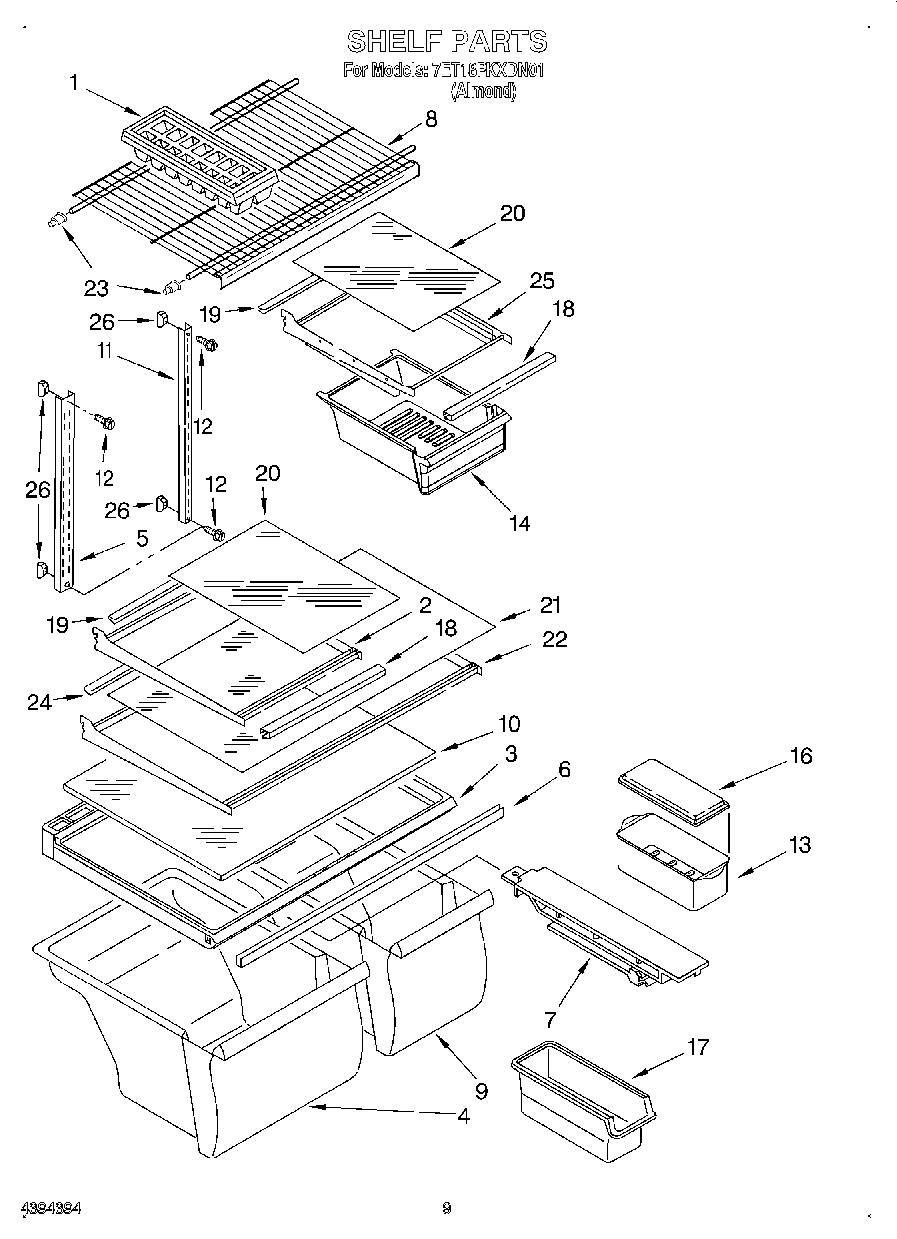

7ET18PKXDN01 05 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2193016
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	Torx Key
	WPL LIT677971
	WPL LIT2193448
	WPL LIT2193088
1	WP841180A Whirlpool Microwave Glass Turntable Tray
2	Shelf, Cantilever
3	WP2314548 Whirlpool Refrigerator Cover
4	W10854037 Whirlpool Refrigerator Crisper Pan
5	Shelf, Ladder Center
6	WP2172748 Whirlpool Drawer Support
7	WP2163835 Whirlpool Track Assembly
8	WP2176275 Whirlpool Refrigerator Wire Shelf
9	W10856580 Whirlpool Crisper Pan
10	WP2169921 Whirlpool Refrigerator Glass Shelf
11	Shelf, Ladder (2)
12	W11544659 Whirlpool Refrigerator Screw
13	W10136387A Whirlpool Refrigerator Egg Container
14	PAN-MEAT
16	Cover
17	WP982704 Whirlpool Refrigerator Container
18	Trim, Shelf
19	Retainer, Glass
20	Glass, Meat Cover
21	Glass, Full Shelf
22	Shelf, Full Cantilever
23	2163762 Whirlpool Refrigerator Cup Assembly
24	Trim, Shelf Rear
25	Pan Shelf, Cantilever
26	511873 Whirlpool Refrigerator Paint
26	WP505587 Whirlpool Refrigerator Sealer
26	Door Reversal Instructions
26	WPL 799833
26	WPL 799832
26	212643 Whirlpool Refrigerator Permagum Sealer
26	CEMENT, ALUMILASTIC (1 1/4 OZ.)
26	TAPE, VINYL (3/4 X 108“)
26	350956 Whirlpool Spray Assembly
26	350930 Whirlpool White Spray Paint
26	72017 Whirlpool Appliance Touch-Up Paint White
26	799344 Whirlpool Refrigerator Paint
26	285006 Whirlpool Spray
26	72032 Whirlpool Touch Up Paint Black
26	350942 Whirlpool Spray Paint
26	Almond (Uncut)
26	WPL 876029
26	606755 Whirlpool Refrigerator Bag
26	833938 Whirlpool Refrigerator Terminal
26	520965 Whirlpool Refrigerator Support
26	876370 Whirlpool Refrigerator Insulation
26	WP72107 Whirlpool Touchup
26	WP503695 Whirlpool Refrigerator Sealer
26	WP542638 Whirlpool Refrigerator Grease
