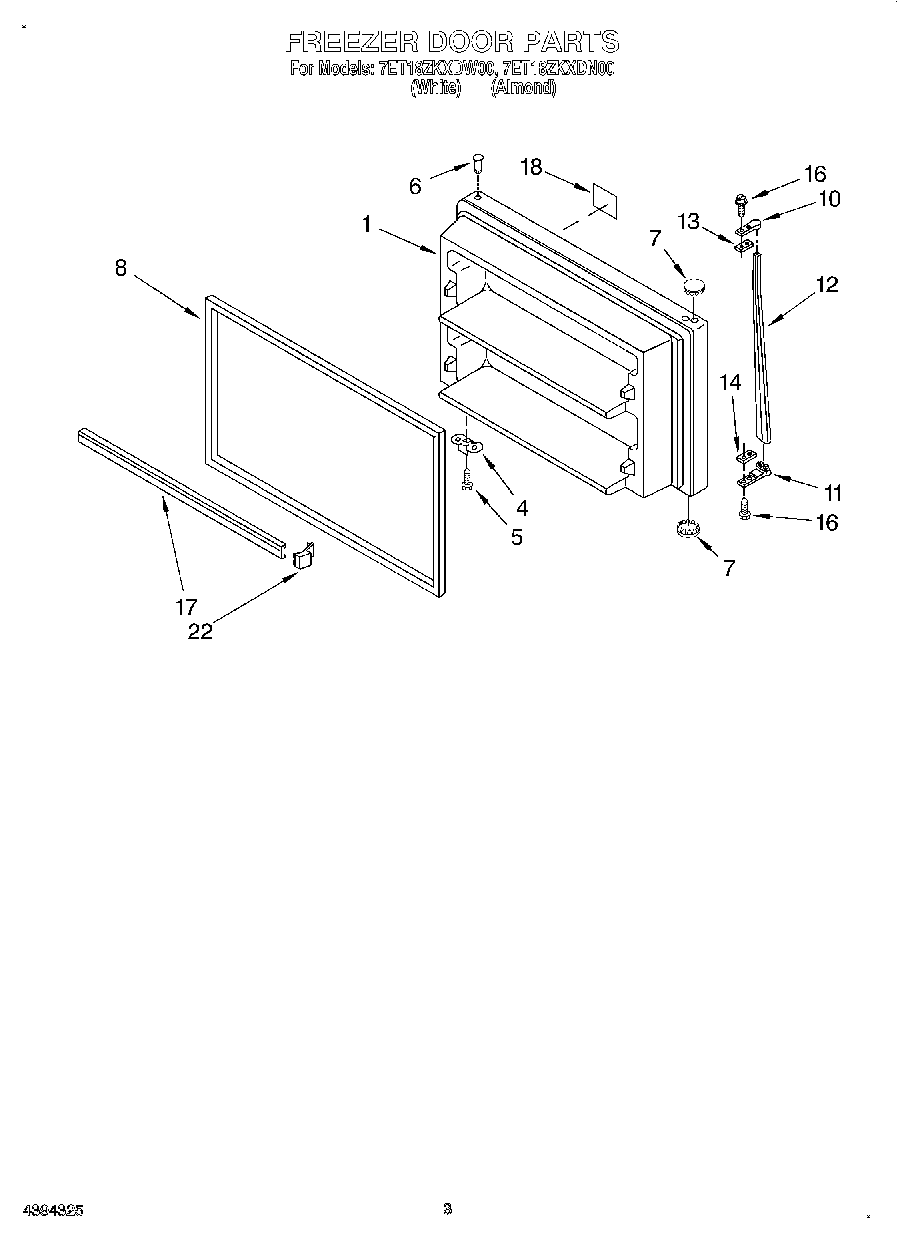

7ET18ZKXDN00 02 – FREEZER DOOR

7ET18ZKXDN00 02 – FREEZER DOOR

Written by

in

7ET18ZKXDN00 02 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Illus. 4, 17 & 18) (White)
1Freezer Door (Includes No.22 & No.23) (Almond)
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159327 Whirlpool Refrigerator Door Gasket
11819342 Whirlpool Refrigerator Endcap Kit
12Handle, F.C. (Almond)
12WP2162555 Whirlpool Refrigerator White Door Handle
13Shim, Handle
14Spa
16WP488920 Whirlpool Refrigerator Screw
17Trim-Door (2)
18Nameplate (White Model)
18Nameplate (Almond Model)
22ENDCAP
