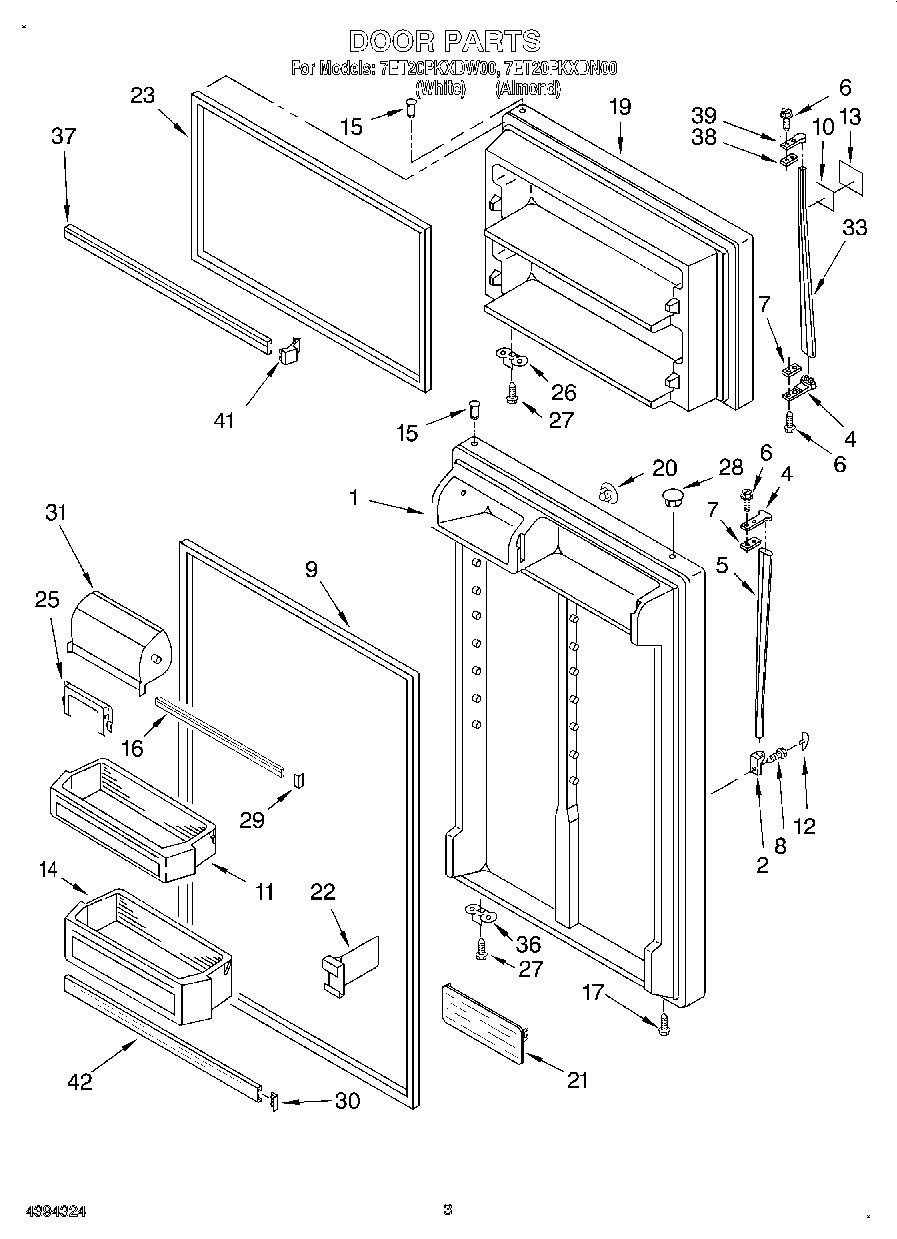

7ET20PKXDN00 02 – DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 9) (Almond)
1	W11023679 Whirlpool Refrigerator Door Assembly
2	819342 Whirlpool Refrigerator Endcap Kit
5	WP2162555 Whirlpool Refrigerator White Door Handle
5	Handle, Center (Almond)
6	WP488920 Whirlpool Refrigerator Screw
7	Spa
8	WP488729 Whirlpool Refrigerator Door Screw
9	2159061 Whirlpool Refrigerator Door Gasket
10	Tape Strip
11	Door Bin, Narrow
12	Cover, Screw (White)
12	Cover, Screw (Almond)
13	Nameplate (White Model)
13	Nameplate (Almond Model)
14	Door Bin, Wide
15	WP2183003 Whirlpool Thimble
16	TRIM-DOOR
17	WP8281206 Whirlpool Refrigerator Screw
19	Freezer Door (Includes No.23 & No.32) (Almond)
20	Hole Plug, Handle (Almond)
20	WP2189000 Whirlpool Refrigerator Handle Plug
21	WP2188236 Whirlpool Refrigerator Shelf Door
22	Divider (3)
23	WHITE DOOR GASKET-FIP
25	Retainer, Bottle
26	Bracket, Door Stop
27	WP488921 Whirlpool Refrigerator Screw
28	Hole Plug (Almond)
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	Plug, Trim (2)
31	WP2218118 Whirlpool Refrigerator Door Compressor
33	Handle, F.C. (Almond)
36	Bracket, Door Stop
37	Trim-Door (2)
38	Shim, Handle
41	ENDCAP
42	Trim, Door
