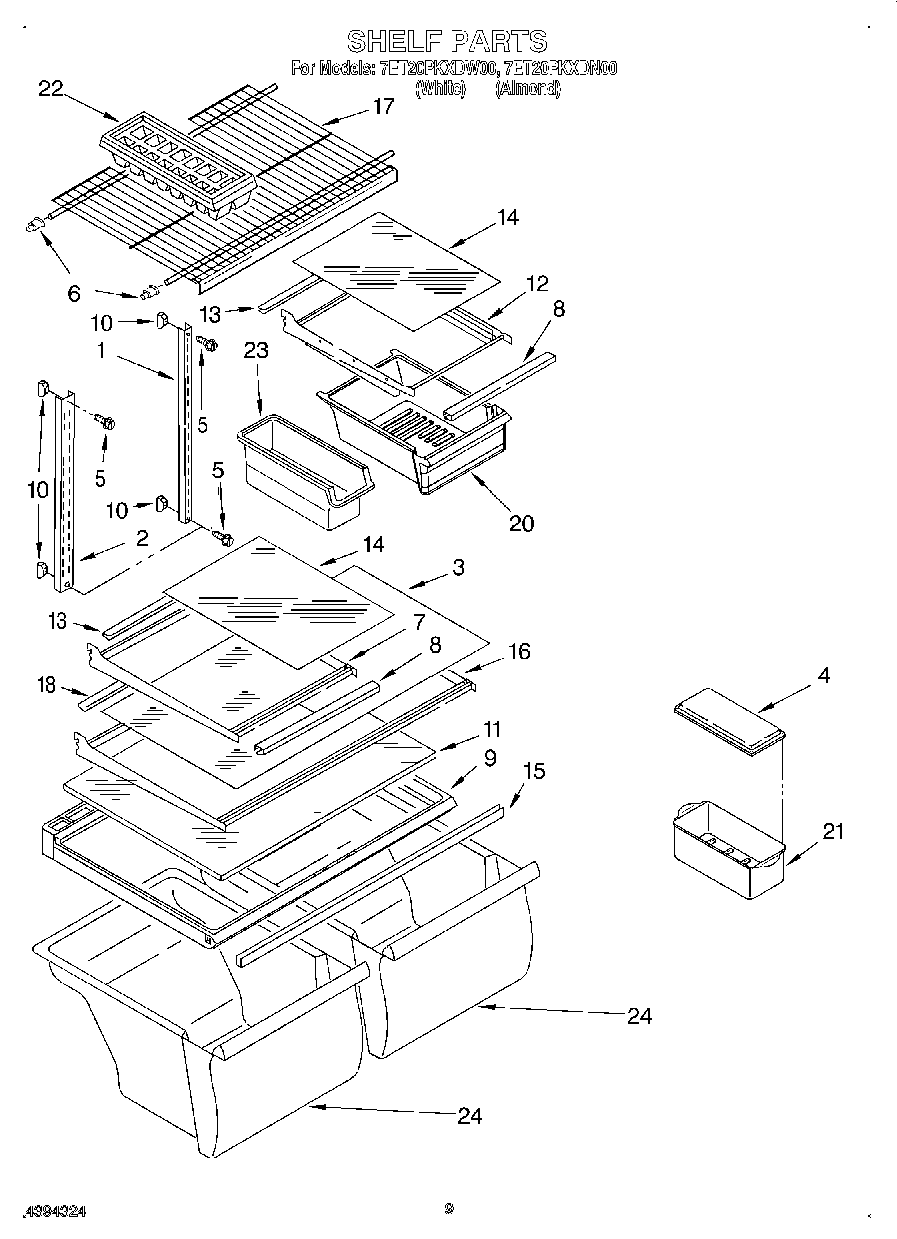

7ET20PKXDN00 05 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2182566
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	Torx Key
	WPL LIT677971
	WPL LIT2172667
	WPL LIT2193016
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	Glass, Full Shelf
4	Cover
5	W11544659 Whirlpool Refrigerator Screw
6	2163762 Whirlpool Refrigerator Cup Assembly
7	Shelf, Cantilever
8	Trim, Shelf
9	WP2314549 Whirlpool Refrigerator Cover
10	520965 Whirlpool Refrigerator Support
11	WP2176225 Whirlpool Glass Shelf
12	Pan Shelf, Cantilever
13	Retainer, Glass
14	Glass, Shelf
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Full Cantilever
17	Shelf, Freezer
18	Trim, Shelf Rear
20	Pan, Meat
21	W10136387A Whirlpool Refrigerator Egg Container
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	WP982704 Whirlpool Refrigerator Container
24	350942 Whirlpool Spray Paint
24	Almond (Uncut)
24	WP72107 Whirlpool Touchup
24	799344 Whirlpool Refrigerator Paint
24	212643 Whirlpool Refrigerator Permagum Sealer
24	350930 Whirlpool White Spray Paint
24	72017 Whirlpool Appliance Touch-Up Paint White
24	350956 Whirlpool Spray Assembly
24	511873 Whirlpool Refrigerator Paint
24	606755 Whirlpool Refrigerator Bag
24	833938 Whirlpool Refrigerator Terminal
24	WPL 799832
24	CEMENT, ALUMILASTIC (1 1/4 OZ.)
24	W10854037 Whirlpool Refrigerator Crisper Pan
24	TAPE, VINYL (3/4 X 108“)
24	285006 Whirlpool Spray
24	72032 Whirlpool Touch Up Paint Black
24	WP542638 Whirlpool Refrigerator Grease
24	WP505587 Whirlpool Refrigerator Sealer
24	WP503695 Whirlpool Refrigerator Sealer
24	WPL 799833
24	876370 Whirlpool Refrigerator Insulation
24	Door Reversal Instructions
24	WPL 876029
