7ET20PKXDN01 01 – CABINET

7ET20PKXDN01 01 – CABINET

Written by

in

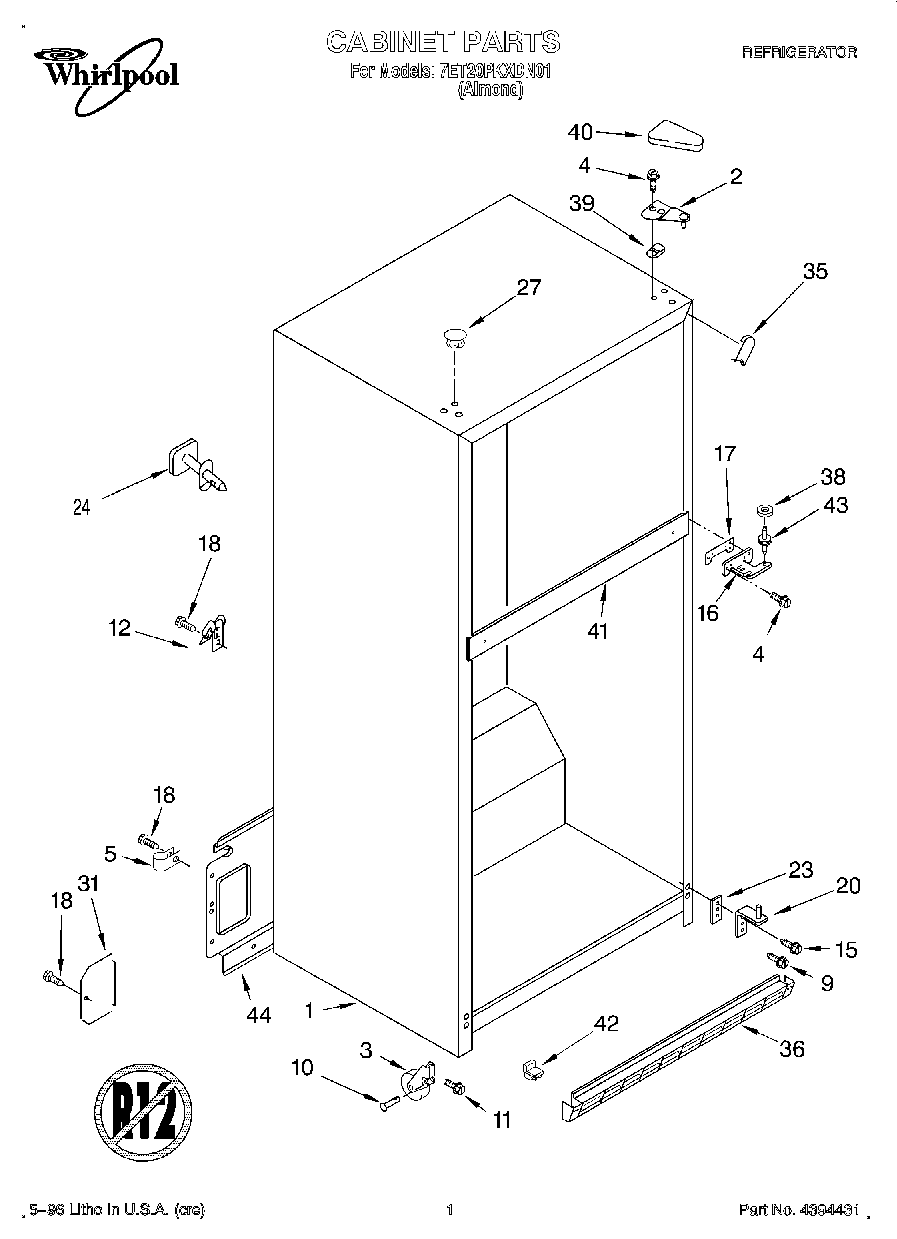

7ET20PKXDN01 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2WP2189412 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP999367 Whirlpool Refrigerator Screw
5WP488366 Whirlpool Refrigerator Clamp
9Screw
10W11594405 Whirlpool Axle
11Screw
12549193 Whirlpool Refrigerator Power Clamp
15Screw
17Shim, Hinge Center
18WP489464 Whirlpool Refrigerator Screw
20Hinge, Butt
23Shim, Bottom Hinge
24Fitting, Water Tube (Not Serviced)
27Hole Plug (6) (Almond)
31Cover, Water Valve
35Corner Filler (2) (Almond)
36Grille (Almond)
38WP487576 Whirlpool Washer
39Shim, Hinge Top
40Cover, Hinge (Almond)
41Rail Center (Not Serviced)
42Corner Filler, Grille (Almond)
43WP2254618 Whirlpool Center Door Hinge
44Cover, Unit
