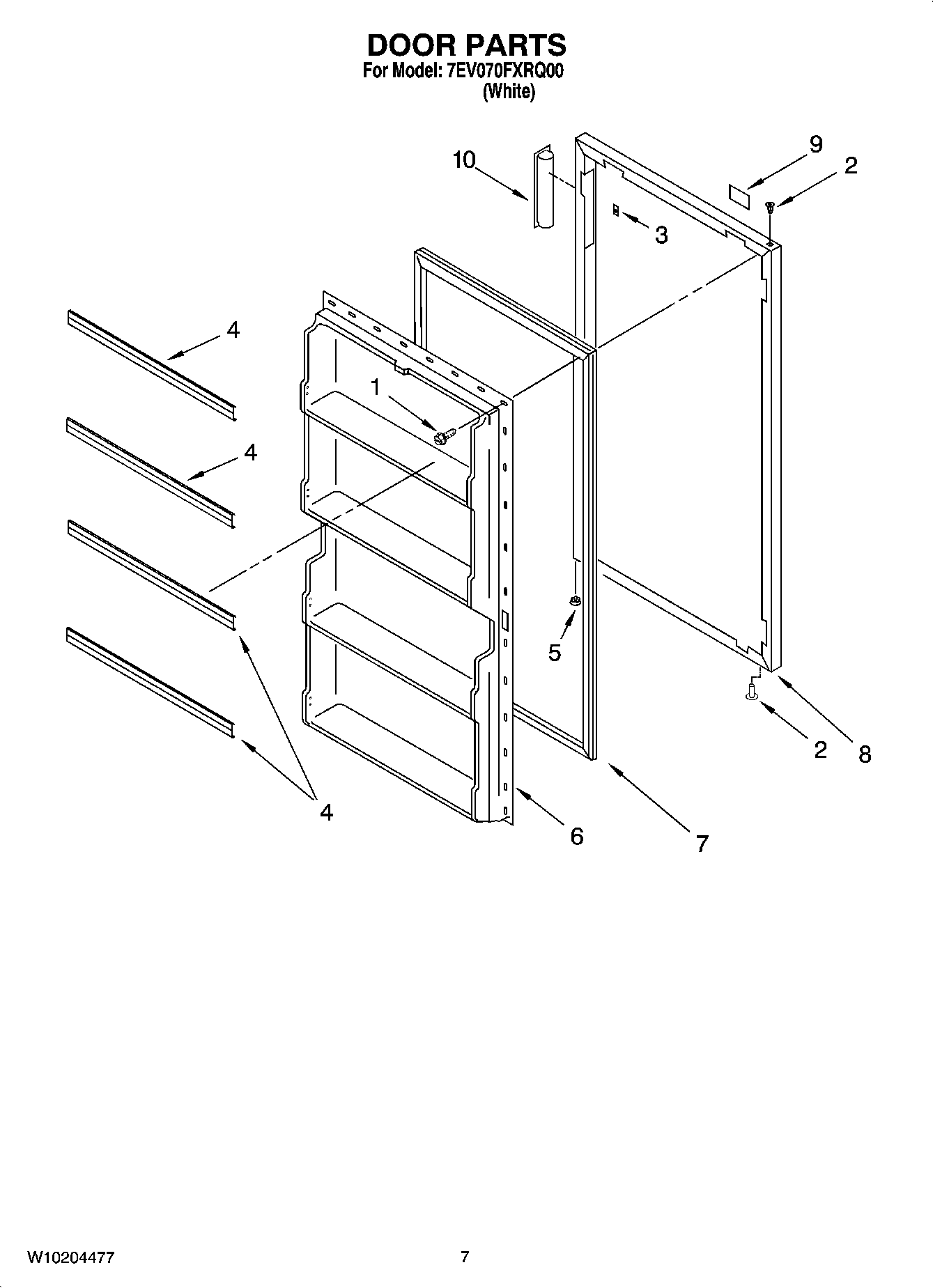

7EV070FXRQ00 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350956 Whirlpool Spray Assembly
	REFINISHING MATERIAL
	Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
	Customer Touch-Up Material
	Parts Not Illustrated and Optional Parts (Not Included)
	Enamel (Almond) (1 Qt. Uncut)
	Miscellaneous
	WP72107 Whirlpool Touchup
	TAPE, VINYL (3/4 X 108“)
	WP505587 Whirlpool Refrigerator Sealer
	212643 Whirlpool Refrigerator Permagum Sealer
	876370 Whirlpool Refrigerator Insulation
	WP503695 Whirlpool Refrigerator Sealer
1	4390598 Whirlpool Refrigerator Screw
2	4390731 Whirlpool Refrigerator Hinge Bushing
3	3-24059-024 Whirlpool Refrigerator Handle Clip
4	Rail, Door Shelf (4)
5	3-24898-007 Whirlpool Refrigerator Vent Plug
6	Door, Interior (Includes Item 1)
7	Gasket (White)
8	Door, Exterior
9	WP2213265 Whirlpool Refrigerator Nameplate
10	Handle
