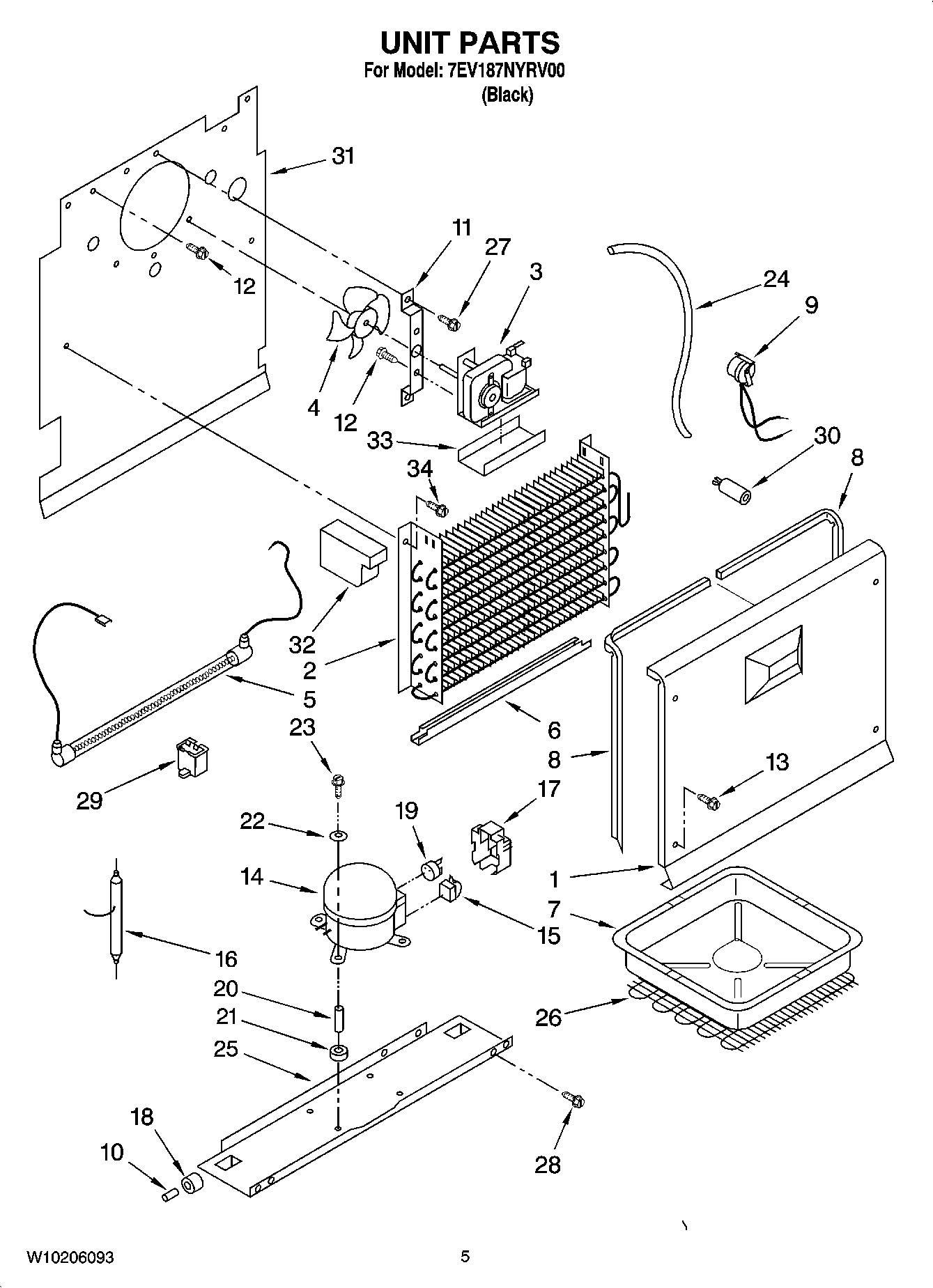

7EV187NYRV00 03 – UNIT PARTS

Products

Position	Product
1	Cover, Evaporator
2	WP4-81546 Whirlpool Refrigerator Evaporator
3	Fan Motor
4	BLADE-FAN
5	W11175809 Whirlpool Refrigerator Heater
6	Shield Heater
7	Drain Pan
8	4390663 Whirlpool Refrigerator Gasket
8	4390664 Whirlpool Refrigerator Gasket
9	WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10	Axle
11	2-80028-101 Whirlpool Refrigerator Motor Bracket
12	60001022 Whirlpool Oven Screw
13	WP3-24004-109 Whirlpool Refrigerator Screw
14	W10309994 Whirlpool Refrigerator Compressor
15	Relay
16	W10843121 Whirlpool Refrigerator Tube
17	4356777 Whirlpool Term Cover
18	Roller, Front
19	2-34286-021 Whirlpool Refrigerator Overload Relay
20	4356846 Whirlpool Refrigerator Sleeve
21	Grommet, Mounting Compressor
22	Washer
23	8210220 Whirlpool Bolt
24	Exchanger, Heat
25	Compressor Pan
26	CONDENSER
27	3-24898-007 Whirlpool Refrigerator Vent Plug
28	SCREW
29	3-35956-013 Whirlpool Refrigerator Capacitor
30	Grommet
31	Plate, Evaporator Mount
32	1-80252-101 Whirlpool Refrigerator Evaporator Block
33	4357128 Whirlpool Refrigerator Motor Bracket
34	WP489491 Whirlpool Refrigerator Screw
34	REFRIGERANT CHARGE 6.2 oz. (R-134A)
