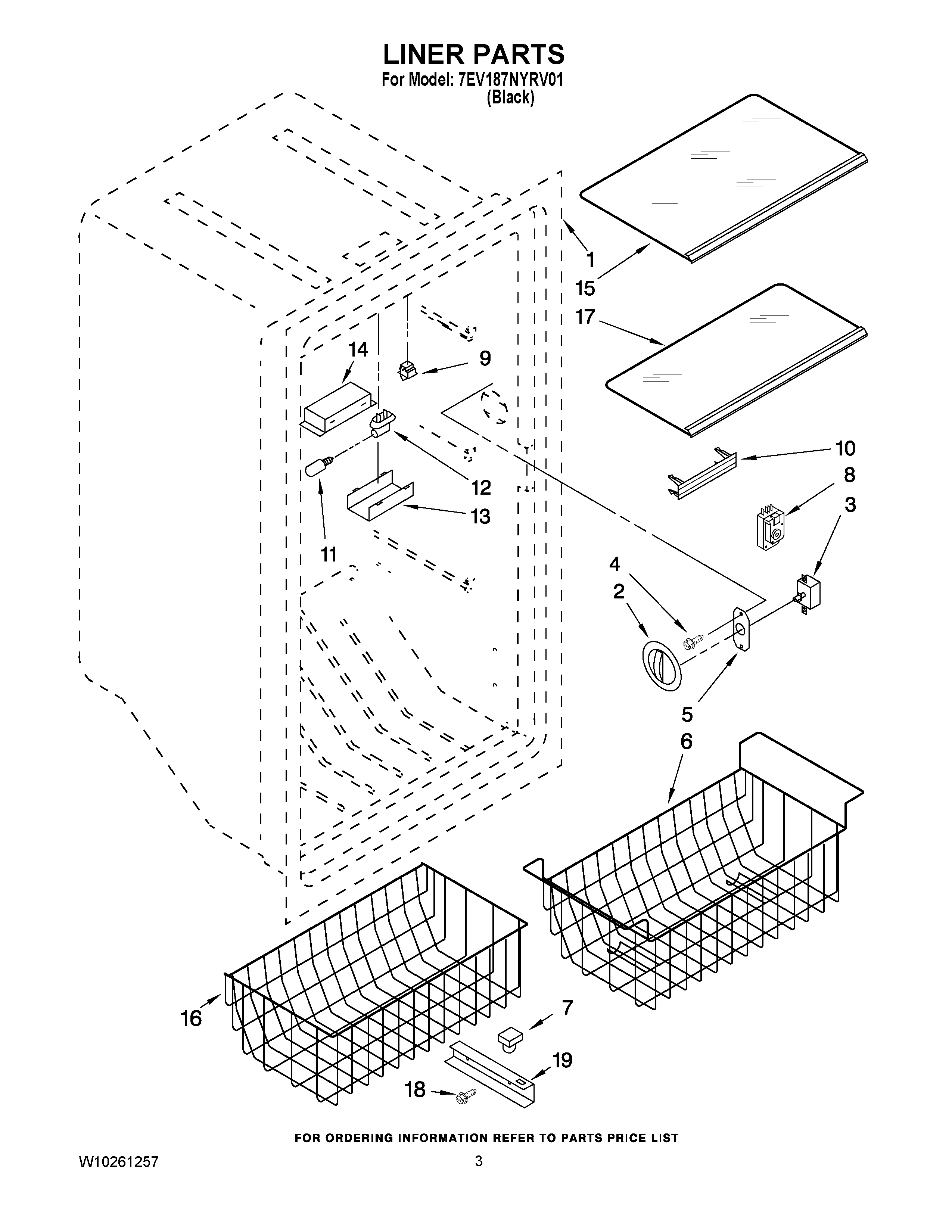

7EV187NYRV01 02 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Control Knob
3	WP4-83053-003 Whirlpool Refrigerator Thermostat
4	WPW10068250 Whirlpool Dishwasher Screw
5	Door Gasket
6	Basket
7	Stop, Basket
8	WP3-81329 Whirlpool Refrigerator Defrost Timer
9	W11384469 Whirlpool Door Switch
10	WP3-80414-103 Whirlpool Refrigerator Vent Plug
11	RANGE ONLY 40W 120V APPL BULB
12	WP3-82393-001 Whirlpool Refrigerator Socket
13	Light Shield
14	Bracket, Light
15	Shelf, Top
16	Basket, Middle
17	Shelf, Middle
18	WP489491 Whirlpool Refrigerator Screw
18	Screw (1 1/2“)
19	Rail, Basket (Left Side)
19	4-60222-002 Whirlpool Refrigerator Rail
