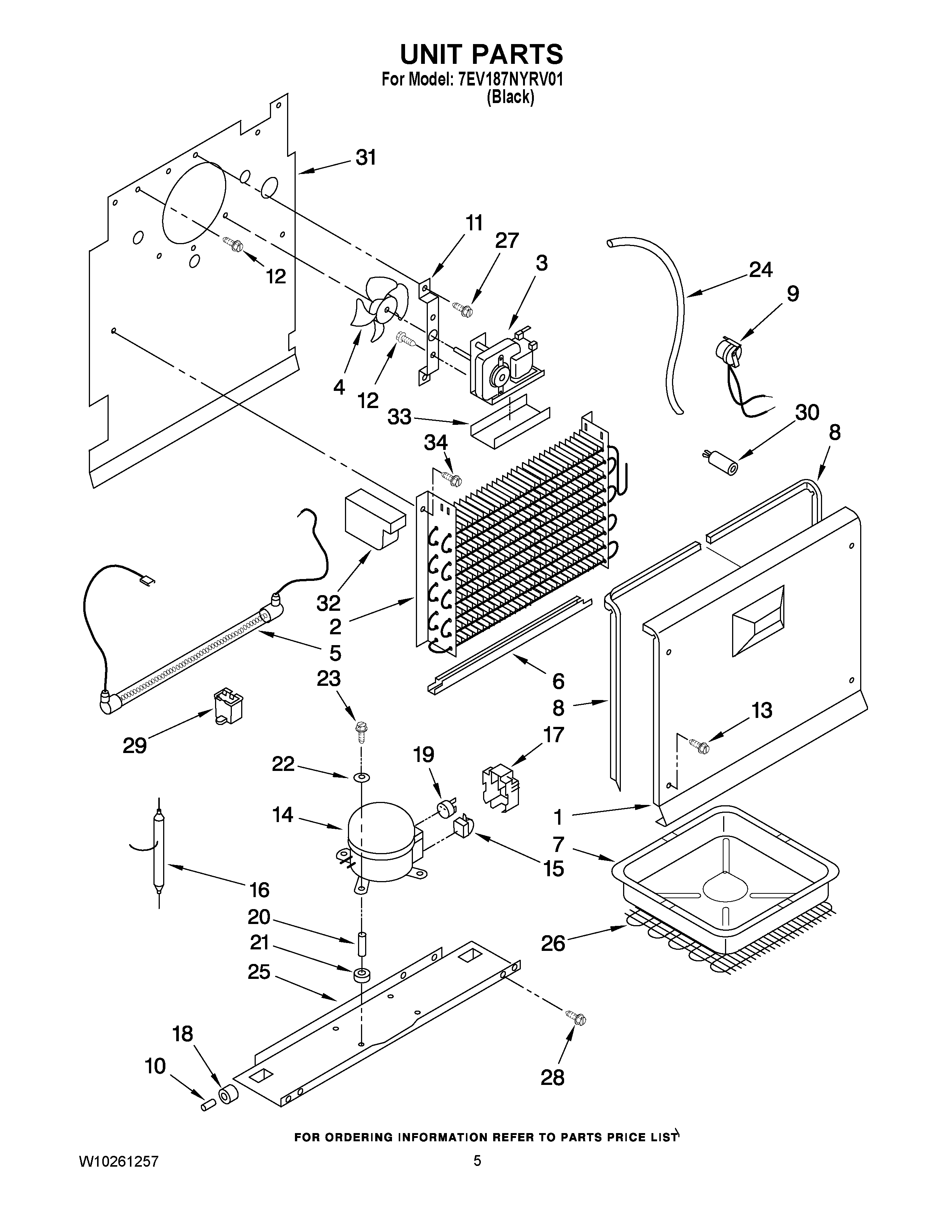

7EV187NYRV01 03 – UNIT PARTS

Products

PositionProduct
NIREFRIGERANT CHARGE 6.2 oz. (R-134A)
1Cover, Evaporator
2WP4-81546 Whirlpool Refrigerator Evaporator
3Fan Motor
4BLADE-FAN
5W11175809 Whirlpool Refrigerator Heater
6Shield, Heater
7WP4390675 Whirlpool Refrigerator Drip Pan
84390664 Whirlpool Refrigerator Gasket
84390663 Whirlpool Refrigerator Gasket
9WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10Axle
112-80028-101 Whirlpool Refrigerator Motor Bracket
1260001022 Whirlpool Oven Screw
13WP3-24004-109 Whirlpool Refrigerator Screw
14W10309994 Whirlpool Refrigerator Compressor
15Relay
16W10843121 Whirlpool Refrigerator Tube
174356777 Whirlpool Term Cover
18Roller, Front
192-34286-021 Whirlpool Refrigerator Overload Relay
204356846 Whirlpool Refrigerator Sleeve
21Grommet, Mounting Compressor
22Washer
238210220 Whirlpool Bolt
24Exchanger, Heat
25Compressor Pan
26W10451951 Whirlpool Refrigerator Condenser
273-24898-007 Whirlpool Refrigerator Vent Plug
28SCREW
293-35956-013 Whirlpool Refrigerator Capacitor
30Grommet
31Plate, Evaporator Mount
321-80252-101 Whirlpool Refrigerator Evaporator Block
334357128 Whirlpool Refrigerator Motor Bracket
34WP489491 Whirlpool Refrigerator Screw
