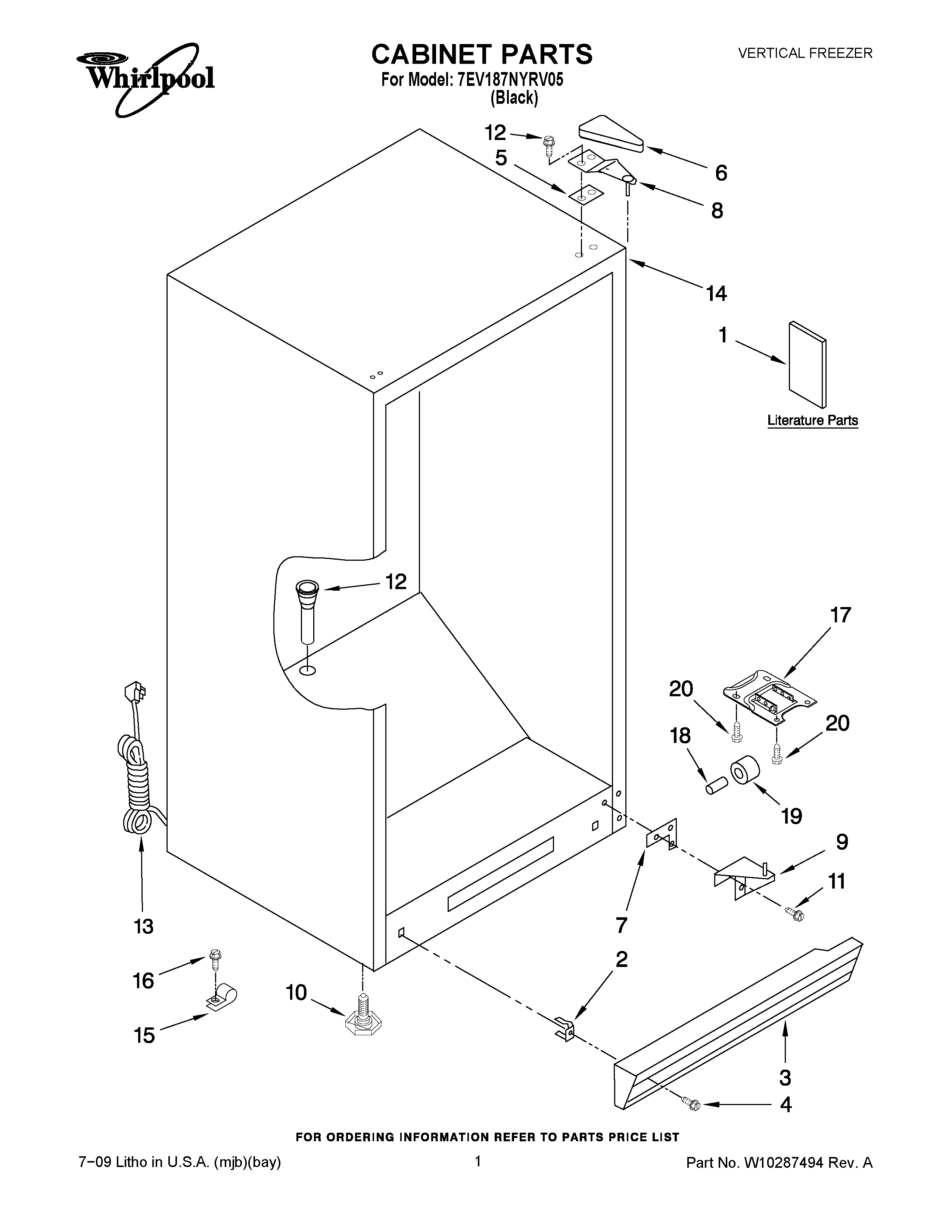

7EV187NYRV05 01 – CABINET PARTS

Products

Position	Product
1	Energy Label/Tag
1	Owners Manual
2	1-80247-101 Whirlpool Refrigerator Clip
3	Grille (Includes 6 & 7) (Black)
4	Screw (Black)
6	Hinge Cover (Black)
7	4390489 Whirlpool Refrigerator Shim
8	8210251 Whirlpool Refrigerator Door Hinge
9	8210235 Whirlpool Refrigerator Door Hinge
10	W11117769 Whirlpool Refrigerator Leveler
11	Screw
12	Grommet, Drain
13	CORD, POWER (W/WIRING HARNESS)
14	CABINET (NOT A SERVICEABLE PART)
15	Drain Hose
16	SCREW
17	Bracket, Roller
18	Axle
19	3-60315-001 Whirlpool Refrigerator CAB Roller
20	WP3-24838-048 Whirlpool Refrigerator Screw
